5TR31TDS

Order No.: 5TR31TDS
Remember articleRemember article

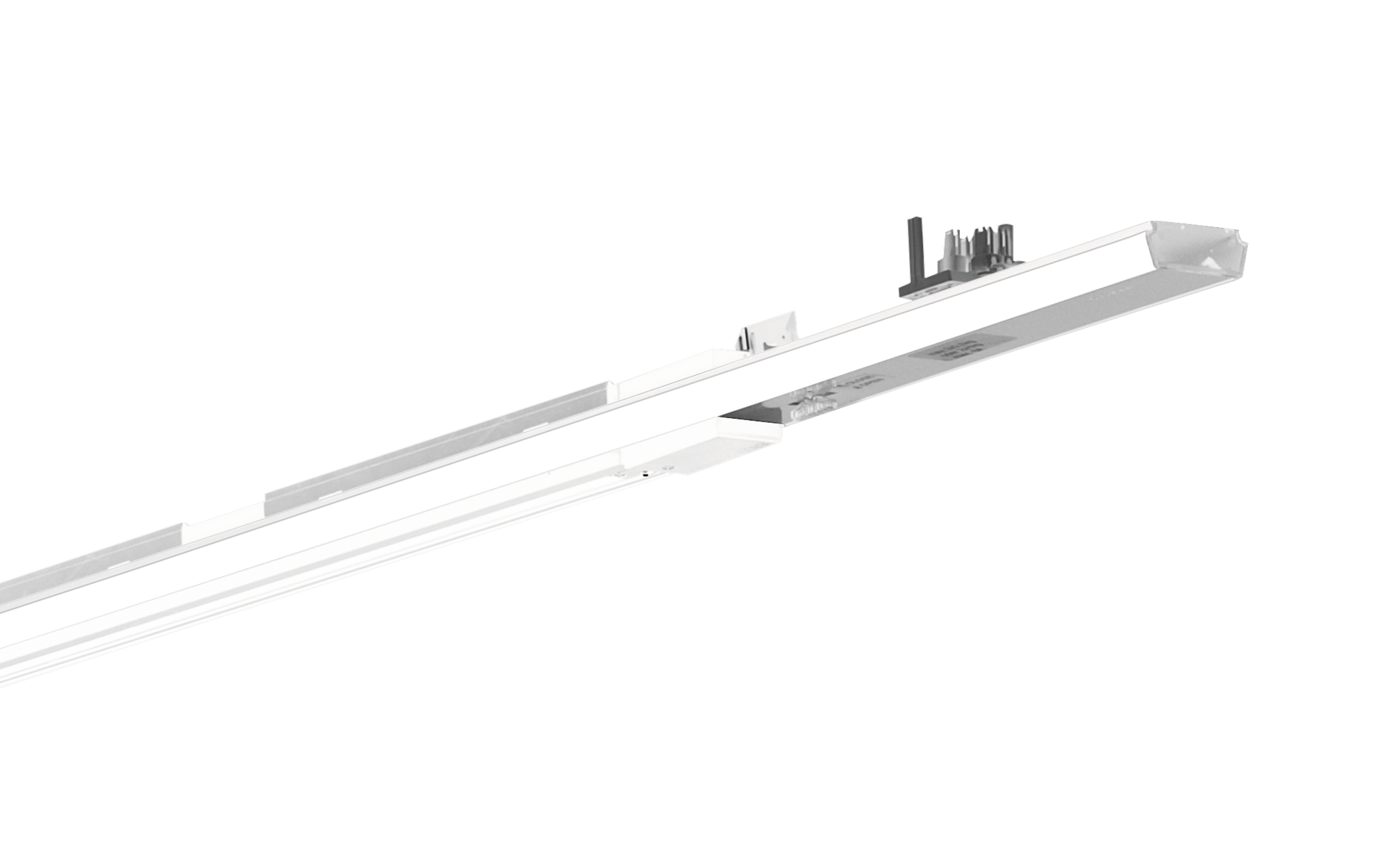

Article track adapter insert
Product name Modario
Protection rating for IP20 protection rating
Weight 1.5kg

Modario, track adapter insert, control gear: DALI, with plug, 5-pole, with phase selection, for trunking rail, 10-core, mains connection: 230/400V, track adapter insert, of sheet steel, coil coated, pure white, 4x system unit, max. weight load 5kg, tool-free rapid mounting of luminaire inserts to trunking rail with aid of plastic-coated metal rotary catches, increased safety in case of fire, length: 1.196mm, width: 48mm, protection rating (complete): for IP20 protection rating, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type track adapter insert
Product name Modario
Order No. 5TR31TDS

Lamps

Supplement max. current consumption 6A

Operating device

Control DALI

Certificates, Standards

Protection rating for IP20 protection rating
Insulation class insulation class I (protective earthing)
Certification, designation CE

Material, Colour

track adapter insert sheet steel, coil coated, pure white, 4x system unit, max. weight load 5kg

Electrical connection

Connection plug, 5-pole, with phase selection, for trunking rail, 10-core
Nominal voltage 230/400V

Dimensions, Weight

System units 4x SE
Length 1196mm
Width 48mm
Weight 1.5kg

Product type
track adapter insert

Product name
Modario

Order No.
5TR31TDS

Supplement
max. current consumption 6A

Control
DALI

Protection rating
for IP20 protection rating

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

track adapter insert
sheet steel, coil coated, pure white, 4x system unit, max. weight load 5kg

Connection
plug, 5-pole, with phase selection, for trunking rail, 10-core

Nominal voltage
230/400V

System units
4x SE

Length
1196mm

Width
48mm

Weight
1.5kg
