5TR91AFTC

: 5TR91AFTC

Article feed-out
Product name Modario 31
Protection rating IP40
Weight 0.7kg

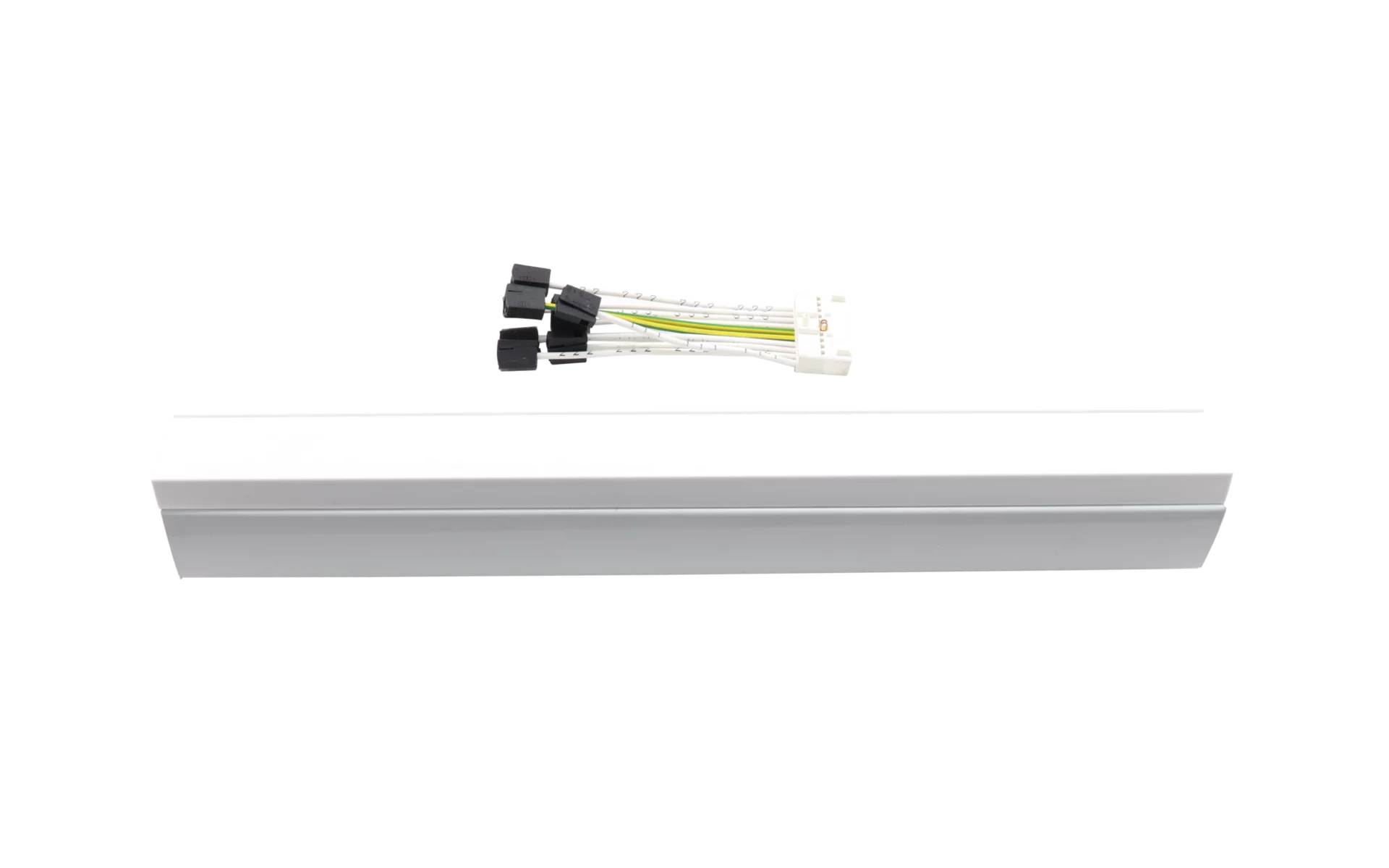

Modario 31 feed-out, pure white; wiring connection compartment of sheet steel, galvanised, coated, with cable entry for four cables, Ø 8.5..13mm; 1x blank cover of PC/ABS, white; connection via terminal, 10-pole, max. 2.5mm², internal wiring halogen-free; dimension: (LxWxH) = 449 x 58 x 43mm; IP40; insulation class: insulation class I (protective earthing); certification: CE, UKCA; packaging unit: 1 piece

Downloads

Key data

Product type feed-out
Product name Modario 31
Order No. 5TR91AFTC

Supplement

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Certification, designation CE, UKCA

Material, Colour

connection compartment sheet steel, galvanised, coated, pure white
blank cover PC/ABS, white
Quantity 1 piece

Mounting

Mounting method, mounting location surface-mounted, to the Modario trunking rail

Electrical connection

Connection terminal, 10-pole, max. 2.5mm²

Dimensions, Weight

Length 449mm
Width 58mm
Height 43mm
Weight 0.7kg

Product type
feed-out

Product name
Modario 31

Order No.
5TR91AFTC

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, UKCA

connection compartment
sheet steel, galvanised, coated, pure white

blank cover
PC/ABS, white

Quantity
1 piece

Mounting method, mounting location
surface-mounted, to the Modario trunking rail

Connection
terminal, 10-pole, max. 2.5mm²

Length
449mm

Width
58mm

Height
43mm

Weight
0.7kg
