5XA1565E1F308

: 5XA1565E1F308

Article mast luminaire
Product name Large Bell iQ
Lamp LED
Rated luminous flux 4750lm
Luminous efficacy 138.5lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 34.3W
Pnom end service life 37.7W
Pred at 50% lumin. flux 15.5W
Service life 80000h (L96/B10) at AT = 25°C
Protection rating IP54
Impact resistance IK09
Weight 8.9kg

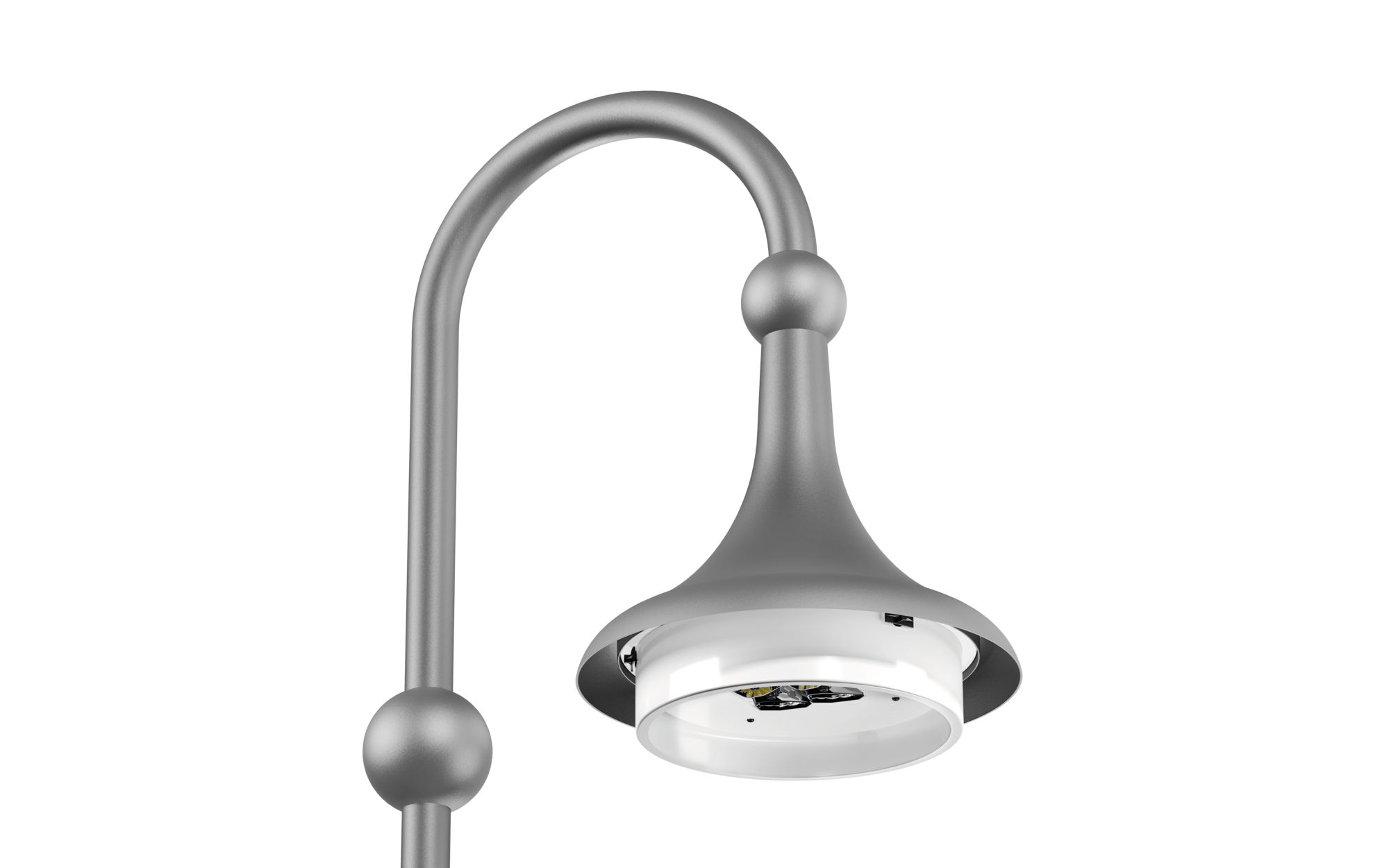

Large Bell iQ, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, primary optical cover: cover panel, of toughened safety glass, transparent, light distribution: S120016, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: suspended mounting, installation location: to curve, lamps: LED, rated values: 4.750lm | 34,3W | 138,5lm/W (begin service life); end service life: 4.750lm | 37,7W; at 50% lumin. flux: 2.375lm | 15,5W | 153,2lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 4.750lm | 34,3W | 138,5lm/W | 3.000K (begin service life); end service life: 37,7W, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), luminaire housing, bell-shaped, of glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), please order curved mast extension separately, diameter: 530mm, height: 695mm, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Key data

Product type mast luminaire
Product name Large Bell iQ
Order No. 5XA1565E1F308

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated
Cover cover panel, transparent

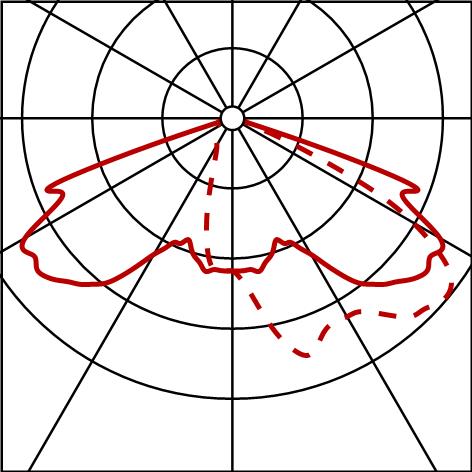

Light distribution S120016
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 4750lm | 34.3W | 138.5lm/W (begin service life);
end service life: 4750lm | 37.7W;
at 50% lumin. flux: 2375lm | 15.5W | 153.2lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 4750lm | 34.3W | 138.5lm/W | 3000K
end service life
LS 1: 37.7W
further light settings possible

Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK09
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), bell-shaped, please order curved mast extension separately
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location suspended mounting, to curve

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

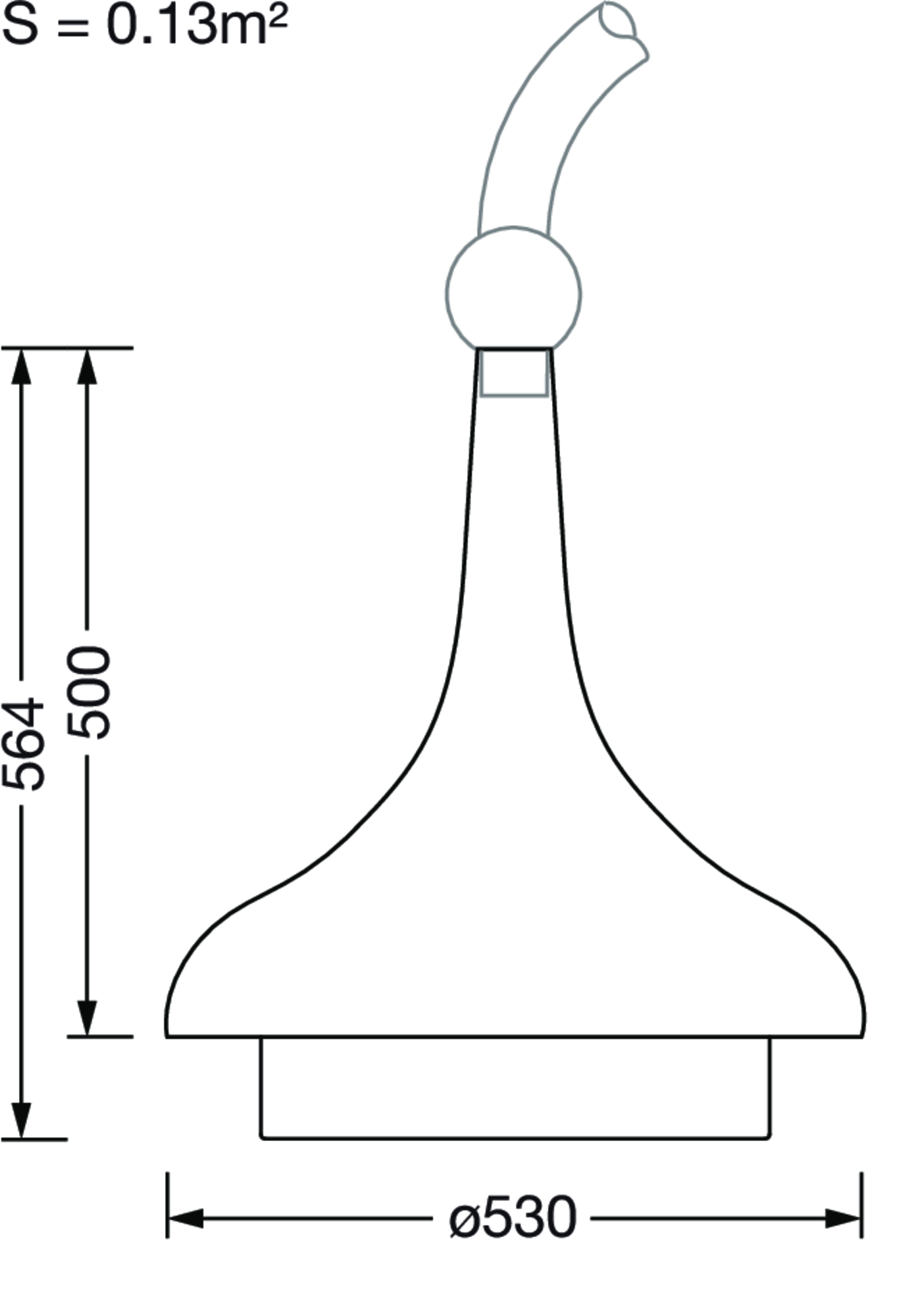

Dimensions, Weight

Diameter 530mm
Height 695mm
Weight 8.9kg

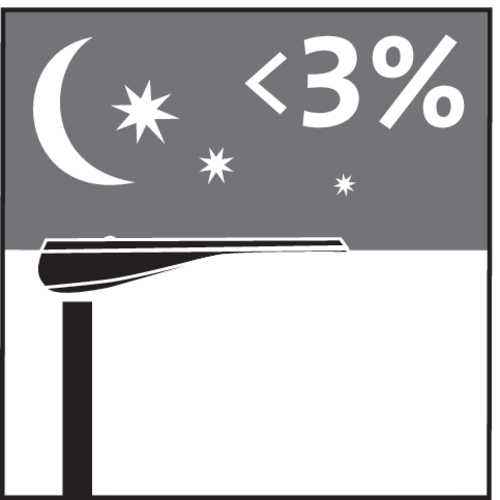

Light emission

Light emission < 3%

Service life

Rated service life 80000h (L96/B10) at AT = 25°C

Product type
mast luminaire

Product name
Large Bell iQ

Order No.
5XA1565E1F308

Light control
3 zone facetted reflector of plastic, silver coated

Cover
cover panel, transparent

Light distribution
S120016

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
4750lm | 34.3W | 138.5lm/W (begin service life);
end service life: 4750lm | 37.7W;
at 50% lumin. flux: 2375lm | 15.5W | 153.2lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 4750lm | 34.3W | 138.5lm/W | 3000K

end service life

LS 1: 37.7W


further light settings possible

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, pre-setting: linear dimming characteristic

Protection rating
IP54

Insulation class
insulation class II (safety insulation)

Impact resistance
IK09

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, VDE

luminaire housing
glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), bell-shaped, please order curved mast extension separately

Cover
cover panel of toughened safety glass

Mounting method, mounting location
suspended mounting, to curve

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
530mm

Height
695mm

Weight
8.9kg

Light emission
< 3%

Rated service life
80000h (L96/B10) at AT = 25°C

LgBelliQ
S120016,4750lm730,SR
: LED 3000K / CRI >= 70
: 5XA1565E1F308
