5XA1575E1F
Article electrics components group
Product name Small Bell iQ
Rated luminous flux 3220lm
Luminous efficacy 160.2lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 20.1W
Pnom end service life 20.6W
Pred at 50% lumin. flux 9.9W
Weight 1.6kg

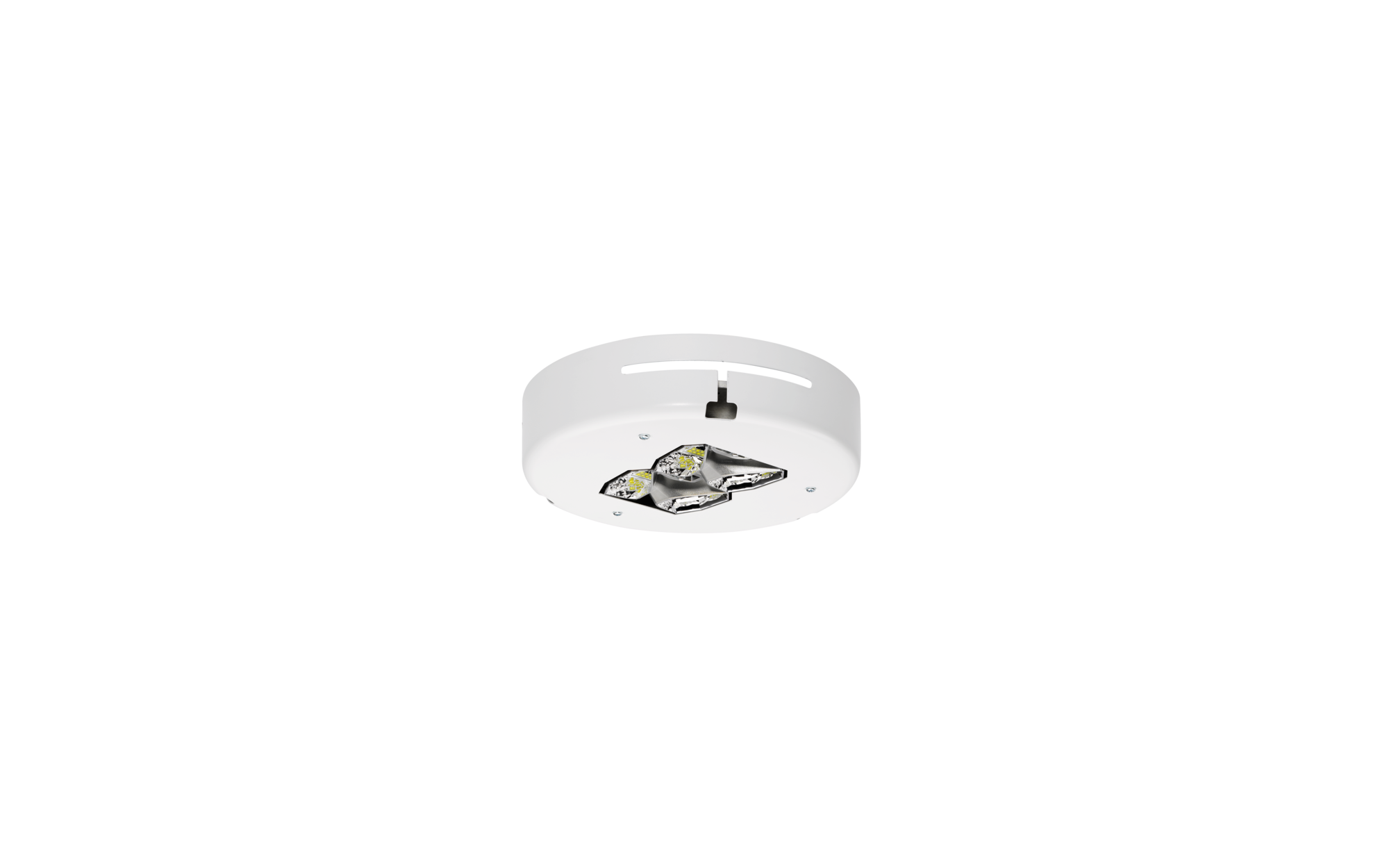

Small Bell iQ, electrics components group, gear tray, primary light control with 3 zone facetted reflector, of plastic, silver coated, light distribution: S120005, primary beam angle: wide distribution, primary light characteristic: asymmetric, rated values: 3.220lm | 20,1W | 160,2lm/W (begin service life); end service life: 3.220lm | 20,6W; at 50% lumin. flux: 1.610lm | 9,9W | 162,6lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 3.220lm | 20,1W | 160,2lm/W | 3.000K (begin service life); end service life: 20,6W, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), gear tray, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece
