5XA248D31Y08LE

: 5XA248D31Y08LE

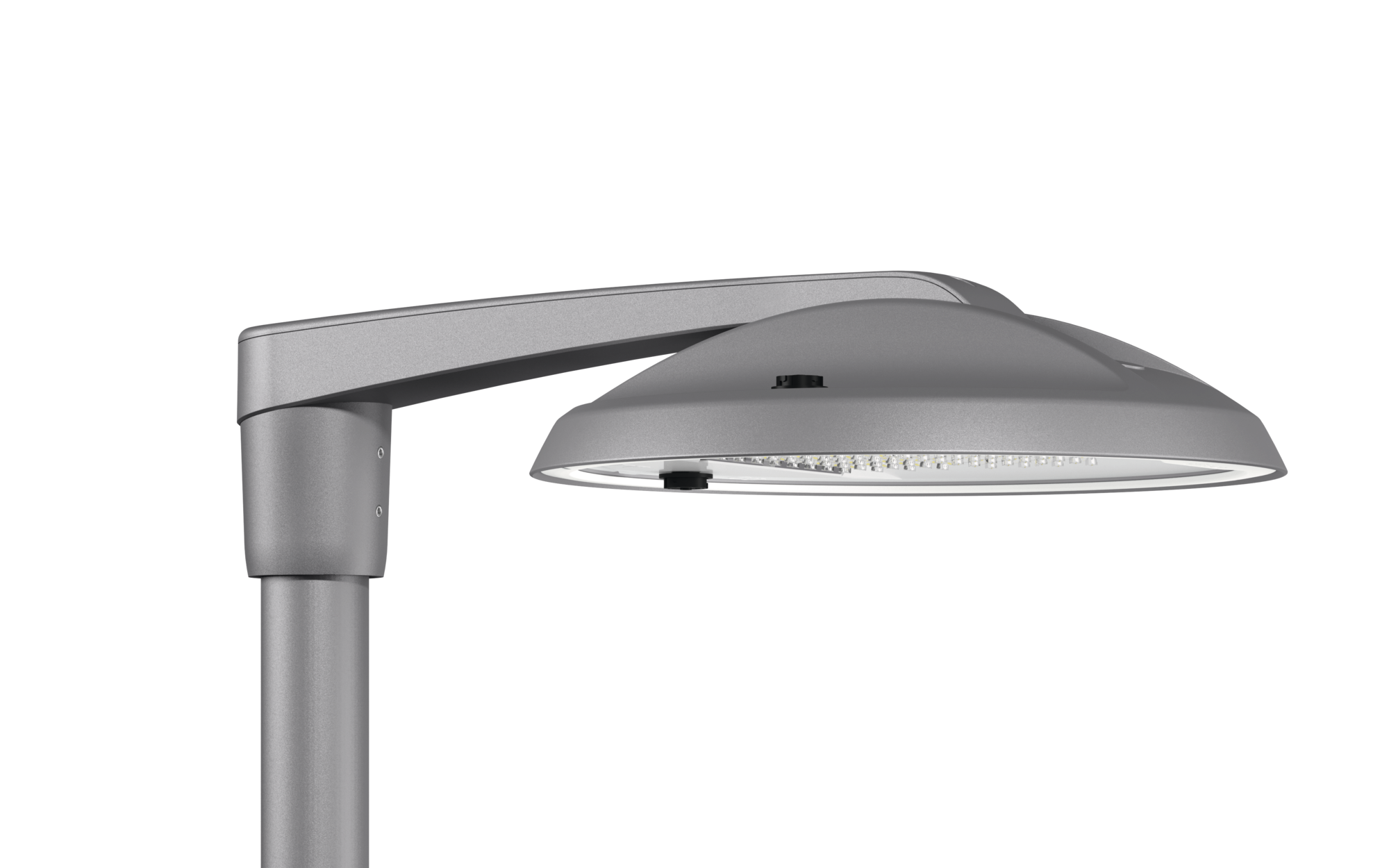

Article mast luminaire
Product name DL 50 iQ mini
Lamp LED
Rated luminous flux 10390lm
Luminous efficacy 157.4lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 66W
Pnom end service life 68.5W
Pred at 50% lumin. flux 30.2W
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 11.6kg

DL 50 iQ mini, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100003, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, 0% light immission, installation type: post-top, side-entry, lamps: LED, rated values: 10.390lm | 66W | 157,4lm/W (begin service life); end service life: 10.390lm | 68,5W; at 50% lumin. flux: 5.195lm | 30,2W | 172lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 10.390lm | 66W | 157,4lm/W | 3.000K (begin service life); end service life: 68,5W, control gear: iQ-Street Remote, D4i with power reduction, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 8,5m, wiring characteristics: H07RN-F, 5x 1,5mm², luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry), please order mast post-top element or mast side-entry element separately, diameter: 500mm, height: 115mm, post-top: for spigot size d x l = 76 x 100mm; with reducer (optional accessory) 60 x 100mm | side-entry: for spigot size d x l = 60 x 100mm; with reducer (optional accessory) 42 x 100mm, Smart Interface above: Zhaga, Smart Interface below: Zhaga, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK08, permissible operating ambient temperature for outdoor applications: -25..+40°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Key data

Product type mast luminaire
Product name DL 50 iQ mini
Order No. 5XA248D31Y08LE

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution S100003
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 10390lm | 66W | 157.4lm/W (begin service life);
end service life: 10390lm | 68.5W;
at 50% lumin. flux: 5195lm | 30.2W | 172lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 10390lm | 66W | 157.4lm/W | 3000K
end service life
LS 1: 68.5W
further light settings possible

Operating device

Control iQ-Street Remote, D4i with power reduction
Smart Interface above Zhaga
Smart Interface below Zhaga
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+40°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry), please order mast post-top element or mast side-entry element separately
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Connection cable pre-assembled, L= 8.5m, H07RN-F, 5x 1.5mm²
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Dimensions, Weight

Diameter 500mm
Height 115mm
Weight 11.6kg
Mast spigot post-top: for spigot size d x l = 76 x 100mm; with reducer (optional accessory) 60 x 100mm | side-entry: for spigot size d x l = 60 x 100mm; with reducer (optional accessory) 42 x 100mm

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L95/B10) at AT = 25°C

Product type
mast luminaire

Product name
DL 50 iQ mini

Order No.
5XA248D31Y08LE

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
S100003

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
10390lm | 66W | 157.4lm/W (begin service life);
end service life: 10390lm | 68.5W;
at 50% lumin. flux: 5195lm | 30.2W | 172lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 10390lm | 66W | 157.4lm/W | 3000K

end service life

LS 1: 68.5W


further light settings possible

Control
iQ-Street Remote, D4i with power reduction

Smart Interface above
Zhaga

Smart Interface below
Zhaga

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Temperature range (operation)
-25..+40°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, ENEC+, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry), please order mast post-top element or mast side-entry element separately

Cover
cover of toughened safety glass

Mounting method, mounting location
side-entry, post-top, on mast

Connection cable
pre-assembled, L= 8.5m, H07RN-F, 5x 1.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
500mm

Height
115mm

Weight
11.6kg

Mast spigot
post-top: for spigot size d x l = 76 x 100mm; with reducer (optional accessory) 60 x 100mm | side-entry: for spigot size d x l = 60 x 100mm; with reducer (optional accessory) 42 x 100mm

Light emission
0% at 0° inclination

Rated service life
100000h (L95/B10) at AT = 25°C

DL50iQmn
S100003,10390lm730,SR,D4i,LST
: LED 3000K / CRI >= 70
: 5XA248D31Y08LE
