5XA248W31F08RE

: 5XA248W31F08RE

Article catenary luminaire
Product name DL 50 iQ mini
Lamp LED
Rated luminous flux 6000lm
Luminous efficacy 169.5lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 35.4W
Pnom end service life 36.3W
Pred at 50% lumin. flux 17W
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 9.7kg

DL 50 iQ mini, catenary luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100004, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, 0% light immission, installation type: suspended mounting, installation location: to wire, wire suspension required as accessory, lamps: LED, rated values: 6.000lm | 35,4W | 169,5lm/W (begin service life); end service life: 6.000lm | 36,3W; at 50% lumin. flux: 3.000lm | 17W | 176,5lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 6.000lm | 35,4W | 169,5lm/W | 3.000K (begin service life); end service life: 36,3W, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), diameter: 500mm, height: 115mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK08, permissible operating ambient temperature for outdoor applications: -25..+40°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Key data

Product type catenary luminaire
Product name DL 50 iQ mini
Order No. 5XA248W31F08RE

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution S100004
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 6000lm | 35.4W | 169.5lm/W (begin service life);
end service life: 6000lm | 36.3W;
at 50% lumin. flux: 3000lm | 17W | 176.5lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 6000lm | 35.4W | 169.5lm/W | 3000K
end service life
LS 1: 36.3W
further light settings possible

Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+40°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location suspended mounting, to wire
Supplement wire suspension required as accessory

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

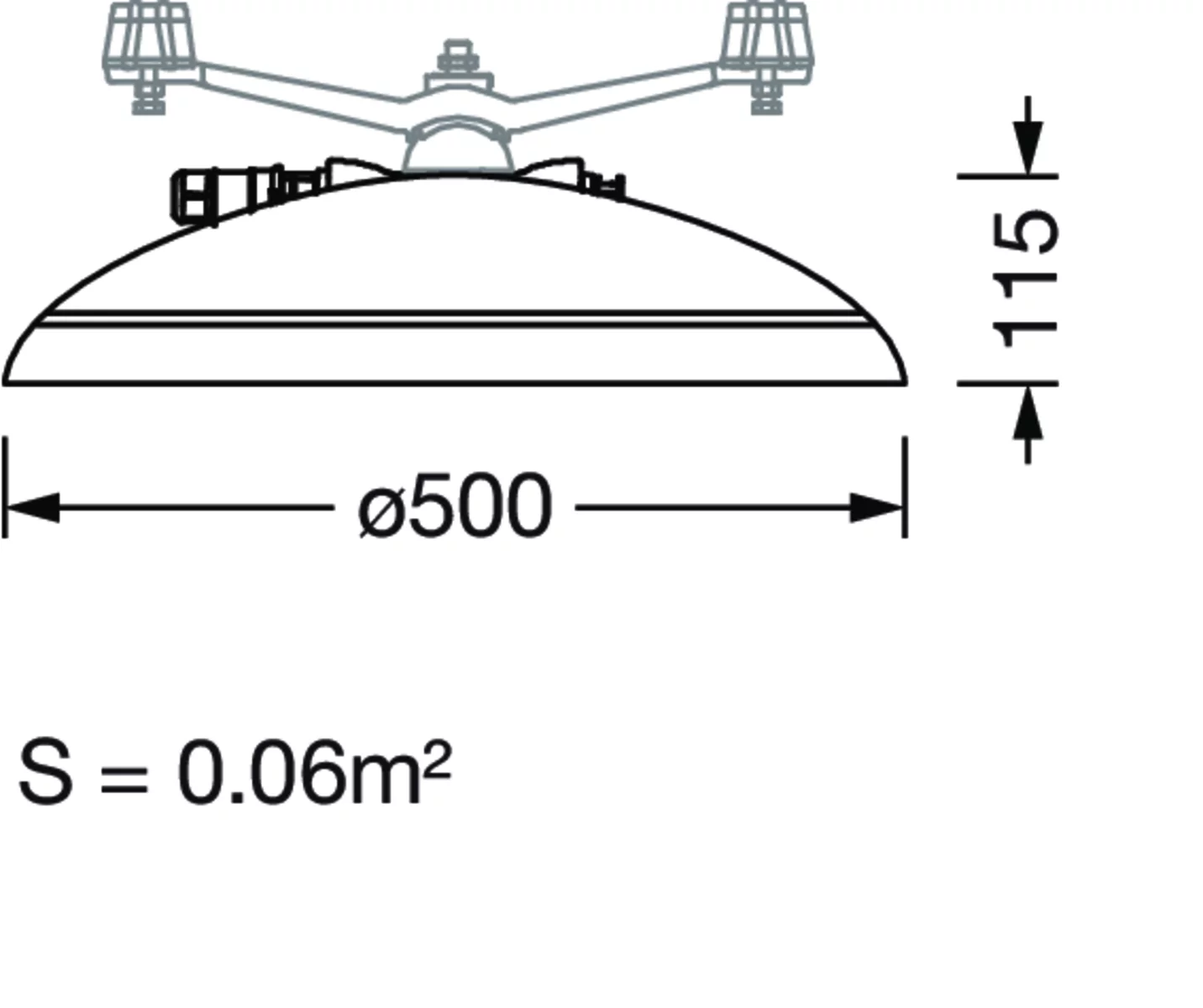

Dimensions, Weight

Diameter 500mm
Height 115mm
Weight 9.7kg

Light emission

Light emission 0%

Service life

Rated service life 100000h (L95/B10) at AT = 25°C

Product type
catenary luminaire

Product name
DL 50 iQ mini

Order No.
5XA248W31F08RE

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
S100004

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
6000lm | 35.4W | 169.5lm/W (begin service life);
end service life: 6000lm | 36.3W;
at 50% lumin. flux: 3000lm | 17W | 176.5lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 6000lm | 35.4W | 169.5lm/W | 3000K

end service life

LS 1: 36.3W


further light settings possible

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Temperature range (operation)
-25..+40°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, ENEC+, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)

Cover
cover of toughened safety glass

Mounting method, mounting location
suspended mounting, to wire

Supplement
wire suspension required as accessory

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
500mm

Height
115mm

Weight
9.7kg

Light emission
0%

Rated service life
100000h (L95/B10) at AT = 25°C

DL50iQmn
cat,S100004,6000lm730,SR
: LED 3000K / CRI >= 70
