5XA5255JF14H000022

Order No.: 5XA5255JF14H000022
Remember articleRemember article

Article mast luminaire

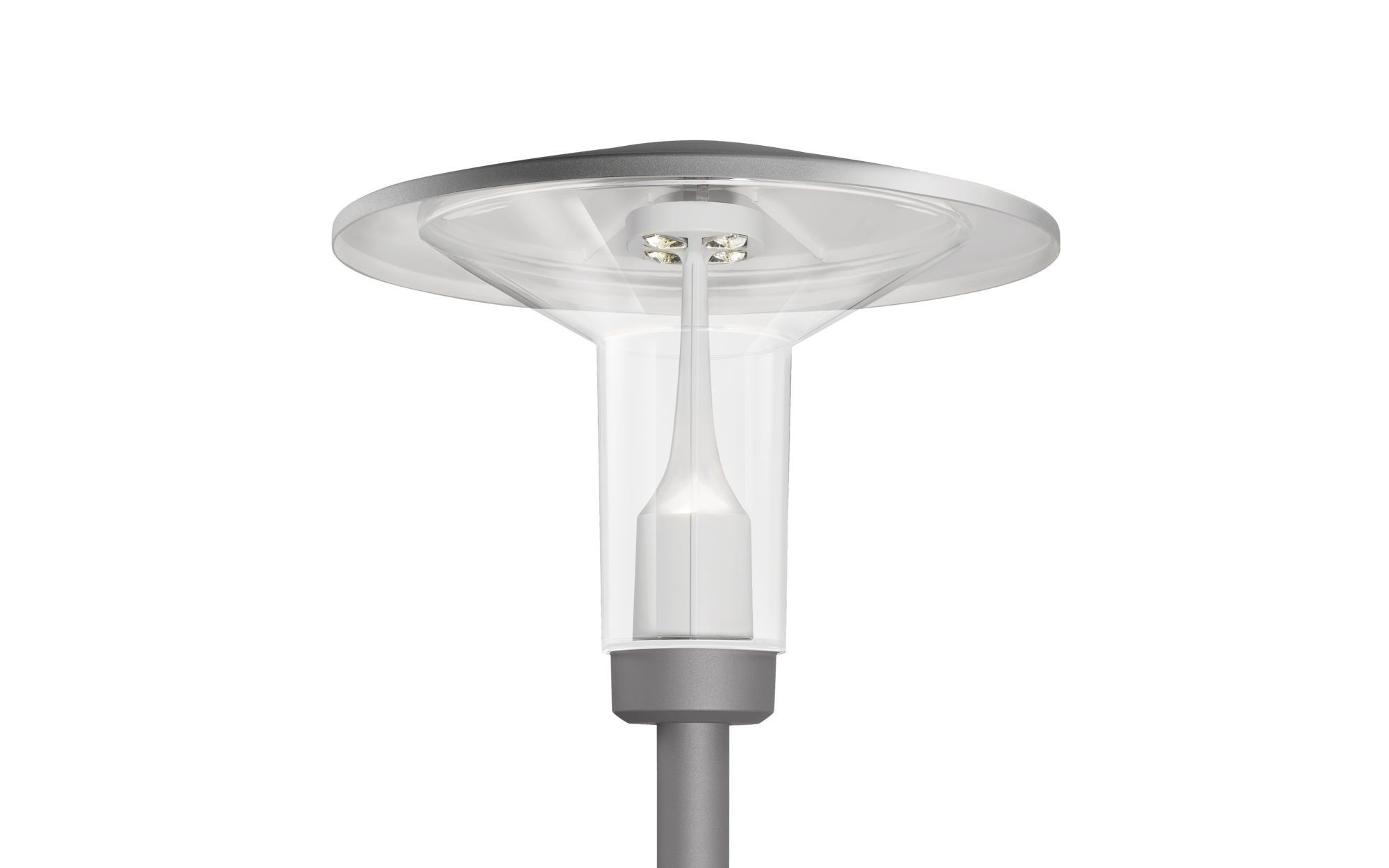

Product name Lantern iQ
Lamp LED
Rated luminous flux 2970lm
Luminous efficacy 153.9lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 19.3W
Pnom end service life 20.6W
Pred at 50% lumin. flux 9.6W
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 9.0kg

Lantern iQ, mast luminaire, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, light distribution: C120006, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, lamps: LED, rated values: 2.970lm | 19,3W | 153,9lm/W (begin service life); end service life: 2.970lm | 20,6W; at 50% lumin. flux: 1.485lm | 9,6W | 154,7lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 2.970lm | 19,3W | 153,9lm/W | 3.000K (begin service life); end service life: 20,6W, control gear: iQ Street-Remote, control: Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), pre-setting: logarithmic dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, connection cable: pre-assembled, cable length: 5,5m, wiring characteristics: H07RN-F, 5x 1,5mm², luminaire housing, upper part, of glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), diameter: 750mm, height: 583mm, spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm, post-top mast mounting element, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Module 540 iQ-SR, matt traffic white (RAL 9016), equipment: standard, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name Lantern iQ
Order No. 5XA5255JF14H000022

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent
Light distribution C120006
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 2970lm | 19.3W | 153.9lm/W (begin service life);
end service life: 2970lm | 20.6W;
at 50% lumin. flux: 1485lm | 9.6W | 154.7lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 2970lm | 19.3W | 153.9lm/W | 3000K
end service life
LS 1: 20.6W
further light settings possible

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP65
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing, upper part glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S)
post-top mast mounting element diecast aluminium, coated, SITECO metallic grey (DB 702S)
Module 540 iQ-SR matt traffic white (RAL 9016)
Cover cover of PMMA

Mounting

Mounting method, mounting location post-top, on mast

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Connection cable pre-assembled, L= 5.5m, H07RN-F, 5x 1.5mm²
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Dimensions, Weight

Diameter 750mm
Height 583mm
Weight 9.0kg
Mast spigot spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm

Light emission

Light emission < 3%

Service life

Rated service life 100000h at AT = 25°C

Product type
mast luminaire

Product name
Lantern iQ

Order No.
5XA5255JF14H000022

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent

Light distribution
C120006

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
2970lm | 19.3W | 153.9lm/W (begin service life);
end service life: 2970lm | 20.6W;
at 50% lumin. flux: 1485lm | 9.6W | 154.7lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 2970lm | 19.3W | 153.9lm/W | 3000K

end service life

LS 1: 20.6W


further light settings possible

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP65

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

luminaire housing, upper part
glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S)

post-top mast mounting element
diecast aluminium, coated, SITECO metallic grey (DB 702S)

Module 540 iQ-SR
matt traffic white (RAL 9016)

Cover
cover of PMMA

Mounting method, mounting location
post-top, on mast

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Connection cable
pre-assembled, L= 5.5m, H07RN-F, 5x 1.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Diameter
750mm

Height
583mm

Weight
9.0kg

Mast spigot
spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm

Light emission
< 3%

Rated service life
100000h at AT = 25°C

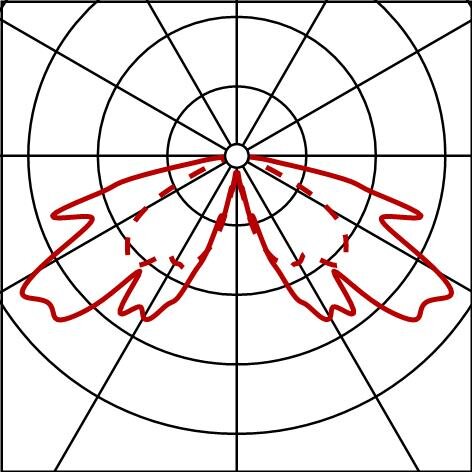

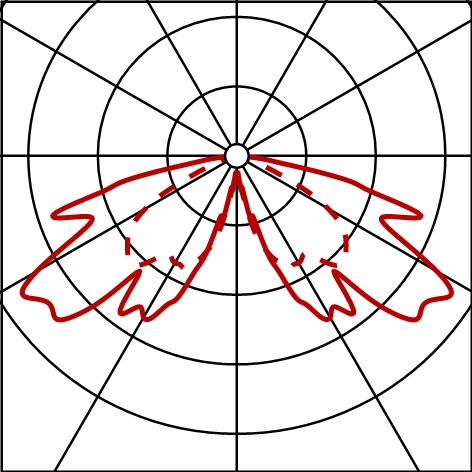

Photometric report / planning data

LantiQ
C120006,2970lm730,SR
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5255JF14H000022

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
