5XA5405AF008

: 5XA5405AF008

Article electrics components group

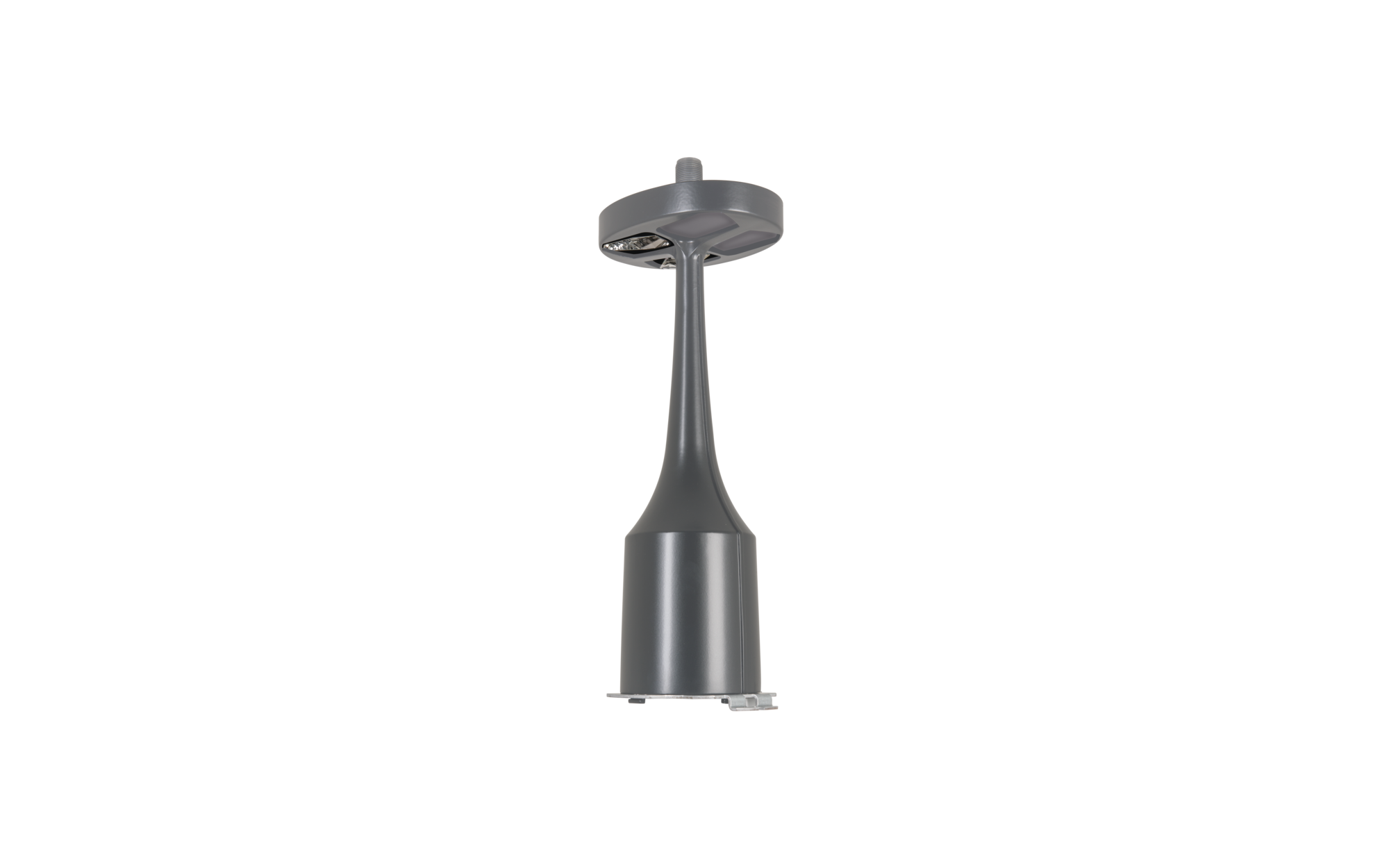

Product name Module 540 iQ
Lamp LED
Rated luminous flux 1480lm
Luminous efficacy 114.7lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom 12.9W
Pnom end service life 13.3W
Pred at 50% lumin. flux 6.4W
Weight 2.7kg

Module 540 iQ, electrics components group, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, light distribution: S120002, primary beam angle: wide distribution, primary light characteristic: asymmetric, installation location: in the luminaire, lamps: LED, rated values: 1.480lm | 12,9W | 114,7lm/W (begin service life); end service life: 1.480lm | 13,3W; at 50% lumin. flux: 740lm | 6,4W | 115,6lm/W, colour temperature: 2200K, colour rendering: CRI > 70, light colour: 722, light setting 1 (further light settings possible): 100% | 1.480lm | 12,9W | 114,7lm/W | 2.200K (begin service life); end service life: 13,3W, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, gear tray, SITECO metallic grey (DB 702S), width: 190mm, height: 514mm, equipment: Standard, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

Downloads

Key data

Product type electrics components group
Product name Module 540 iQ
Order No. 5XA5405AF008

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Light distribution S120002
Beam angle wide distribution
Symmetry asymmetric distribution

Lamps

Lamps with LED
Rated values 1480lm | 12.9W | 114.7lm/W (begin service life);
end service life: 1480lm | 13.3W;
at 50% lumin. flux: 740lm | 6.4W | 115.6lm/W
Colour temperature 2200K
Colour rendering index CRI > 70
Light colour 722
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 1480lm | 12.9W | 114.7lm/W | 2200K
end service life
LS 1: 13.3W
further light settings possible

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

gear tray SITECO metallic grey (DB 702S)

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

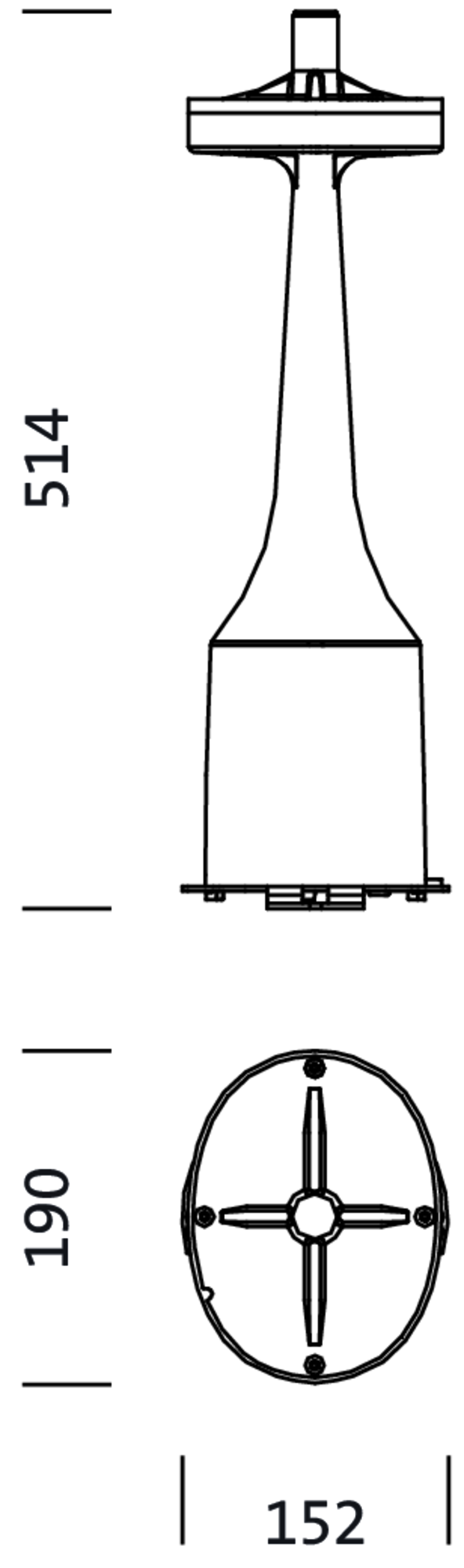

Dimensions, Weight

Width 190mm
Height 514mm
Weight 2.7kg

Product type
electrics components group

Product name
Module 540 iQ

Order No.
5XA5405AF008

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Light distribution
S120002

Beam angle
wide distribution

Symmetry
asymmetric distribution

Lamps
with LED

Rated values
1480lm | 12.9W | 114.7lm/W (begin service life);
end service life: 1480lm | 13.3W;
at 50% lumin. flux: 740lm | 6.4W | 115.6lm/W

Colour temperature
2200K

Colour rendering index
CRI > 70

Light colour
722

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 1480lm | 12.9W | 114.7lm/W | 2200K

end service life

LS 1: 13.3W


further light settings possible

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

gear tray
SITECO metallic grey (DB 702S)

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Width
190mm

Height
514mm

Weight
2.7kg
