5XA7592E2K22
Article floodlight

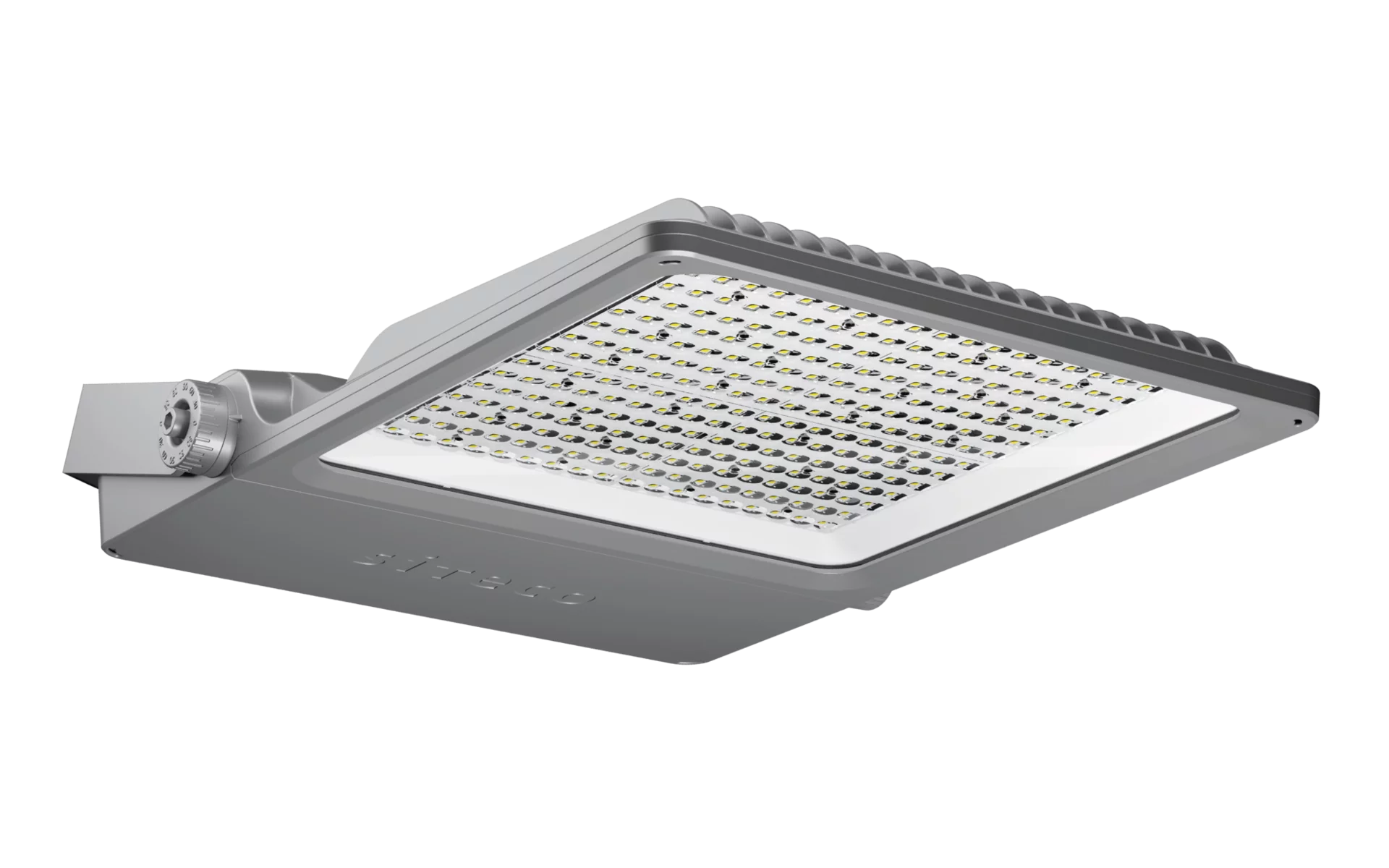

Product name SiCompact 31 maxi
Lamp LED
Rated luminous flux 70000lm
Luminous efficacy 143lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 490W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 17.0kg

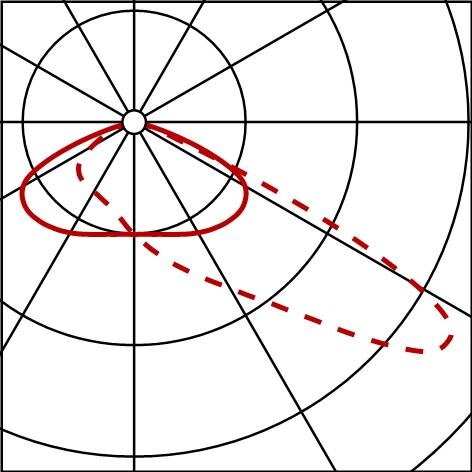

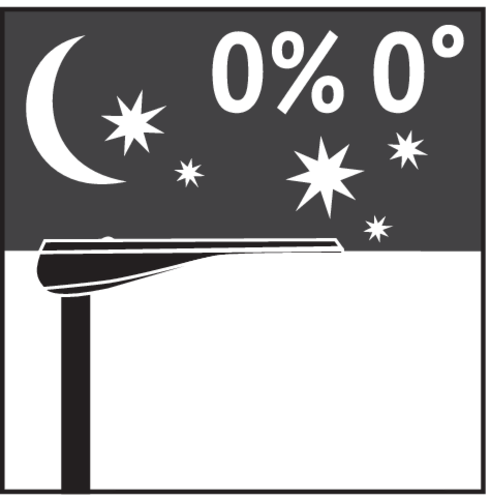

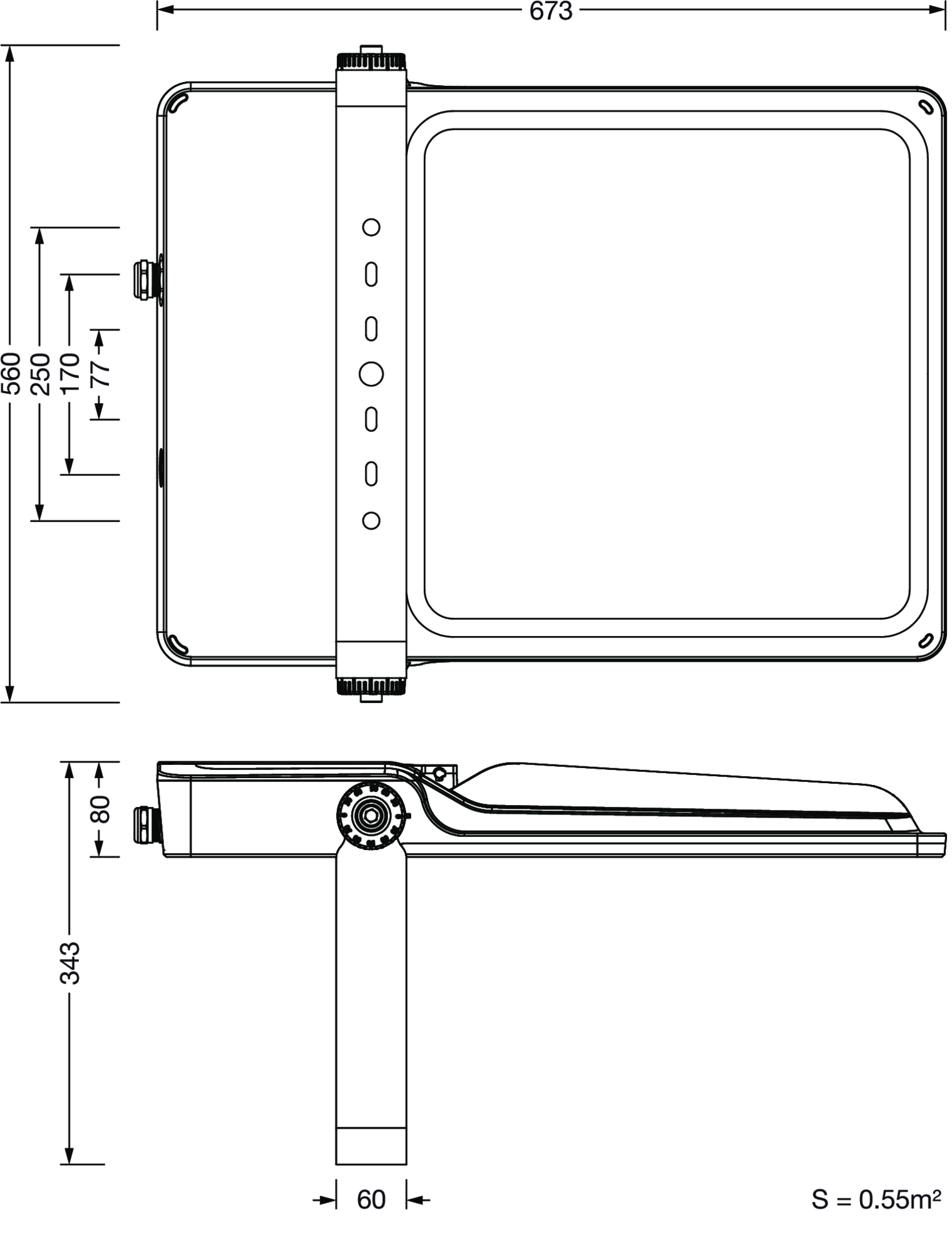

SiCompact 31 maxi, floodlight, primary light control with lens, of plastic, of toughened safety glass, transparent, light distribution: A320002, light emission: direct distribution, primary light characteristic: asymmetric, 0% light immission, installation type: surface-mounted, lamps: LED, rated values: 70.000lm | 490W | 142,9lm/W, colour temperature: 4000K, colour rendering: CRI > 70, light colour: 740, light setting 1 (further light settings possible): 100% | 70.000lm | 490W | 142,9lm/W | 4.000Kcontrol gear: DALI, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: 10kV 1.2/50µs, of diecast aluminium, powder-coated, metallic grey (RAL 9006), length: 790mm, width: 560mm, height: 85mm, bracket, of sheet steel, powder-coated, metallic grey (RAL 9006), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK08, permissible operating ambient temperature: -30..+35°C, permissible operating ambient temperature for outdoor applications: -30..+45°C, permissible storage temperature: -30..+65°C, packaging unit: 1 piece

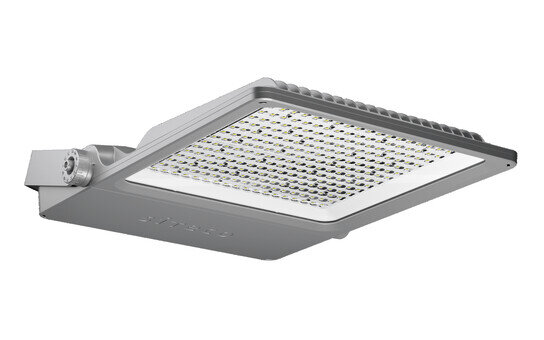

SiCompact 31 maxi

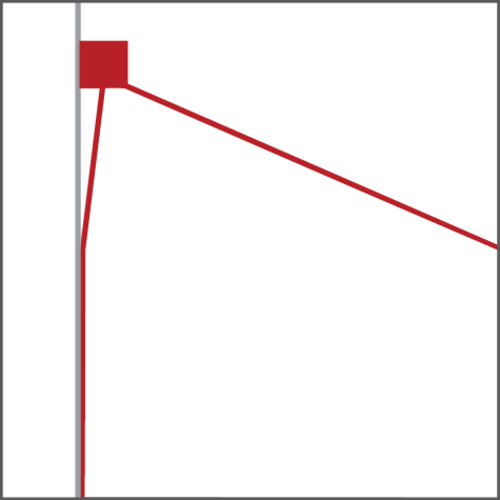

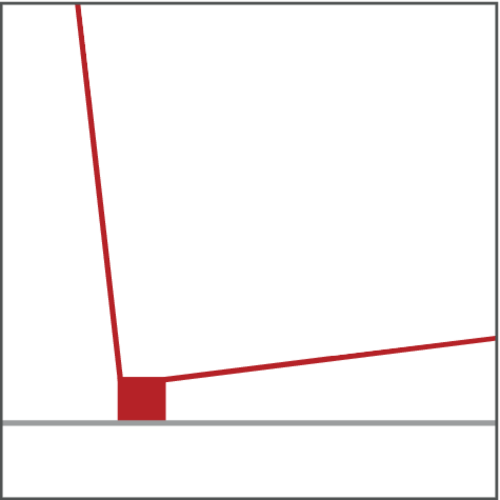

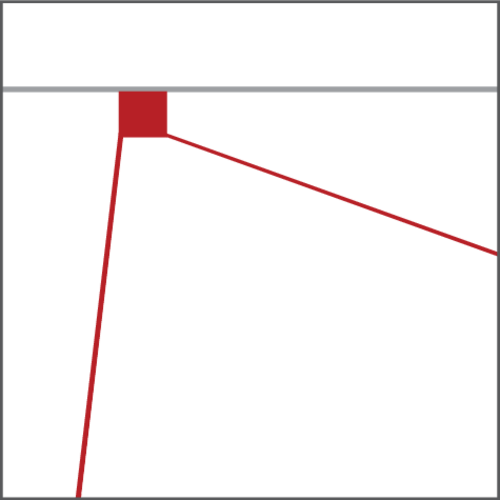

LED, ECG DALI, direct asymmetric distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
: LED 4000K / CRI >= 70
: 5XA7592E2K22
