5XA769SCS1

: 5XA769SCS1

Article luminaire controller
Product name SITECO Connect Sport
Protection rating IP69
Weight 0.5kg

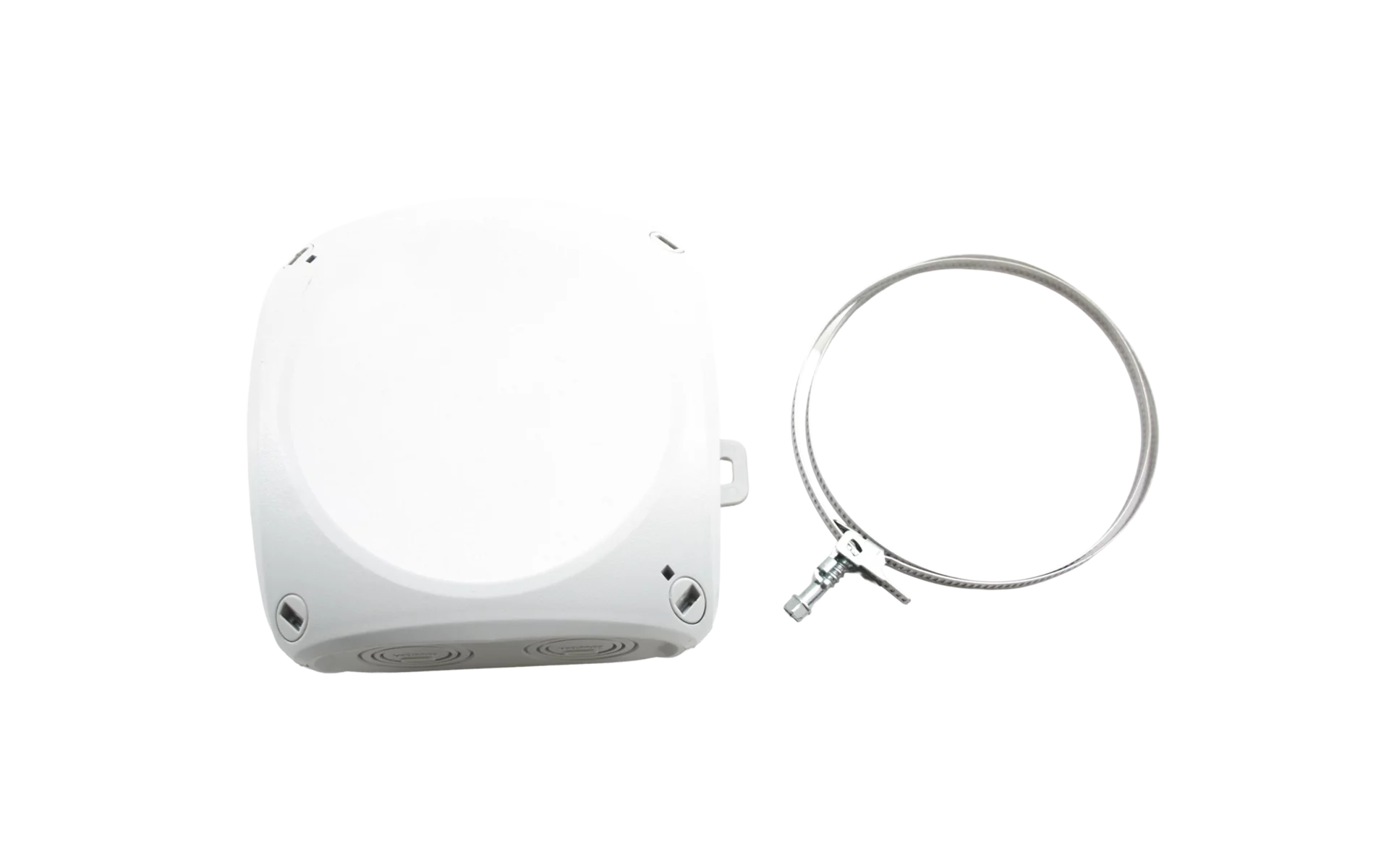

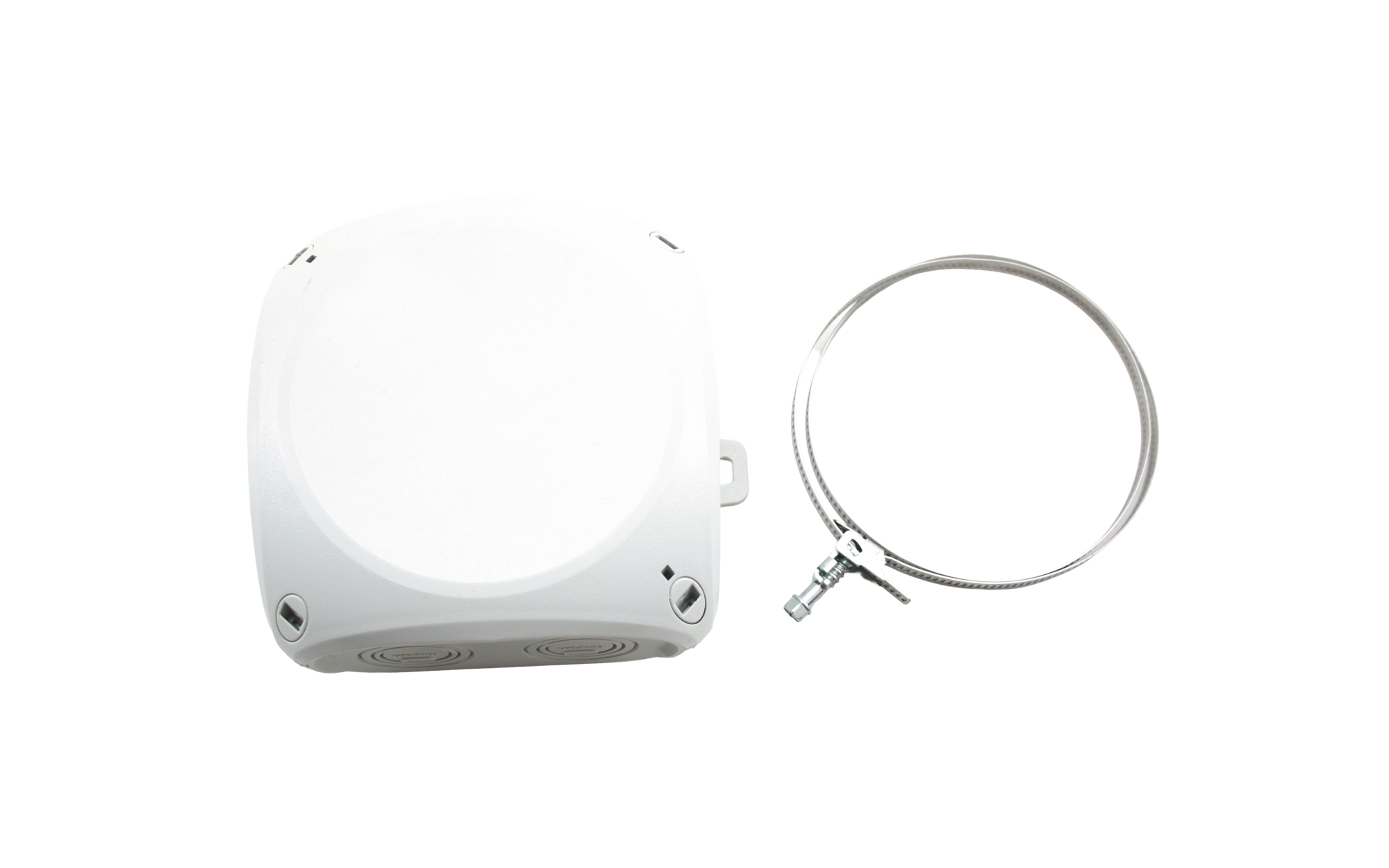

SITECO Connect SportMast Box DALI 100..480V, local control - self-sufficient standalone sensors, dimmable, configuration via Casambi app, controls up to 4 DALI ECGs individually or up to 20 DALI ECGs via broadcast, optional remote setup and operation via gateway, installation type: surface-mounted, installation location: to mast, of plastic, protection rating (complete): IP69, insulation class (complete): insulation class II (safety insulation), certification: CE, voltage: 100..480V, voltage type: AC, ECG DALI, Bluetooth, packaging unit: 1 piece

Downloads

Key data

Product type luminaire controller
Product name SITECO Connect Sport
Order No. 5XA769SCS1

Control

Certificates, Standards

Protection rating IP69
Insulation class insulation class II (safety insulation)
Certification, designation CE

Material, Colour

housing plastic, dark grey

Mounting

Mounting method, mounting location surface-mounted, to mast

Electrical connection

Nominal voltage 100..480V, 50/60Hz, AC

Dimensions, Weight

Length 130mm
Width 130mm
Height 77mm
Weight 0.5kg

Outputs

ECG DALI
Feature for maximal four DALI ECGs

Bluetooth
Range max. 100m in open field

Product type
luminaire controller

Product name
SITECO Connect Sport

Order No.
5XA769SCS1

Protection rating
IP69

Insulation class
insulation class II (safety insulation)

Certification, designation
CE

housing
plastic, dark grey

Mounting method, mounting location
surface-mounted, to mast

Nominal voltage
100..480V, 50/60Hz, AC

Length
130mm

Width
130mm

Height
77mm

Weight
0.5kg

ECG DALI

Feature
for maximal four DALI ECGs

Bluetooth

Range
max. 100m in open field
