5XA769SCSDA

: 5XA769SCSDA

Article luminaire controller
Product name SITECO Connect Sport
Rated input power 3W
Protection rating IP66
Weight 0.2kg

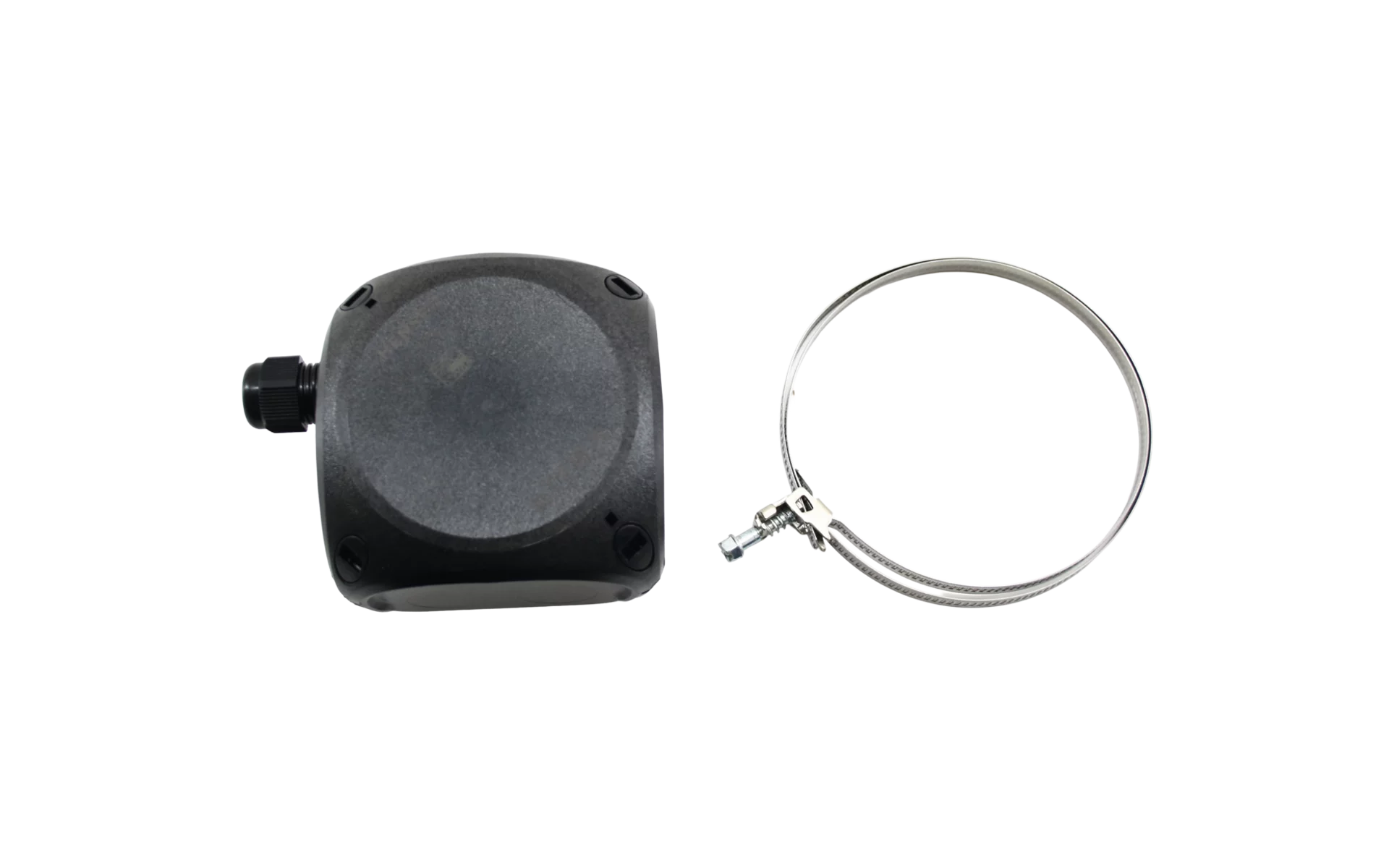

SITECO Connect SportMast Box DALI 230V, dimmable, configuration via Casambi app, controls up to 4 DALI ECGs individually or up to 64 DALI ECGs via broadcast, optional remote setup and operation via gateway, installation type: surface-mounted, installation location: to mast, of plastic, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, voltage: 230V, voltage type: AC, ECG DALI, Bluetooth, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect
Product type luminaire controller
Product name SITECO Connect Sport
Order No. 5XA769SCSDA

Lamps

Rated input power 3W

Operating device

Control DALI, Casambi, dimmable, configuration via Casambi app, controls up to 4 DALI ECGs individually or up to 64 DALI ECGs via broadcast, optional remote setup and operation via gateway

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Temperature range (operation) -25..+60°C
Certification, designation CE

Material, Colour

housing plastic, black

Mounting

Mounting method, mounting location surface-mounted, to mast

Electrical connection

Nominal voltage 230V, 50/60Hz, AC

Dimensions, Weight

Weight 0.2kg

Outputs

ECG DALI
Feature for maximal four DALI ECGs
Range max. 150m

System family
SITECO Connect

Product type
luminaire controller

Product name
SITECO Connect Sport

Order No.
5XA769SCSDA

Rated input power
3W

Control
DALI, Casambi, dimmable, configuration via Casambi app, controls up to 4 DALI ECGs individually or up to 64 DALI ECGs via broadcast, optional remote setup and operation via gateway

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-25..+60°C

Certification, designation
CE

housing
plastic, black

Mounting method, mounting location
surface-mounted, to mast

Nominal voltage
230V, 50/60Hz, AC

Weight
0.2kg

ECG DALI

Feature
for maximal four DALI ECGs

Range
max. 150m
