5XA7762A1A1A
Article floodlight

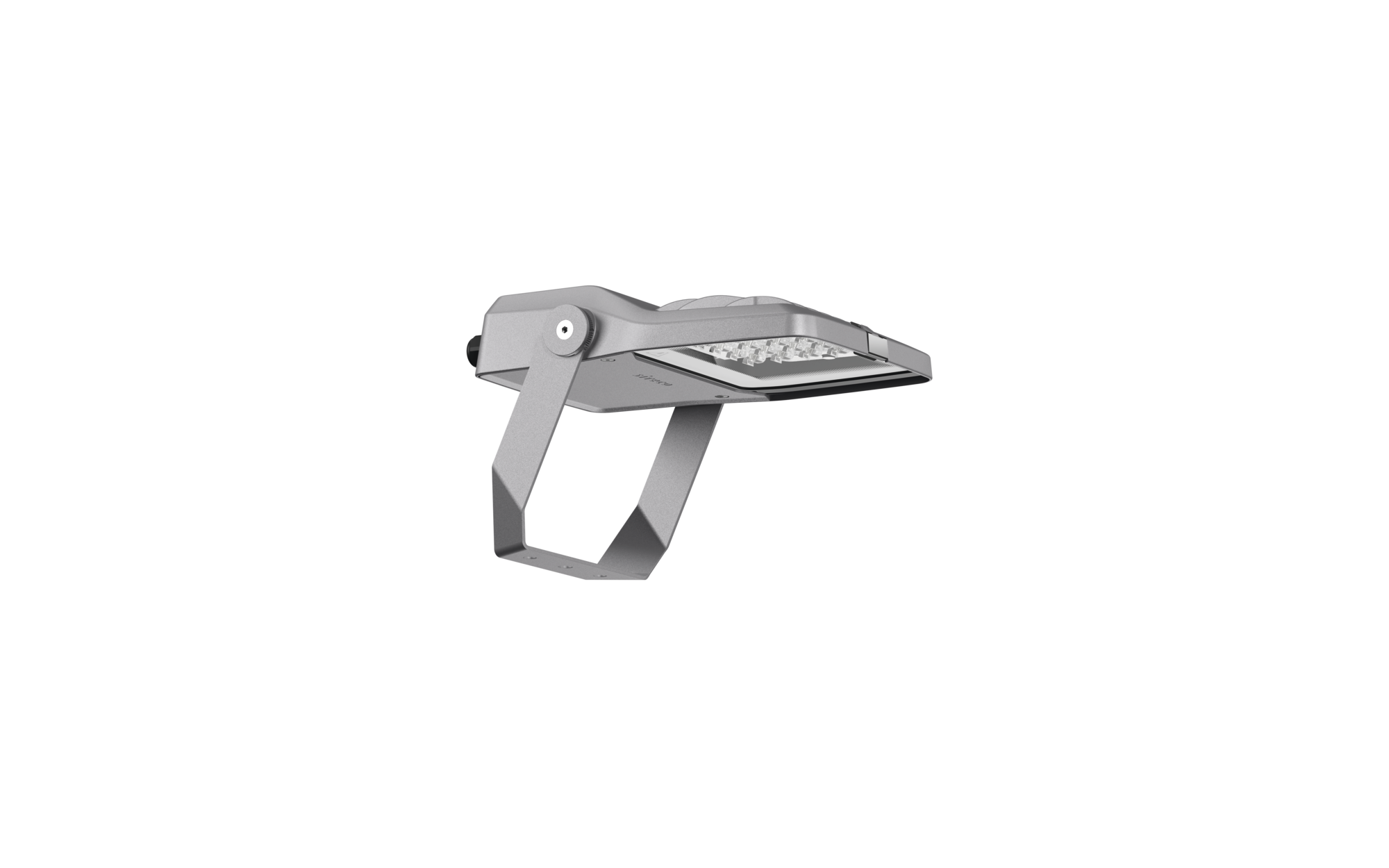

Product name Floodlight FL 21 iQ micro
Lamp LED
Rated luminous flux 2520lm
Luminous efficacy 109.1lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom 23.1W
Pnom end service life 23.8W
Pred at 50% lumin. flux 10.9W
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 3.3kg
Floodlight FL 21 iQ micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A430002, light emission: direct distribution, 0% light immission, installation type: surface-mounted, lamps: LED, rated values: 2.520lm | 23,1W | 109,1lm/W (begin service life); end service life: 2.520lm | 23,8W; at 50% lumin. flux: 1.260lm | 10,9W | 115,6lm/W, colour temperature: 2200K, colour rendering: CRI > 70, light colour: 722, light setting 1 (further light settings possible): 100% | 2.520lm | 23,1W | 109,1lm/W | 2.200K (begin service life); end service life: 23,8W, control gear: iQ Street-Remote/DALI, control: Auto-Match, Temp-Guard, Night-Set, Smart-Wire, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), Street-Remote, pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 1.5mm², solid wire, fine wire, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Floodlight FL 21 iQ micro
LED, direct distribution, surface-mounted, to supporting structure, to the cross arm, to mast
: LED 2200K / CRI >= 70
: 5XA7762A1A1A
