5XA7763A2A1A
Article floodlight
Product name Floodlight FL 21 micro
Lamp LED
Rated luminous flux 4560lm
Luminous efficacy 118.8lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 38.4W
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 3.3kg
Floodlight FL 21 micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A430002, light emission: direct distribution, 0% light immission, installation type: surface-mounted, installation location: to supporting structure, to the cross arm, to the wall, with mounting bracket, screws of glass cover cannot be lost, lamps: LED, rated values: 4.560lm | 38,4W | 118,8lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 4.560lm | 38,4W | 118,8lm/W | 3.000Kcontrol gear: ON/OFF Multilumen, control: pre-setting: linear dimming characteristic, Temp-Guard, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: 10kV 1.2/50µs, electrical connection: terminal, 6-pole, max. 1.5mm², solid wire, fine wire, luminous flux adjustable on luminaire in eight steps, electronic type plate, ECG replaceable without ESD environment, exclusion of faulty assembly when replacing spare parts thanks to reverse polarity protected plug connection, ECG replaceable at mast without ESD environment, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

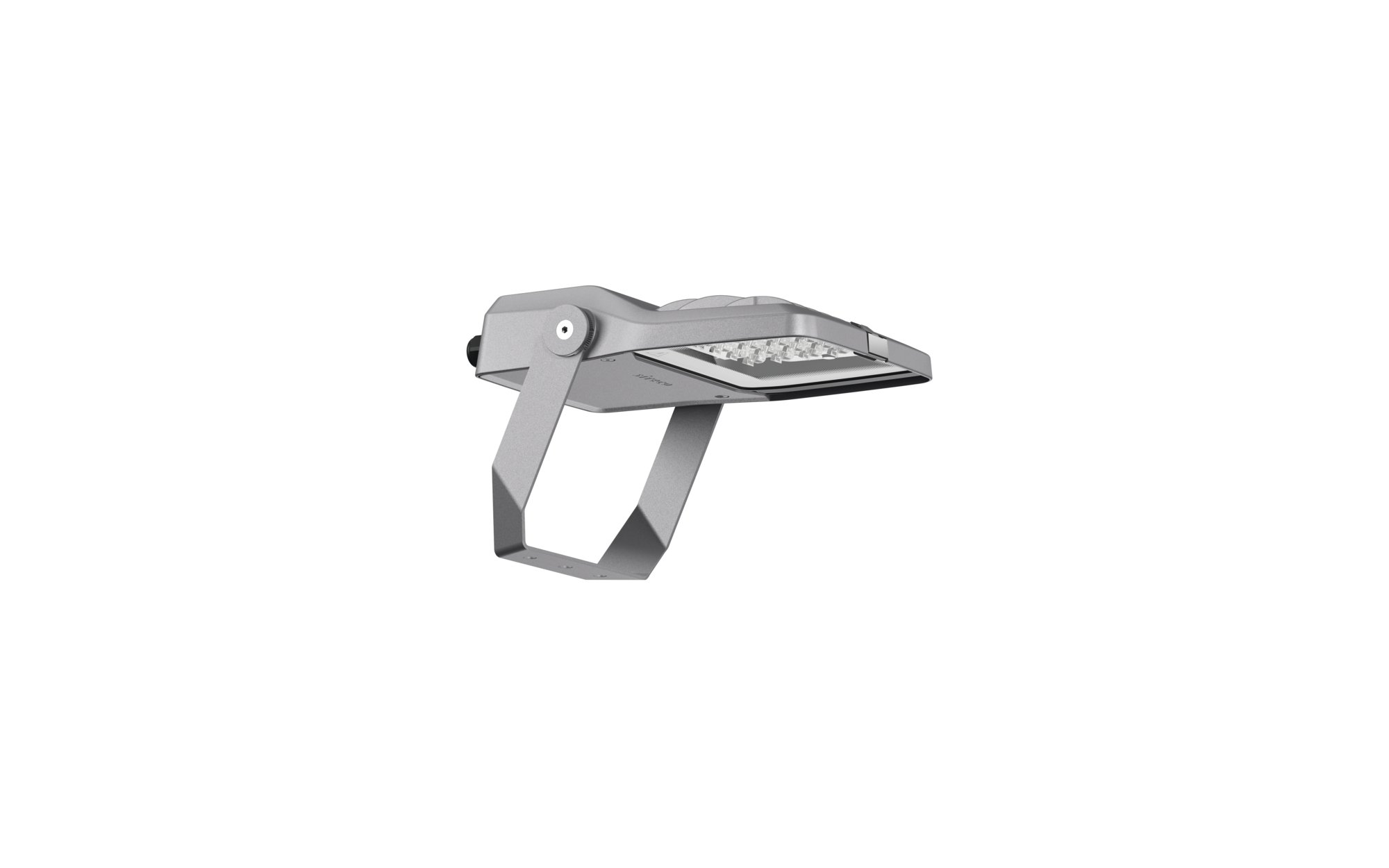

Floodlight FL 21 micro
LED, direct distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
: LED 3000K / CRI >= 70
: 5XA7763A2A1A
