Key data

Product type floodlight

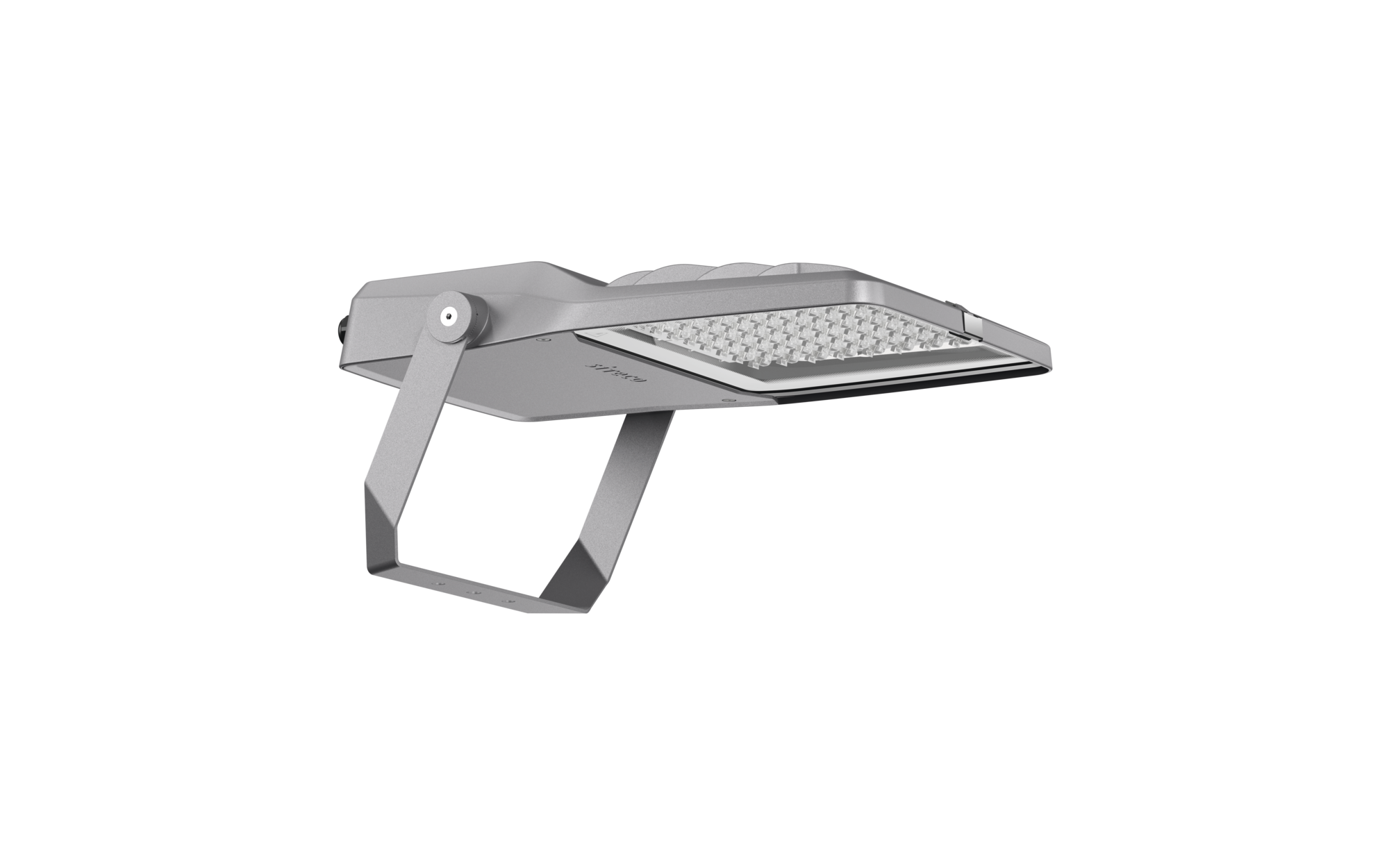

Product name Floodlight FL 21 mini
Order No. 5XA7773C4C1A

Lighting technology

Light control lens of PMMA
Cover protective disc, transparent

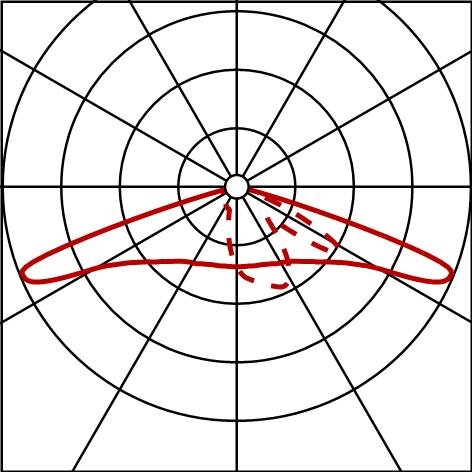

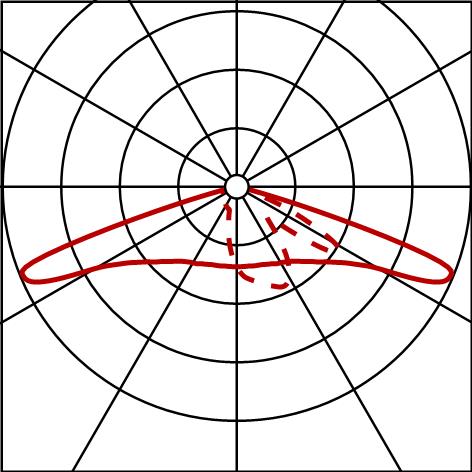

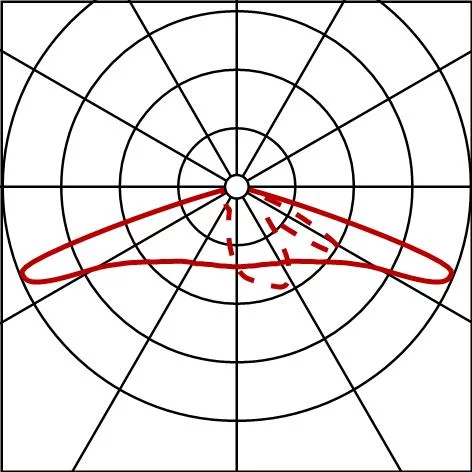

Light distribution A610002
Light emission direct distribution

Lamps

Lamps with LED
Rated values 19990lm | 163.5W | 122.3lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
Supplement prepared for through-wiring, luminous flux adjustable on luminaire in eight steps

Factory light settings (LS)

LS 1 100% | 19990lm | 163.5W | 122.3lm/W | 4000K
further light settings possible

Operating device

Control ON/OFF Multilumen
Equipment Temp-Guard, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable
mounting bracket steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)
Cover protective disc of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs

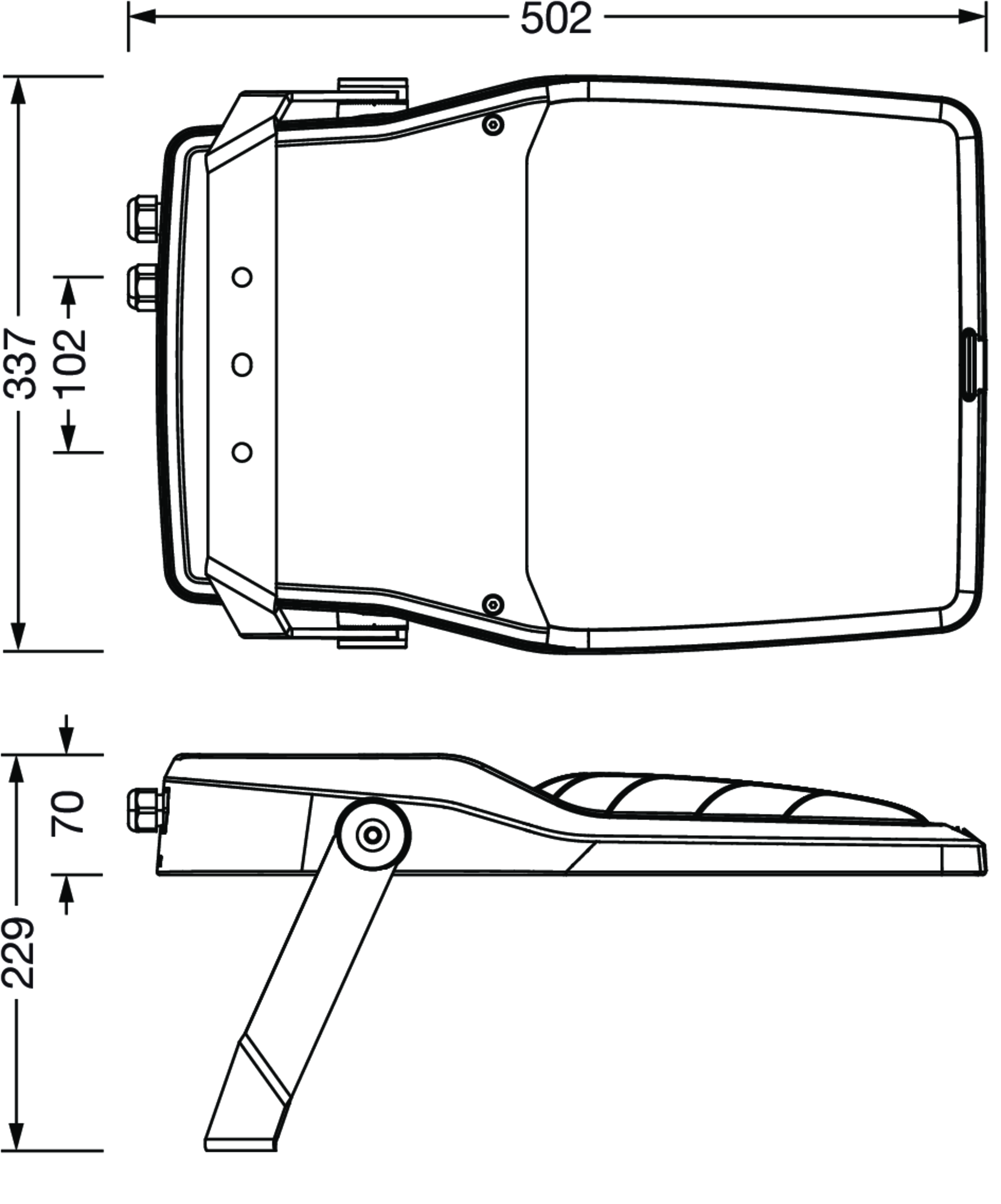

Dimensions, Weight

Weight 7.2kg

Service life

Rated service life 50000h (L95/B10) at AT = 25°C, 100000h (L95/B10) at AT = 15°C
