Article floodlight

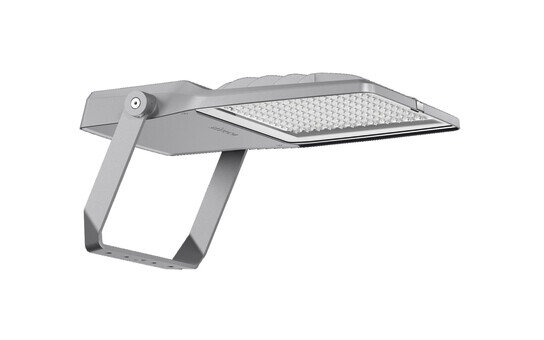

Product name Floodlight FL 21 iQ midi
Lamp LED
Rated luminous flux 28570lm
Luminous efficacy 105.7lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom 270.2W
Pnom end service life 286.6W
Pred at 50% lumin. flux 117.2W
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg

Floodlight FL 21 iQ midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A640002, light emission: direct distribution, installation type: surface-mounted, lamps: LED, rated values: 28.570lm | 270,2W | 105,7lm/W (begin service life); end service life: 28.570lm | 286,6W; at 50% lumin. flux: 14.285lm | 117,2W | 121,9lm/W, colour temperature: 2200K, colour rendering: CRI > 70, light colour: 722, light setting 1 (further light settings possible): 100% | 28.570lm | 270,2W | 105,7lm/W | 2.200K (begin service life); end service life: 286,6W, control gear: iQ Street-Remote/DALI, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Street-Remote, Auto-Match, pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, ball protection: ball impact resistant, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Key data

Product type floodlight
Product name Floodlight FL 21 iQ midi
Order No. 5XA7782F1E1A

Lighting technology

Light control lens of PMMA
Cover protective disc, transparent

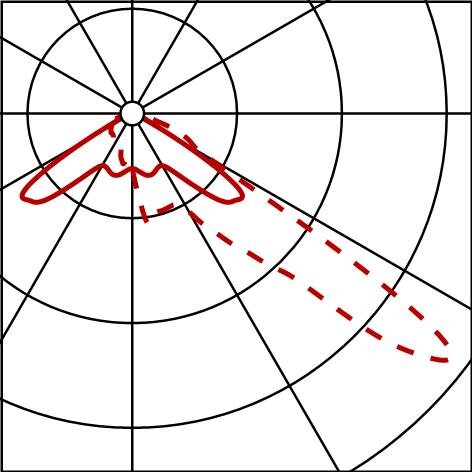

Light distribution A640002
Light emission direct distribution

Lamps

Lamps with LED
Rated values 28570lm | 270.2W | 105.7lm/W (begin service life);
end service life: 28570lm | 286.6W;
at 50% lumin. flux: 14285lm | 117.2W | 121.9lm/W
Colour temperature 2200K
Colour rendering index CRI > 70
Light colour 722
Supplement prepared for through-wiring

Factory light settings (LS)

begin service life
LS 1: 100% | 28570lm | 270.2W | 105.7lm/W | 2200K
end service life
LS 1: 286.6W
further light settings possible

Operating device

Control iQ Street-Remote/DALI
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable
mounting bracket steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)
Cover protective disc of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

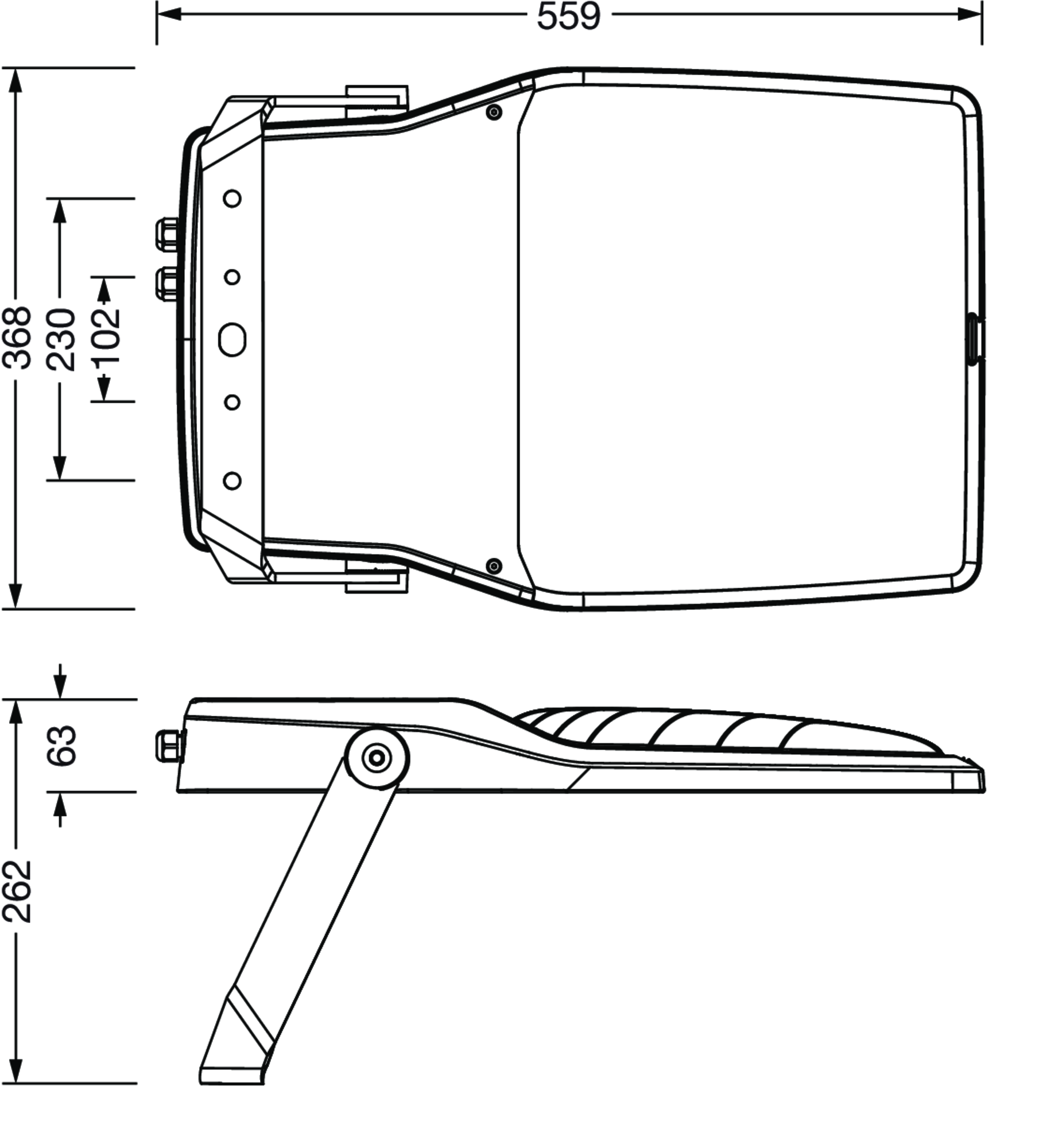

Dimensions, Weight

Weight 13.5kg

Service life

Rated service life 100000h (L94/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 iQ midi

Order No.
5XA7782F1E1A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
A640002

Light emission
direct distribution

Lamps
with LED

Rated values
28570lm | 270.2W | 105.7lm/W (begin service life);
end service life: 28570lm | 286.6W;
at 50% lumin. flux: 14285lm | 117.2W | 121.9lm/W

Colour temperature
2200K

Colour rendering index
CRI > 70

Light colour
722

Supplement
prepared for through-wiring

begin service life

LS 1: 100% | 28570lm | 270.2W | 105.7lm/W | 2200K

end service life

LS 1: 286.6W


further light settings possible

Control
iQ Street-Remote/DALI

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote, pre-setting: linear dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable

mounting bracket
steel, galvanised, powder-coated, SITECO metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
13.5kg

Rated service life
100000h (L94/B10) at AT = 25°C

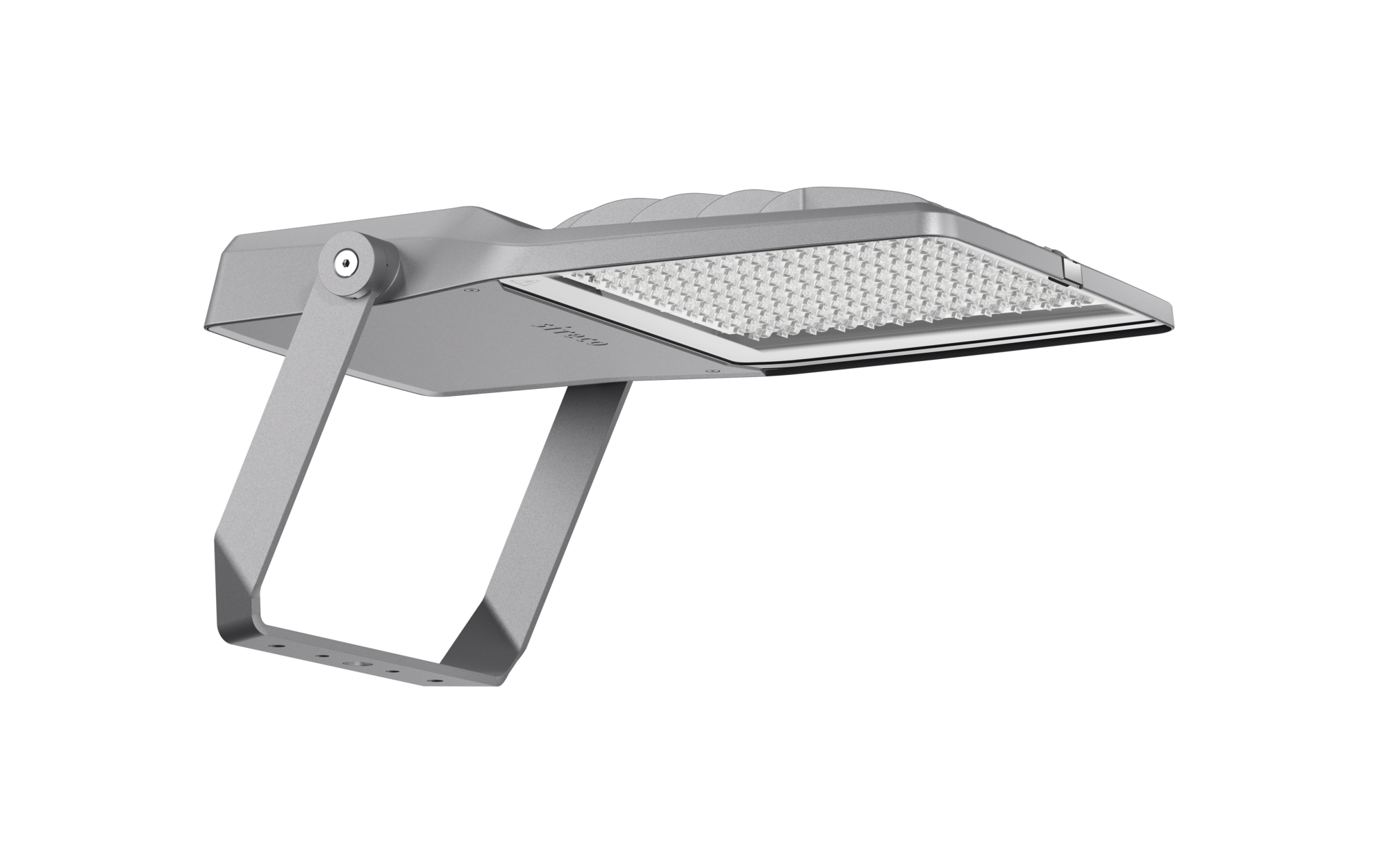

Floodlight FL 21 iQ midi
LED, direct distribution, surface-mounted, to the cross arm, to supporting structure
: LED 2200K / CRI >= 70
