5XA7783F2D1A
Article floodlight
Product name Floodlight FL 21 midi
Lamp LED
Rated luminous flux 37310lm
Luminous efficacy 130.2lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 286.6W
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg

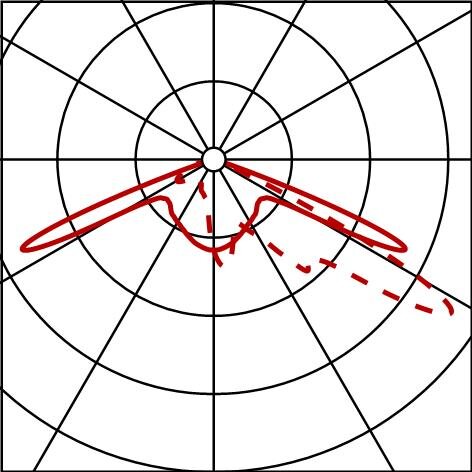

Floodlight FL 21 midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: A520003, light emission: direct distribution, 0% light immission, installation type: surface-mounted, lamps: LED, rated values: 37.310lm | 286,6W | 130,2lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 37.310lm | 286,6W | 130,2lm/W | 3.000Kcontrol gear: ON/OFF Multilumen, control: pre-setting: linear dimming characteristic, Temp-Guard, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: 10kV 1.2/50µs, electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, chlorine-resistant, suitable for swimming pools, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, ball protection: ball impact resistant, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

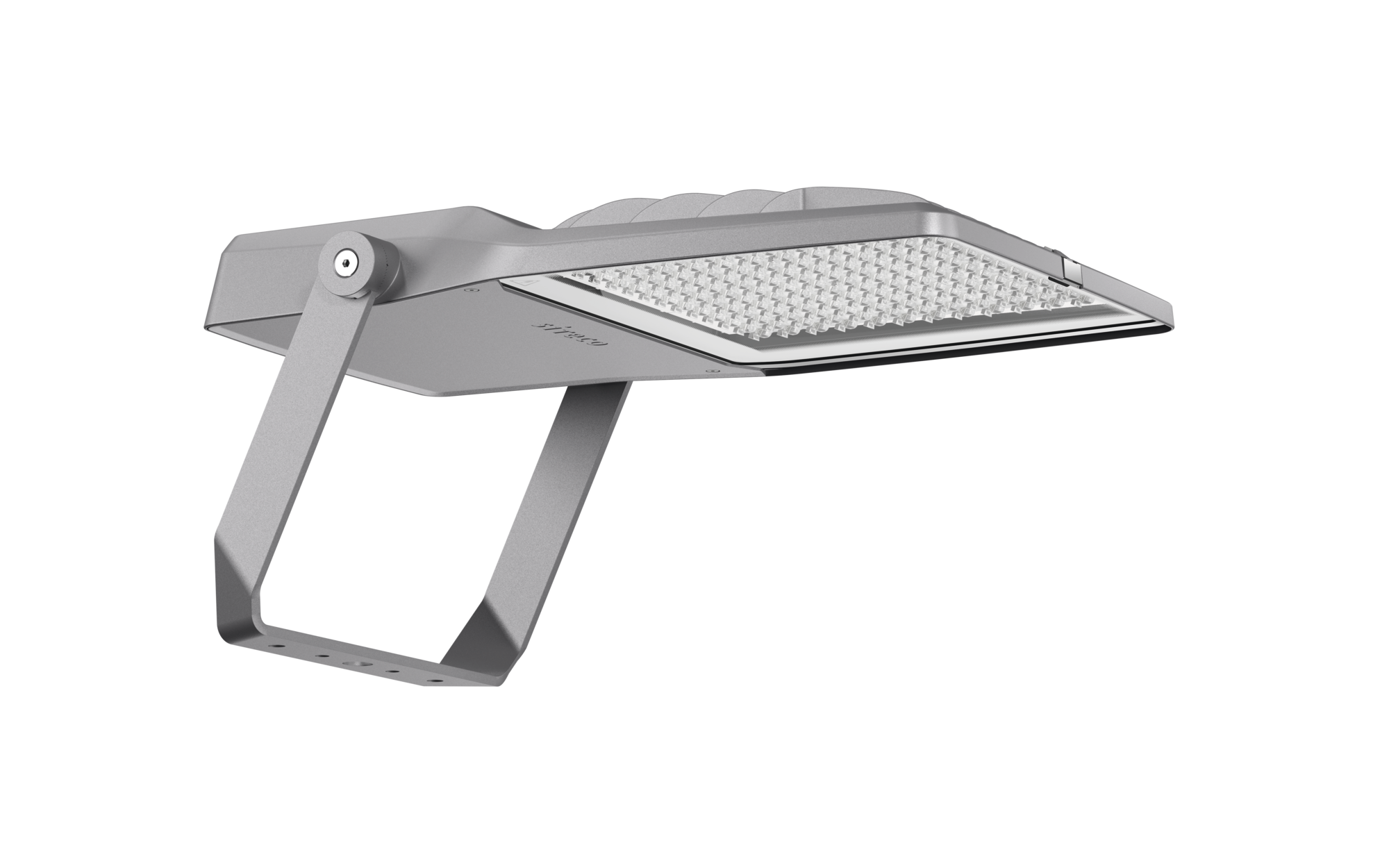

Floodlight FL 21 midi
LED, direct distribution, surface-mounted, to the cross arm, to supporting structure

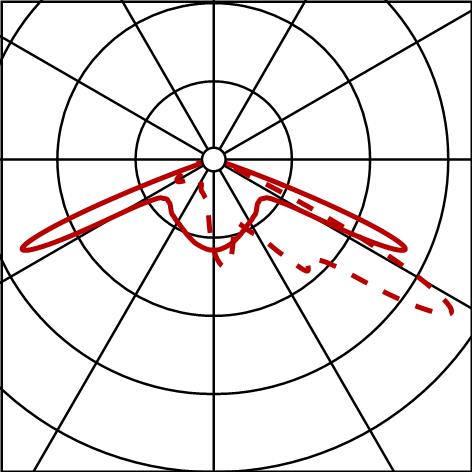

: LED 3000K / CRI >= 70
: 5XA7783F2D1A
