51MQ14WD2T12

: 51MQ14WD2T12

Article office luminaire
Product name Apollon 21 linear
Lamp LED
Rated luminous flux 4200lm
Luminous efficacy 96lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 44W
Service life 100000h (L80) at AT = 25°C
Protection rating IP20
Weight 3.9kg

Apollon 21 linear, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, recessed, LED, rated luminous flux: 4.200lm, luminous efficacy: 96lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 44W, housing, of aluminium, coated, traffic white (RAL 9016), module: M625, length: 1.245mm, width: 307mm, height: 30mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, packaging unit: 1 piece

Downloads

Key data

Product type office luminaire
Product name Apollon 21 linear
Order No. 51MQ14WD2T12

Lighting technology

Cover micro prismatic cover
Beam angle wide distribution, 90°
Symmetry symmetric

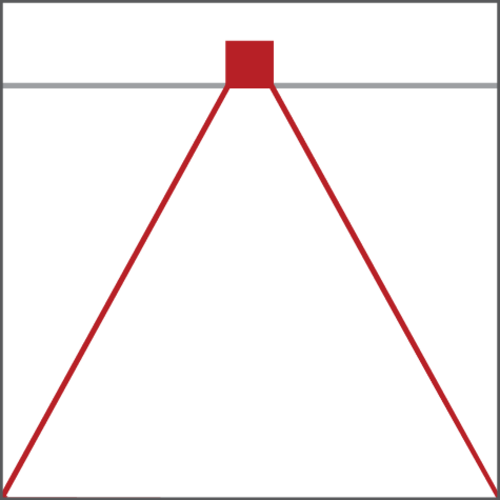

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 4200lm
Luminous efficacy 96lm/W
Colour temperature 2700..6500K
Colour rendering index CRI > 80
Light colour 8tw
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 44W

Operating device

Control DALI DT8

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP50
Insulation class insulation class I (protective earthing)
Certification, designation CE, ENEC

Material, Colour

housing aluminium, coated, traffic white (RAL 9016)
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location recessed, lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 50/60Hz, AC

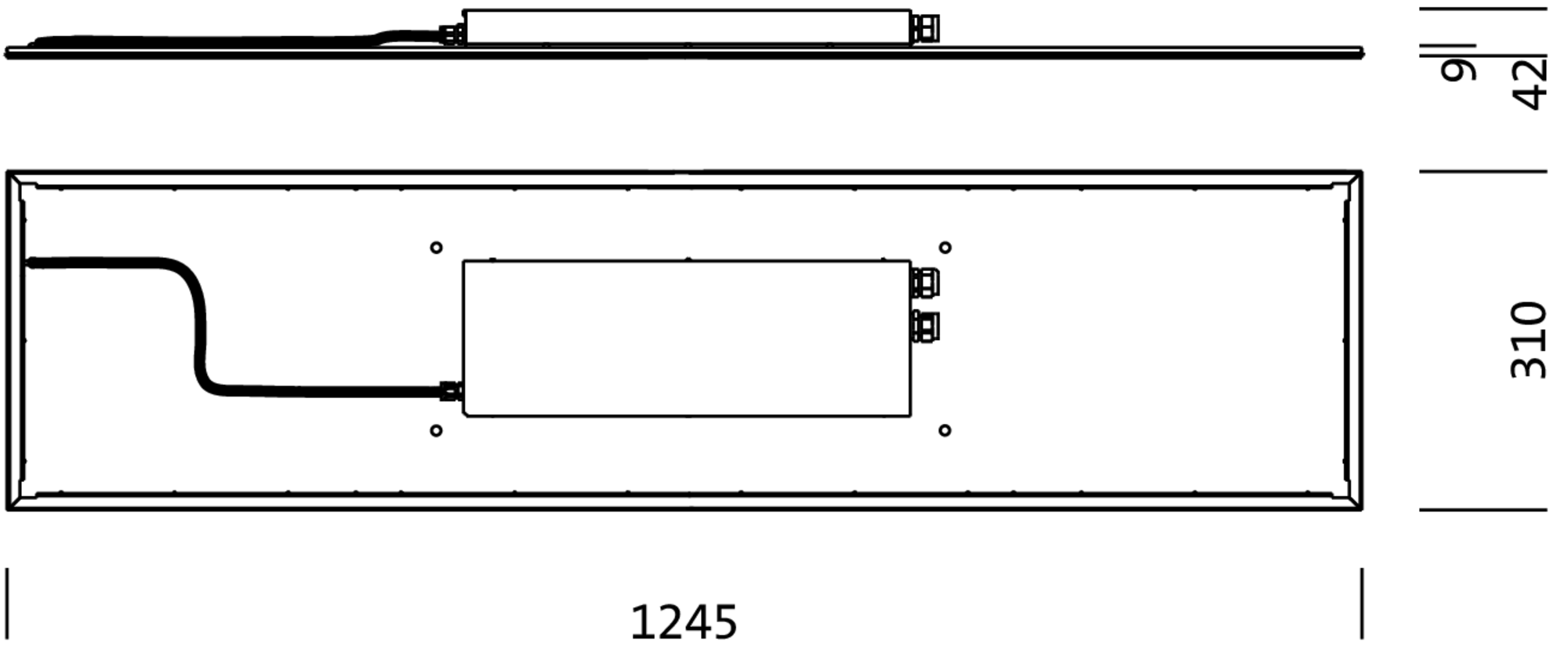

Dimensions, Weight

Length 1245mm
Width 307mm
Height 30mm
Weight 3.9kg

Service life

Rated service life 100000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Apollon 21 linear

Order No.
51MQ14WD2T12

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
4200lm

Luminous efficacy
96lm/W

Colour temperature
2700..6500K

Colour rendering index
CRI > 80

Light colour
8tw

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
44W

Control
DALI DT8

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP50

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, ENEC

housing
aluminium, coated, traffic white (RAL 9016)

housing upper side
sheet steel, galvanised

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
recessed, lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately

Connection
terminal, 5-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1245mm

Width
307mm

Height
30mm

Weight
3.9kg

Rated service life
100000h (L80) at AT = 25°C

Apollon 21 linear
office luminaire, traffic white (RAL 9016), DALI DT8, 4200lm, 8tw, 1245x307mm, for M625 and for cut ceiling aperture, Connection: terminal

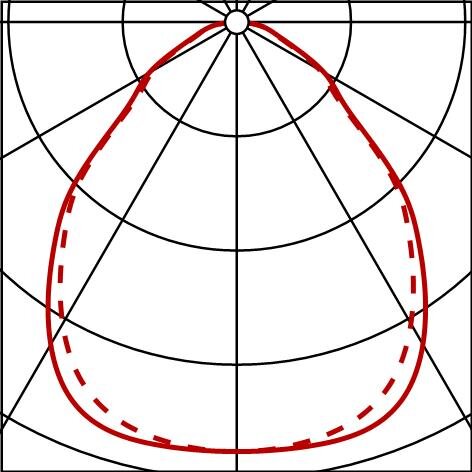

: LED 2700K / CRI >= 80, individual setting: colour temperature 2700K
: 51MQ14WD2T12

Apollon 21 linear

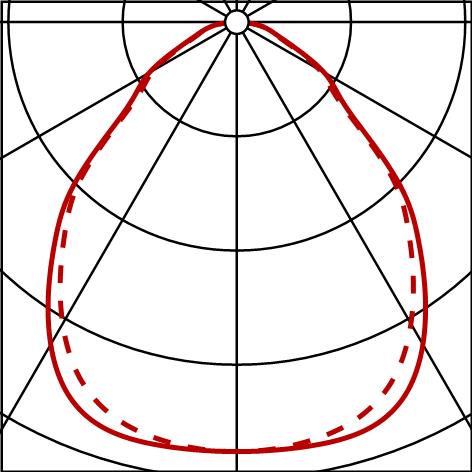

: LED 6500K / CRI >= 80, individual setting: colour temperature 6500K
: 51MQ14WD2T12
