51MY52HMTCW
Article floorstanding luminaire

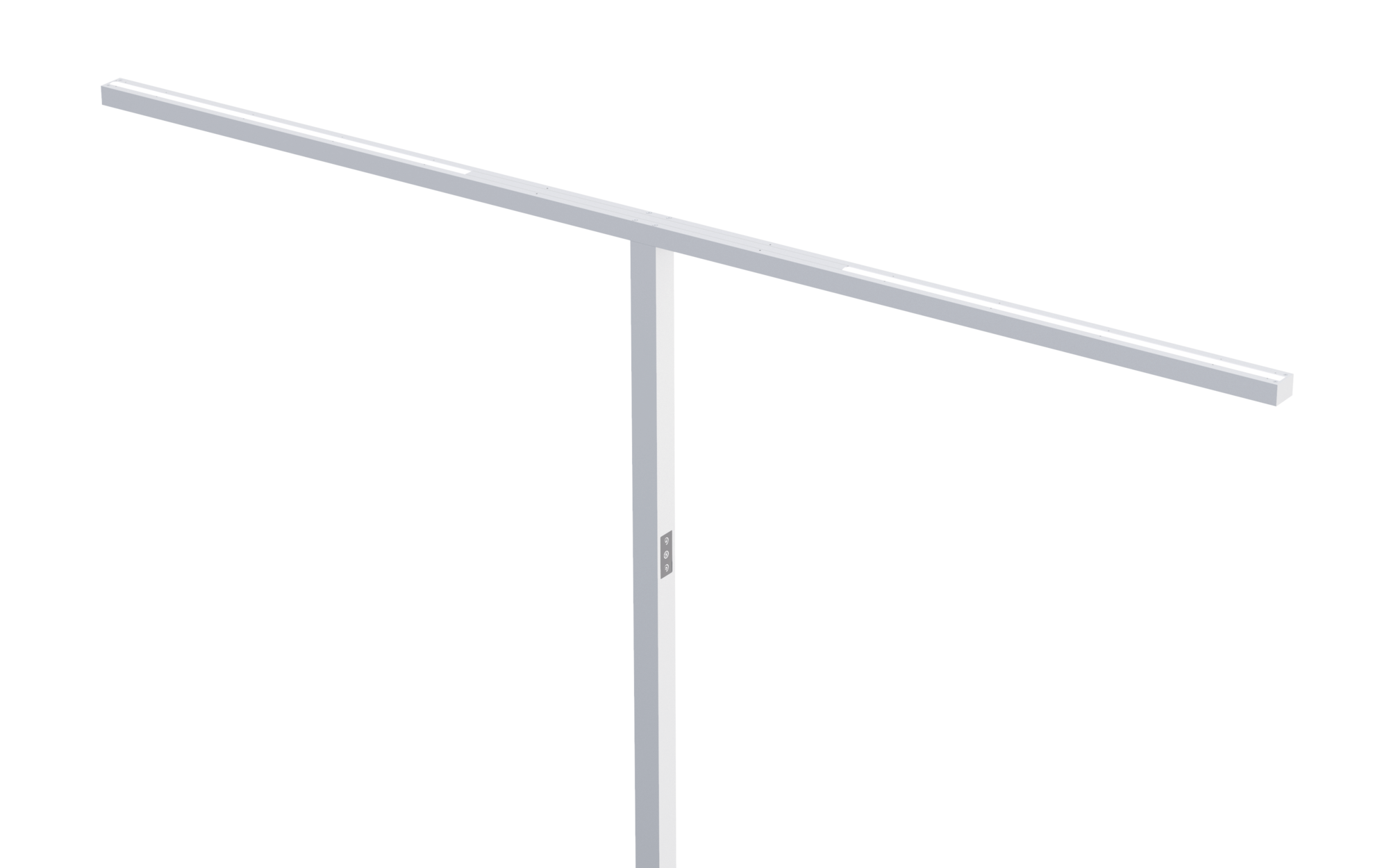

Product name Silica 31 Floor duo
Lamp LED
Rated luminous flux 17040lm
Luminous efficacy 120lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 142W
Service life 100000h (L80/B10) at AT = 25°C
Protection rating IP20
Weight 18.1kg

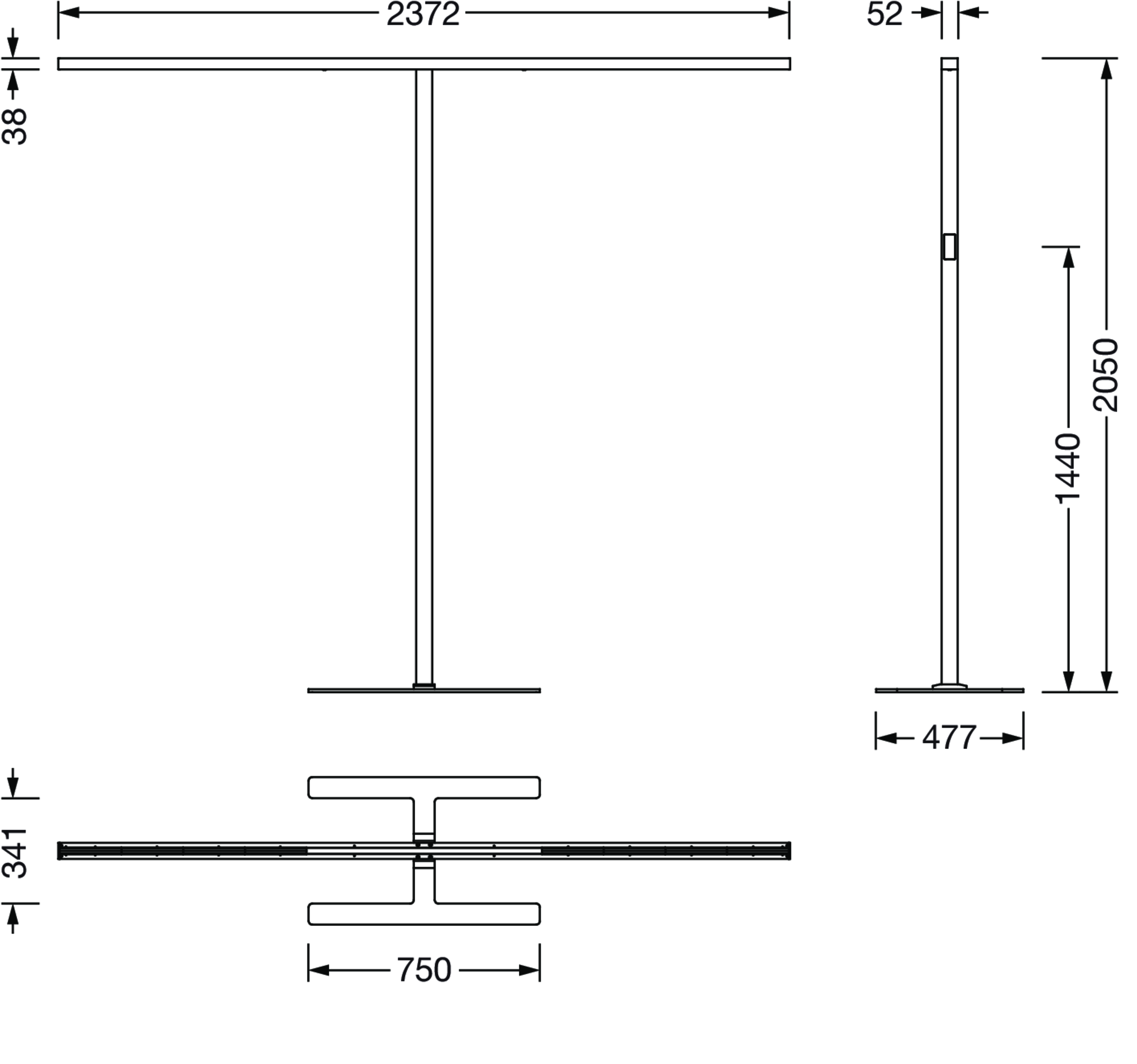

Silica 31 Floor duo, floorstanding luminaire, secondary optical cover: cover panel, of PMMA, light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: not mounted, LED, rated luminous flux: 17.040lm, luminous efficacy: 120lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: Touchdim, daylight-dependent control, with cable with plug, mains connection: 230V, AC, 50Hz, connection cable included, cable length: 2,5m, rated input power: 142W, luminaire head, of aluminium, coated, traffic white (RAL 9016), length: 2.372mm, width: 52mm, supporting column, angular, of aluminium, coated, traffic white (RAL 9016), baseplate, of steel, coated, traffic white (RAL 9016), local control - self-sufficient standalone sensors, direct and indirect component separately switchable, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, permissible operating ambient temperature: -20..+40°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Sil31Fl-d
17040lm8tw,Tdi,PIR-sens,wh
Lamps: LED 4000K / CRI >= 80, factory setting
Order No.: 51MY52HMTCW
