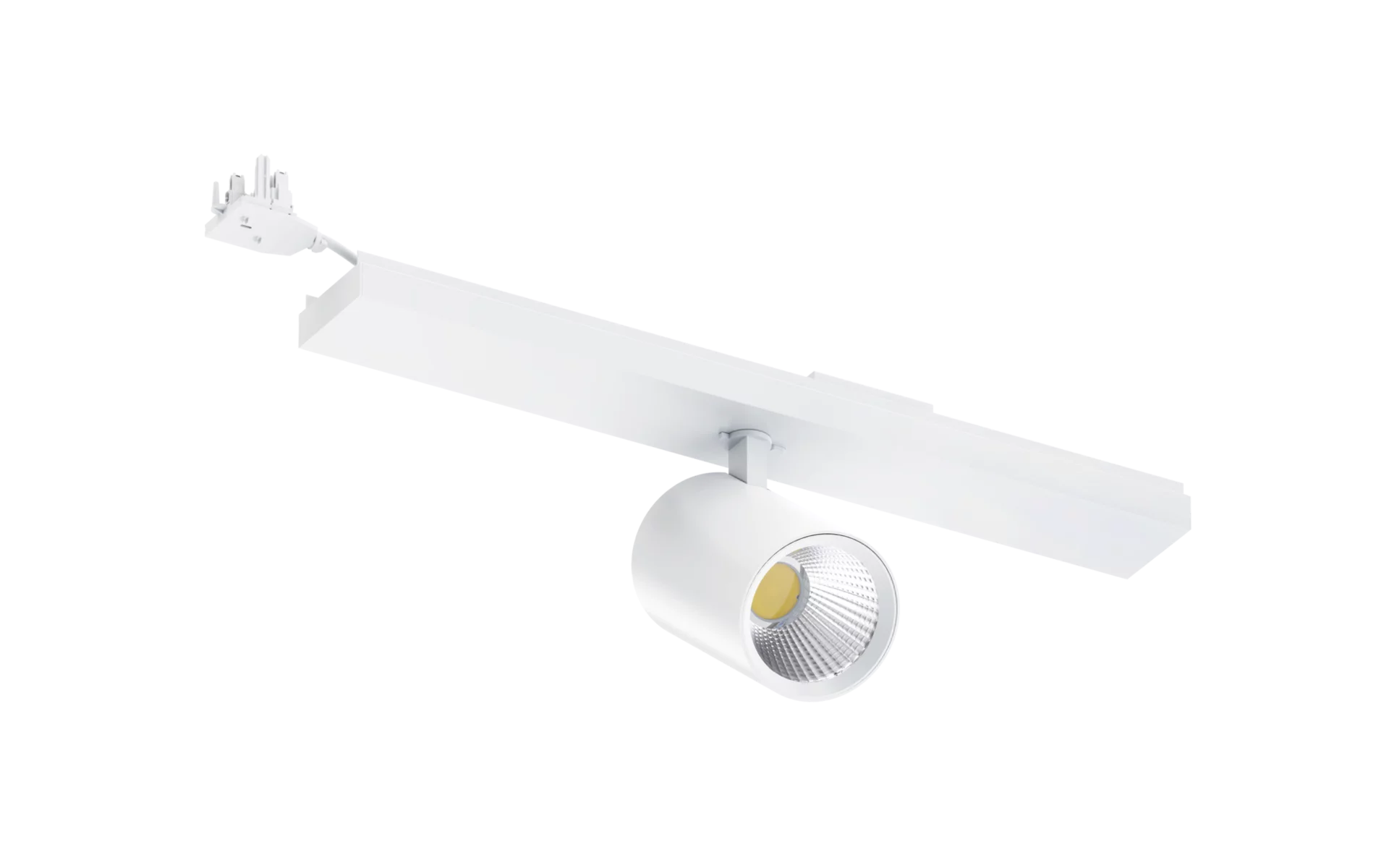

Spot 21, medium distribution, DALI 2, Multilumen, Ø90, traffic white (RAL 9016)

: 51SM13DB11B2C

Article directional spotlight
Product name Spot 21
Lamp LED
Rated luminous flux 4015lm
Luminous efficacy 130lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 31W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 1.4kg

Spot 21, directional spotlight, light control with lens, of plastic, beam angle: medium distribution, LED rated luminous flux: 4.015lm, light colour: 930, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, of aluminium, traffic white (RAL 9016), diameter: 90mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, standard: EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data), packaging unit: 1 piece

Downloads

Key data

Product type directional spotlight
Product name Spot 21
Order No. 51SM13DB11B2C

Lighting technology

Light control lens of plastic

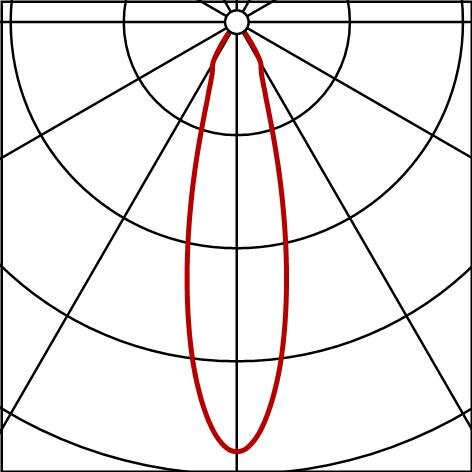

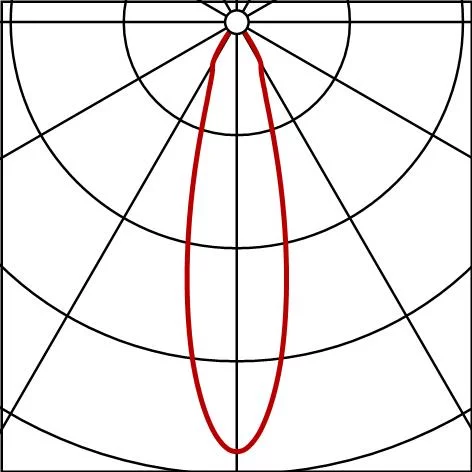

Beam angle medium distribution
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 4015lm
Luminous efficacy 130lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 31W

Operating device

Control DALI 2, Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Standard EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)
Certification, designation CE

Mounting

Mounting method, mounting location slip-in mounting, in the Modario trunking rail

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

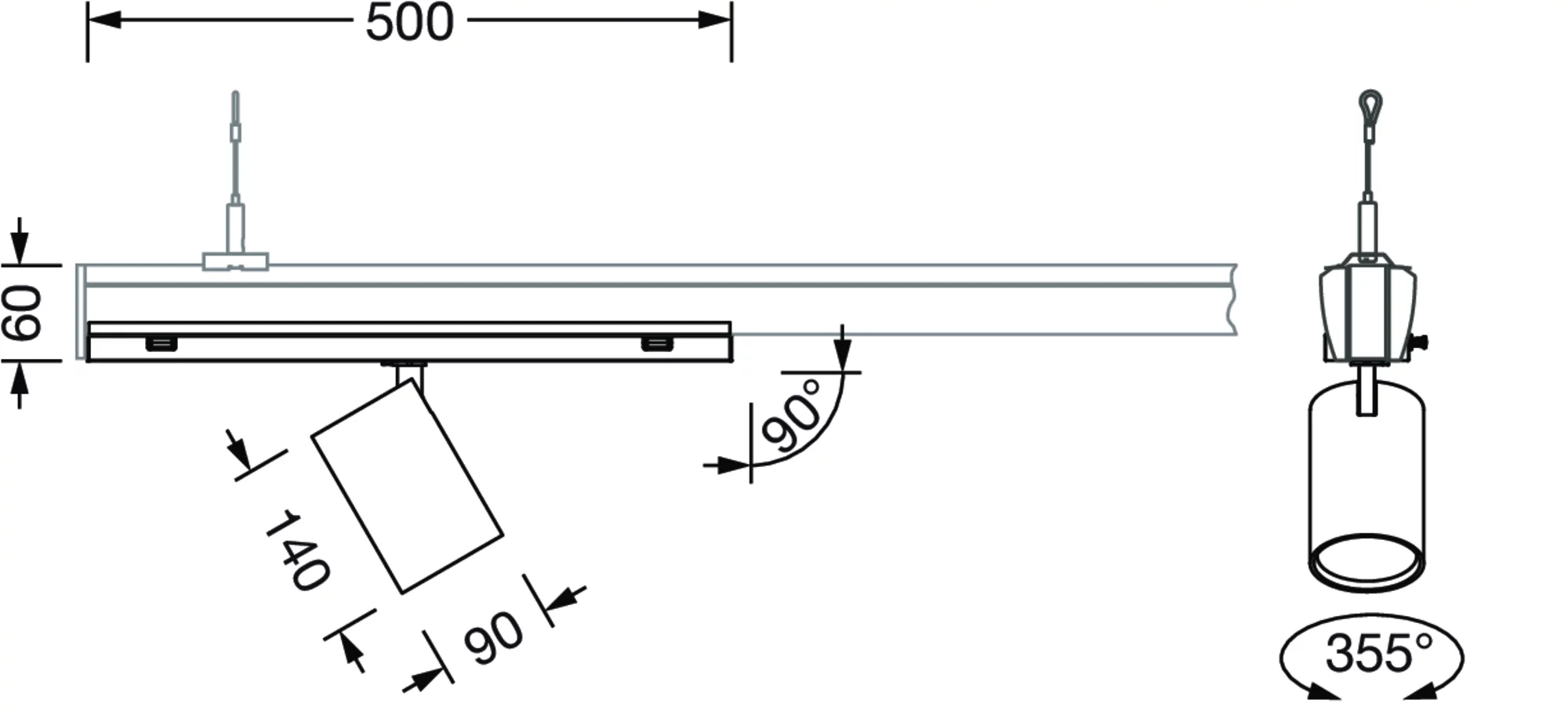

Dimensions, Weight

Diameter 90mm
Weight 1.4kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 21

Order No.
51SM13DB11B2C

Light control
lens of plastic

Beam angle
medium distribution

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
4015lm

Luminous efficacy
130lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
31W

Control
DALI 2, Multilumen

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Standard
EPBD ready: DALI 2 ECG, certified according to IEC62386, parts 251 (Luminaire Data), 252 (Energy Data), 253 (Diagnostics & Maintenance Data)

Certification, designation
CE

Mounting method, mounting location
slip-in mounting, in the Modario trunking rail

Connection
plug, 5-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
90mm

Weight
1.4kg

Rated service life
50000h (L80/B50) at AT = 25°C

Spot21
med,4015lm930,DA2ML,90,wh
: LED 3000K / CRI >= 90
: 51SM13DB11B2C
