51TH3WDD36XA

Order No.: 51TH3WDD36XA
Remember articleRemember article

Article luminaire insert
Product name Licross Wallwasher
Lamp LED
Rated luminous flux 5030lm
Luminous efficacy 112lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 45W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 1.5kg

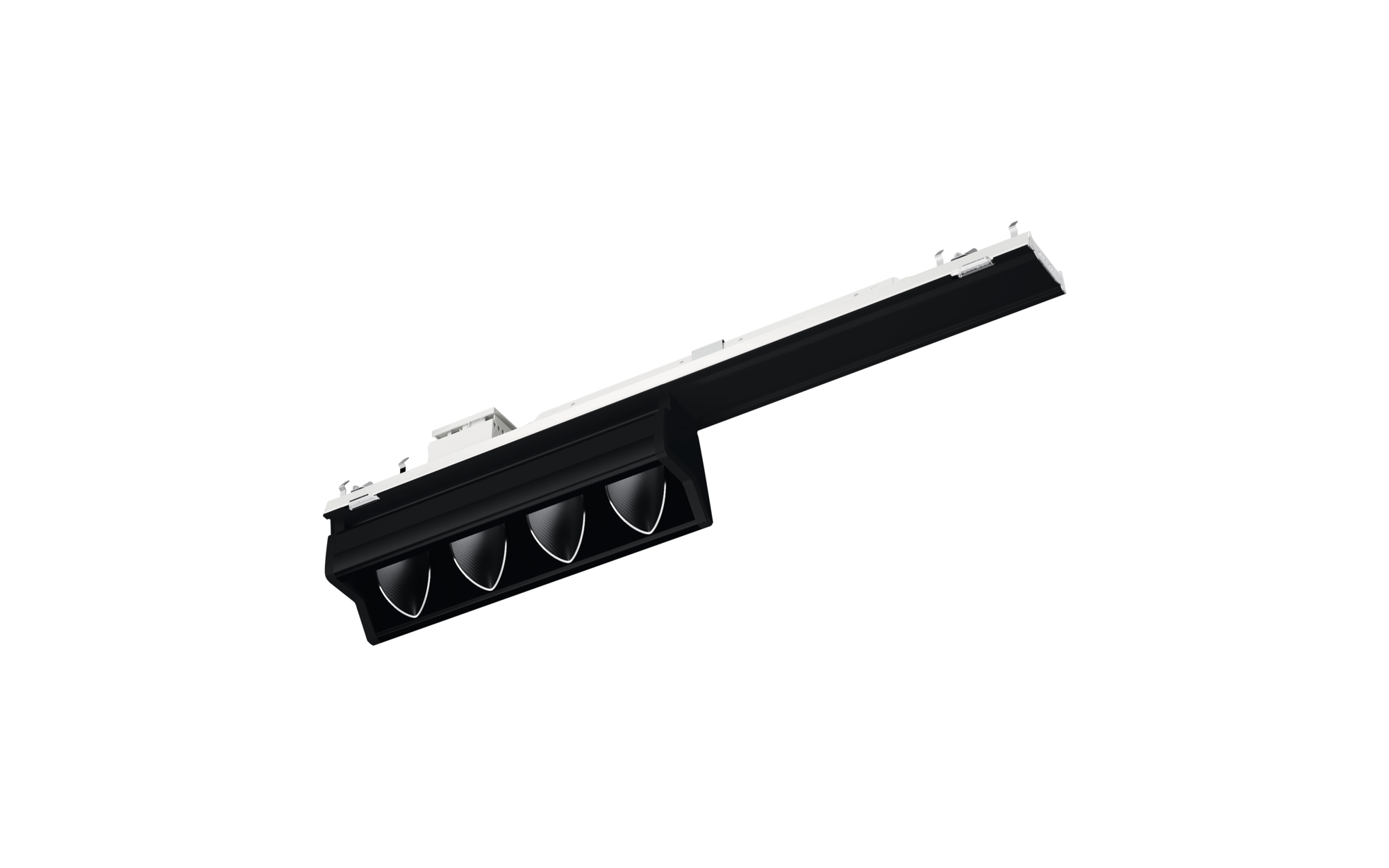

Licross Wallwasher, luminaire insert, of sheet steel, coil coated, jet black (RAL 9005), reflector, of aluminium section, jet black (RAL 9005), blank cover, of PC/ABS, black, length: 600mm, width: 72mm, LED rated luminous flux: 5.030lm, light colour: 830, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: DALI, control gear: ECG DALI, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC/DC, 50/60Hz, rated input power: 45W, of plastic, silver coated, primary light characteristic: asymmetric, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Licross Wallwasher
Order No. 51TH3WDD36XA

Lighting technology

Beam angle wallwasher
Symmetry asymmetric distribution

Lamps

Lamps with LED
Rated luminous flux 5030lm
Luminous efficacy 112lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 45W

Operating device

Control gear ECG DALI
Control DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE, UKCA

Material, Colour

Licross LED insert sheet steel, coil coated, jet black (RAL 9005)
reflector aluminium section, jet black (RAL 9005)
blank cover PC/ABS, black

Mounting

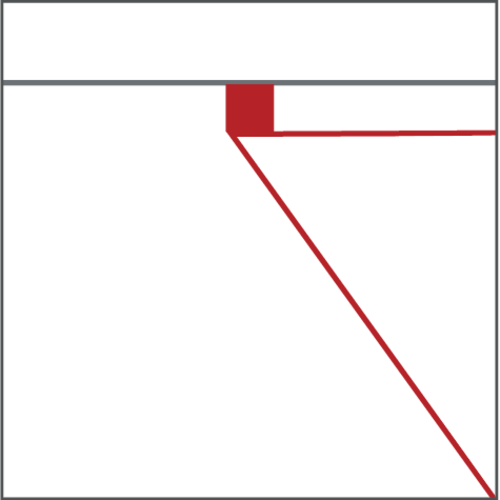

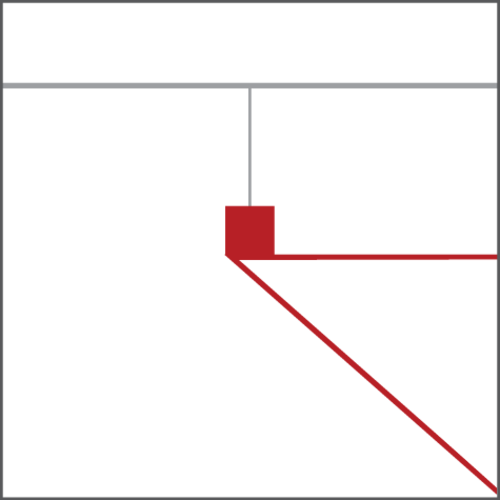

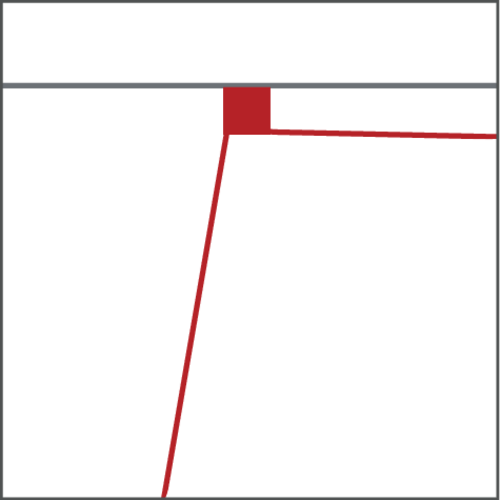

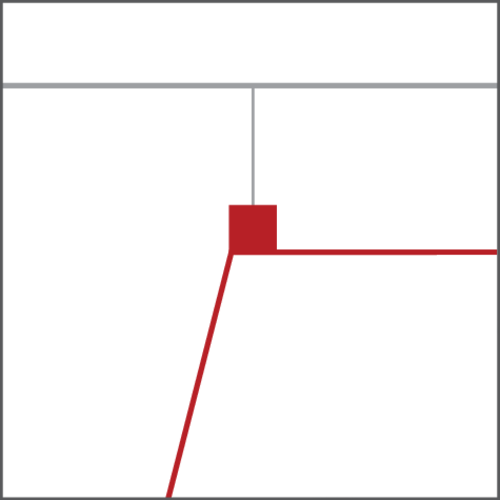

Mounting method, mounting location slip-in mounting, in the Licross trunking rail
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC/DC

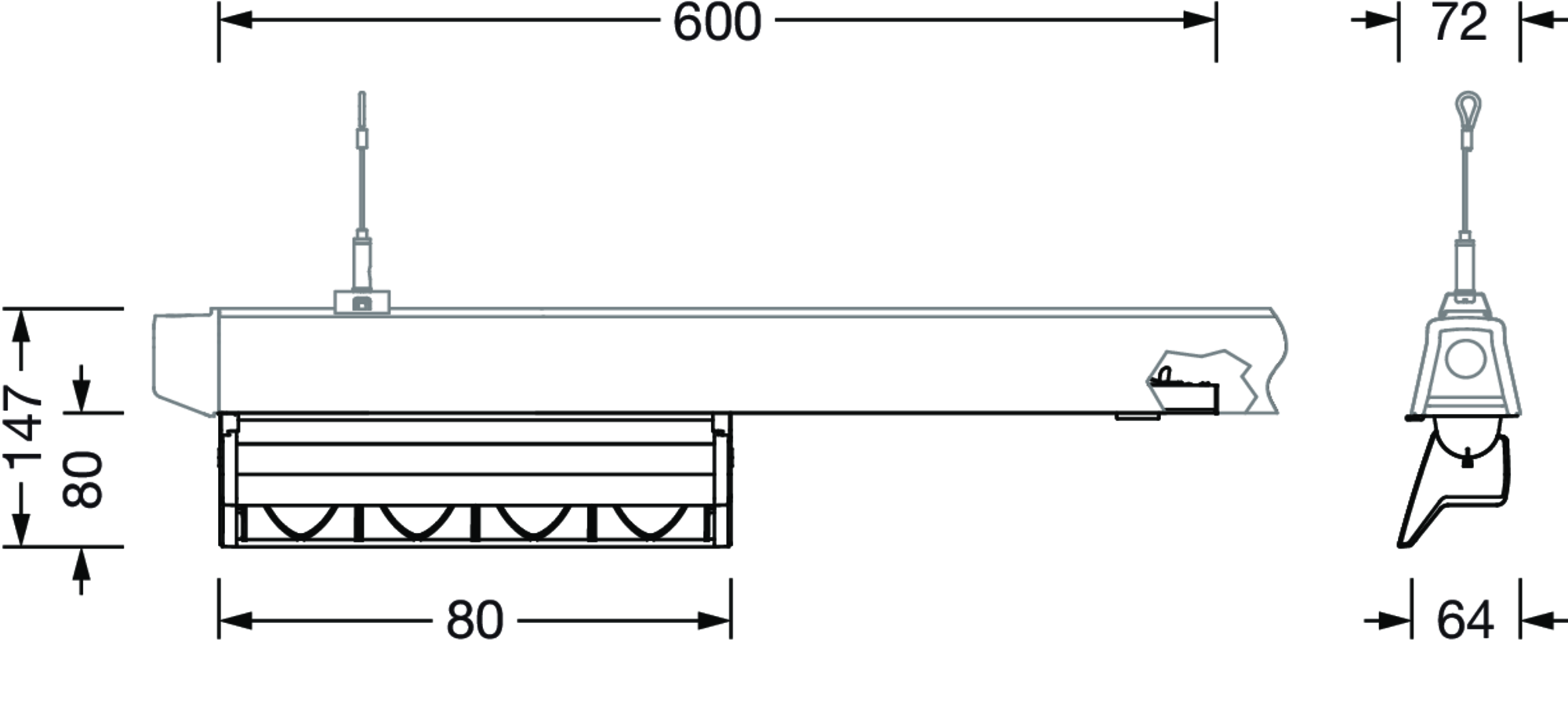

Dimensions, Weight

Length 600mm
Width 72mm
Weight 1.5kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
luminaire insert

Product name
Licross Wallwasher

Order No.
51TH3WDD36XA

Beam angle
wallwasher

Symmetry
asymmetric distribution

Lamps
with LED

Rated luminous flux
5030lm

Luminous efficacy
112lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
45W

Control gear
ECG DALI

Control
DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, UKCA

Licross LED insert
sheet steel, coil coated, jet black (RAL 9005)

reflector
aluminium section, jet black (RAL 9005)

blank cover
PC/ABS, black

Mounting method, mounting location
slip-in mounting, in the Licross trunking rail

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC/DC

Length
600mm

Width
72mm

Weight
1.5kg

Rated service life
50000h (L80/B50) at AT = 25°C

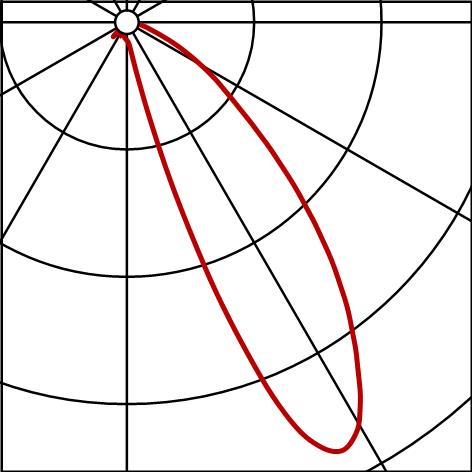

Photometric report / planning data

LicWW
LI,asy,WW,5030lm830,DA,bk
Lamps: LED 3000K / CRI >= 80
Order No.: 51TH3WDD36XA

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
