59MX2BD100SA

: 59MX2BD100SA

Article sensor
Product name Silica 21
Protection rating IP20
Weight 0.2kg

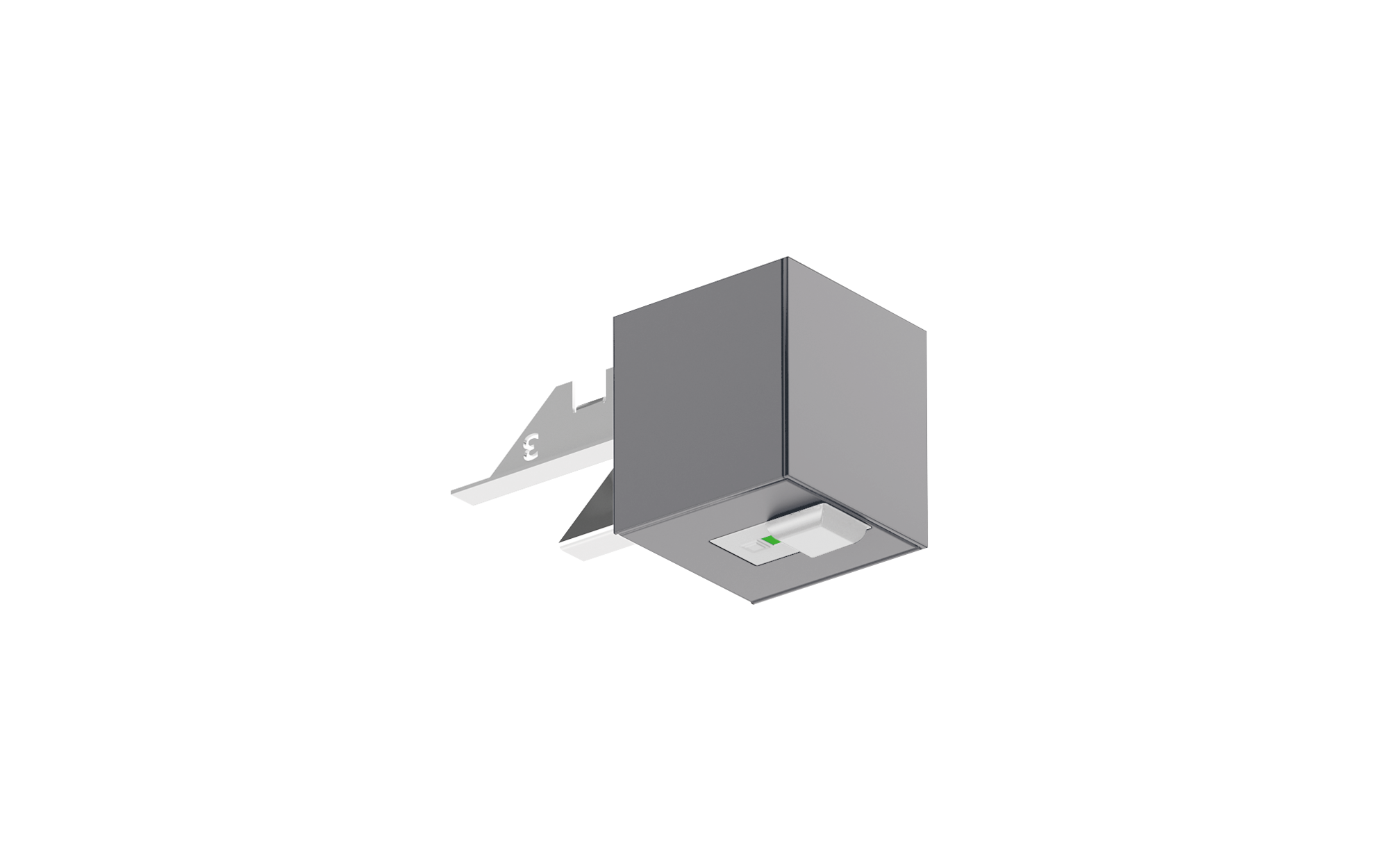

Silica 21sensor PC2, slave, central control - connection to lighting or building management, dimmable, installation arrangement: single/continuous arrangement, installation type: slip-in mounting, installation location: to the Silica 21 luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, 1 x LED red/green, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect 11, SITECO Connect 21B, SITECO Connect 21H, SITECO Connect 31 Office
Product type sensor
Product name Silica 21
Order No. 59MX2BD100SA

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, anodised, metallic grey (RAL 9006), for luminaires with opal or prismatic cover

Mounting

Mounting method, mounting location slip-in mounting, to the Silica 21 luminaire
Mounting height 2.5..5m
Arrangement single/continuous arrangement
Supplement for surface-mounted luminaires, for pendant luminaires

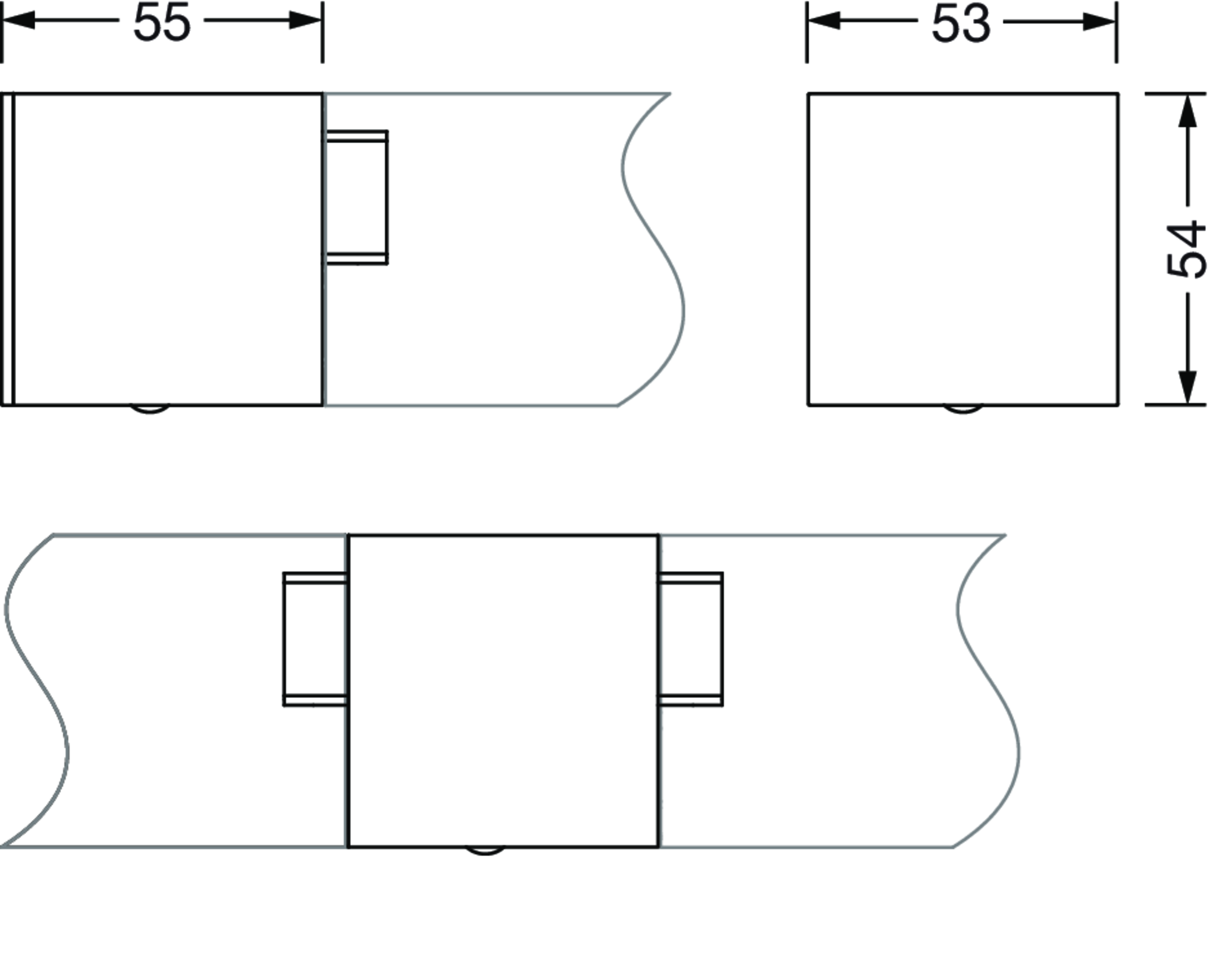

Dimensions, Weight

Length 55mm
Width 53mm
Height 54mm
Weight 0.2kg

Inputs

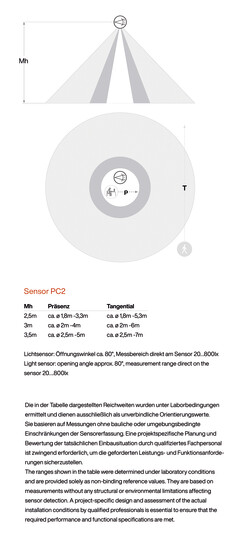

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°
Detection range tangential approx. ø1.8m..7m
Detection range approx. ø1.8m..5m
Option detection range can be limited in stages using extendable lens covers (2x 180°)
Feature circular detection area

1x light sensor
Illuminance 20..800lx (directly at sensor)

Outputs

1x LED red/green
Feature for displaying initialization

System family
SITECO Connect 11, SITECO Connect 21B, SITECO Connect 21H, SITECO Connect 31 Office

Product type
sensor

Product name
Silica 21

Order No.
59MX2BD100SA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, metallic grey (RAL 9006), for luminaires with opal or prismatic cover

Mounting method, mounting location
slip-in mounting, to the Silica 21 luminaire

Mounting height
2.5..5m

Arrangement
single/continuous arrangement

Supplement
for surface-mounted luminaires, for pendant luminaires

Length
55mm

Width
53mm

Height
54mm

Weight
0.2kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
tangential approx. ø1.8m..7m

Detection range
approx. ø1.8m..5m

Option
detection range can be limited in stages using extendable lens covers (2x 180°)

Feature
circular detection area

1x light sensor

Illuminance
20..800lx (directly at sensor)

1x LED red/green

Feature
for displaying initialization
