5EA3BH01

: 5EA3BH01

Article Smart Plug Box
Product name SITECO Connect Wireless
Protection rating IP65
Weight 0.4kg

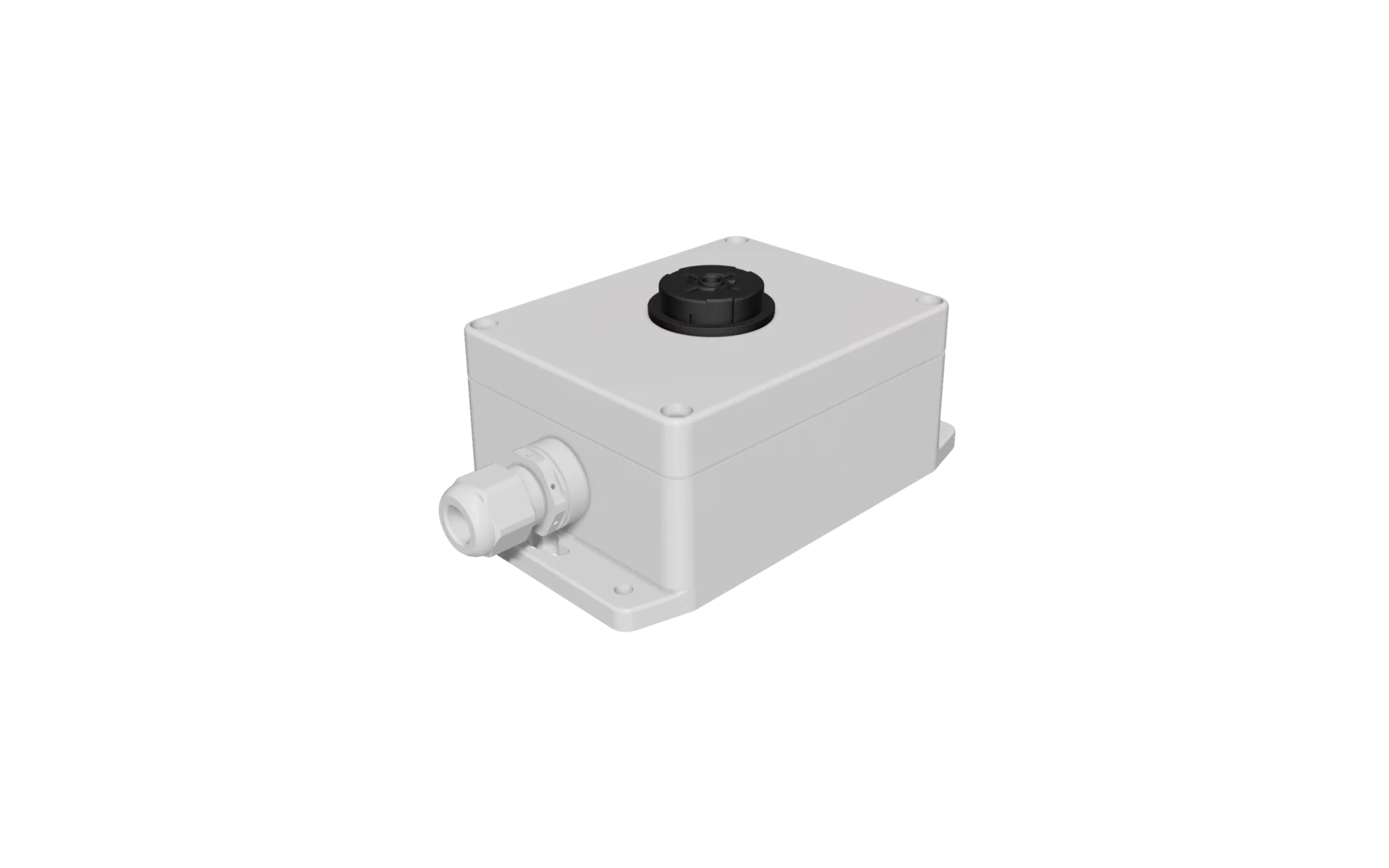

SITECO Connect Wireless, Smart Plug Box, installation type: surface-mounted, mains connection: 230V, AC/DC, surface-mounted housing, of plastic, bright grey, length: 158mm, width: 92mm, height: 65mm, Smart Plug Box, with integrated voltage converter (90..264V AC/24V DC), protection rating (complete): IP65, certification: CE, permissible operating ambient temperature for outdoor applications: -40..+70°C, standard: according to Zhaga book 18, packaging unit: 1 piece

Downloads

Key data

System family SITECO Connect
Product type Smart Plug Box
Product name SITECO Connect Wireless
Order No. 5EA3BH01

Certificates, Standards

Protection rating IP65
Temperature range (operation) -40..+70°C
Standard according to Zhaga book 18
Certification, designation CE

Material, Colour

surface-mounted housing plastic, bright grey

Mounting

Mounting method, mounting location surface-mounted, in an electrical distributor, to the ceiling / to the wall

Electrical connection

Nominal voltage 230V, AC/DC

Dimensions, Weight

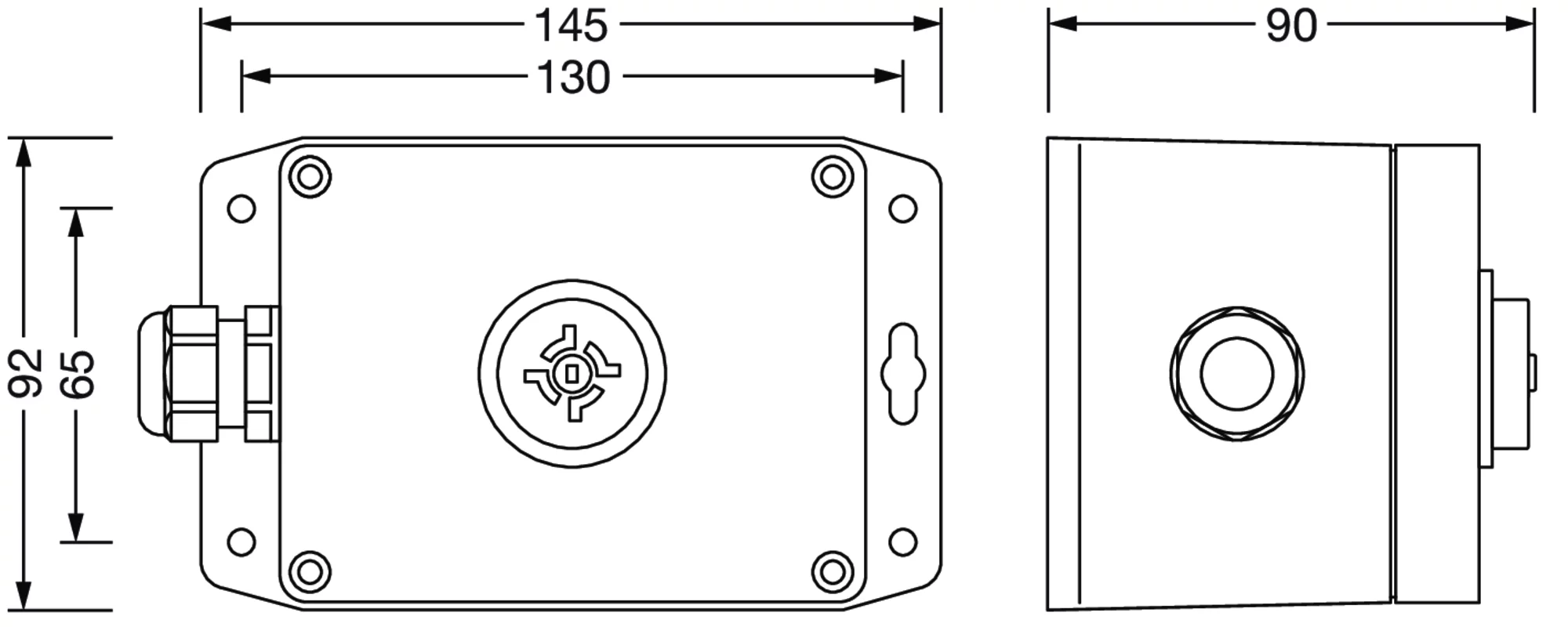

Length 158mm
Width 92mm
Height 65mm
Weight 0.4kg

System family
SITECO Connect

Product type
Smart Plug Box

Product name
SITECO Connect Wireless

Order No.
5EA3BH01

Protection rating
IP65

Temperature range (operation)
-40..+70°C

Standard
according to Zhaga book 18

Certification, designation
CE

surface-mounted housing
plastic, bright grey

Mounting method, mounting location
surface-mounted, in an electrical distributor, to the ceiling / to the wall

Nominal voltage
230V, AC/DC

Length
158mm

Width
92mm

Height
65mm

Weight
0.4kg
