5LZ980300

Order No.: 5LZ980300
Remember articleRemember article

Article control unit
Product name SITECO Connect Wireless
Protection rating IP20
Weight 0.1kg

SITECO Connect Wirelessrelay unit, control unit, master, local control - self-sufficient standalone sensors, switchable, installation type: recessed, installation location: in the ceiling, of plastic, voltage: 230V, 1 x DALI, 1 x Bluetooth interface, 1 x switching contact, feature: number of ECG's depends of the ECG type, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect Wireless
Product type control unit
Product name SITECO Connect Wireless
Order No. 5LZ980300

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing plastic, white
housing plastic, white

Mounting

Mounting method, mounting location recessed, in the ceiling
Supplement only suitable for use in indoor areas

Electrical connection

Nominal voltage 230V, 50/60Hz

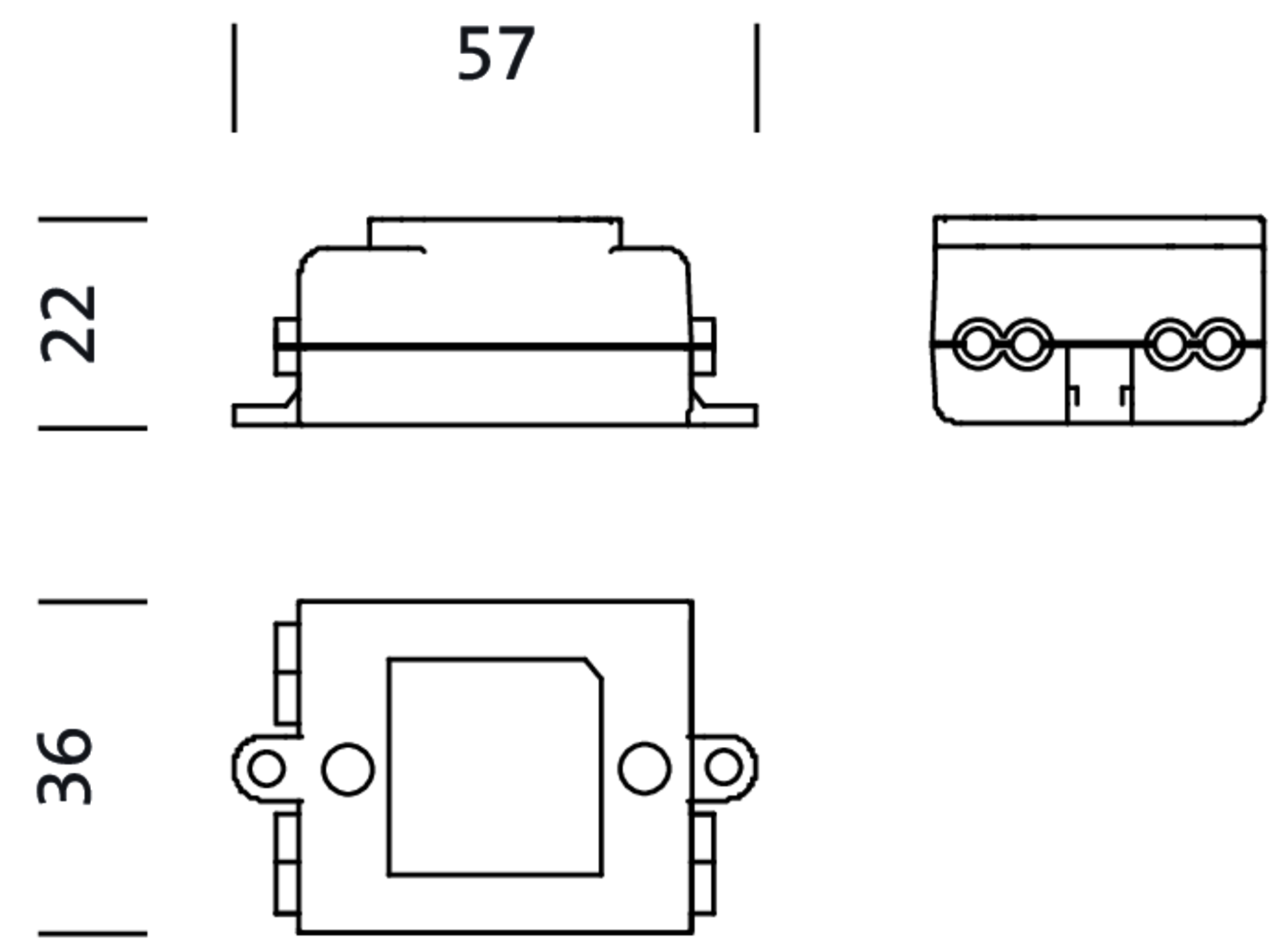

Dimensions, Weight

Length 57mm
Width 36mm
Height 22mm
Weight 0.1kg

Outputs

1x DALI
System current max. 2mA
Feature DALI, master function, broadcast addressing, max. 1 DALI ECG

1x Bluetooth interface
Feature wireless networking

1x switching contact
Feature number of ECG's depends of the ECG type

System family
SITECO Connect Wireless

Product type
control unit

Product name
SITECO Connect Wireless

Order No.
5LZ980300

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
plastic, white

housing
plastic, white

Mounting method, mounting location
recessed, in the ceiling

Supplement
only suitable for use in indoor areas

Nominal voltage
230V, 50/60Hz

Length
57mm

Width
36mm

Height
22mm

Weight
0.1kg

1x DALI

System current
max. 2mA

Feature
DALI, master function, broadcast addressing, max. 1 DALI ECG

1x Bluetooth interface

Feature
wireless networking

1x switching contact

Feature
number of ECG's depends of the ECG type
