5PJDN11MB1G30B
Article wall and ceiling luminaire
Product name Rondel 31
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy 120lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 21W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP40
Impact resistance IK02
Weight 1.3kg

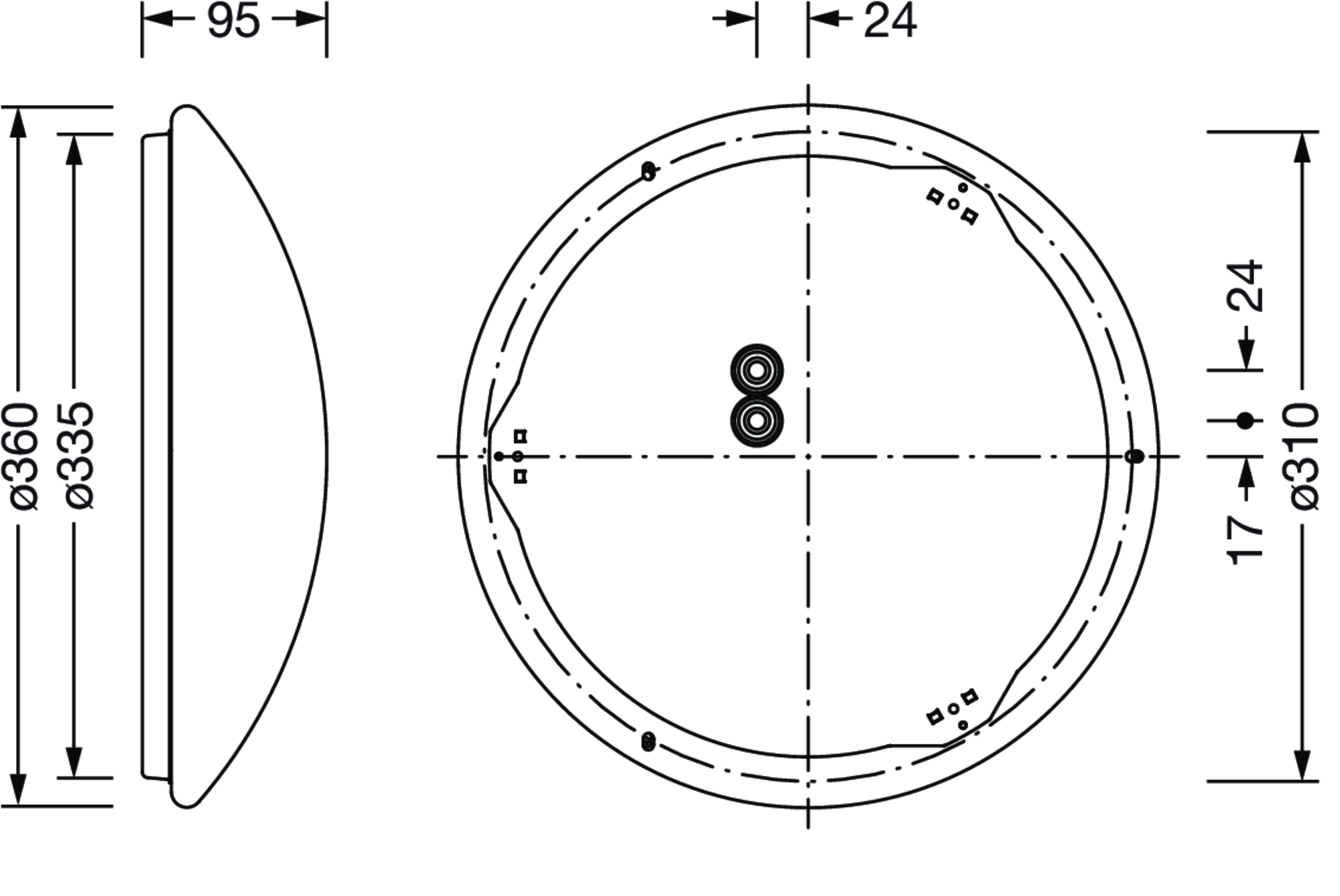

Rondel 31, wall and ceiling luminaire, primary optical cover: enclosure, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.000lm, luminous efficacy: 120lm/W, light colour: 830/840, colour temperature: 3000/4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 21W, luminaire housing, round, of steel, white, diameter: 360mm, height: 95mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: -20..+25°C, packaging unit: 1 piece
