5XA5295MF14H

: 5XA5295MF14H

Article light pillar
Product name City-Light 260 iQ
Lamp LED
Rated luminous flux 1540lm
Luminous efficacy 130.5lm/W
Colour temperature 2700K
Colour rendering CRI > 70
Pnom 11.8W
Pnom end service life 12.1W
Pred at 50% lumin. flux 6W
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 21.0kg

City-Light 260 iQ, light pillar, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, partly coated, light distribution: S120002, primary beam angle: wide distribution, primary light characteristic: asymmetric, installation location: on planted section, on foundation, lamps: LED, rated values: 1.540lm | 11,8W | 130,5lm/W (begin service life); end service life: 1.540lm | 12,1W; at 50% lumin. flux: 770lm | 6W | 128,3lm/W, colour temperature: 2700K, colour rendering: CRI > 70, light colour: 727, light setting 1 (further light settings possible): 100% | 1.540lm | 11,8W | 130,5lm/W | 2.700K (begin service life); end service life: 12,1W, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, electrical block identical with that of LANTERN and MUSHROOM LUMINAIRE, electronic type plate, luminaire housing, cylindrical, of extruded aluminium section, coated, SITECO metallic grey (DB 702S), length: 2.600mm, diameter: 200mm, Module 540 iQ-SR, matt traffic white (RAL 9016), equipment: Standard, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

Downloads

Key data

Product type light pillar
Product name City-Light 260 iQ
Order No. 5XA5295MF14H

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent, partly coated
Light distribution S120002
Beam angle wide distribution
Symmetry asymmetric distribution

Lamps

Lamps with LED
Rated values 1540lm | 11.8W | 130.5lm/W (begin service life);
end service life: 1540lm | 12.1W;
at 50% lumin. flux: 770lm | 6W | 128.3lm/W
Colour temperature 2700K
Colour rendering index CRI > 70
Light colour 727
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 1540lm | 11.8W | 130.5lm/W | 2700K
end service life
LS 1: 12.1W
further light settings possible

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP65
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing extruded aluminium section, coated, SITECO metallic grey (DB 702S), cylindrical
Module 540 iQ-SR matt traffic white (RAL 9016)
Cover cover of PMMA

Electrical connection

Connection terminal, 6-pole, max. 2.5mm², solid wire, fine wire
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

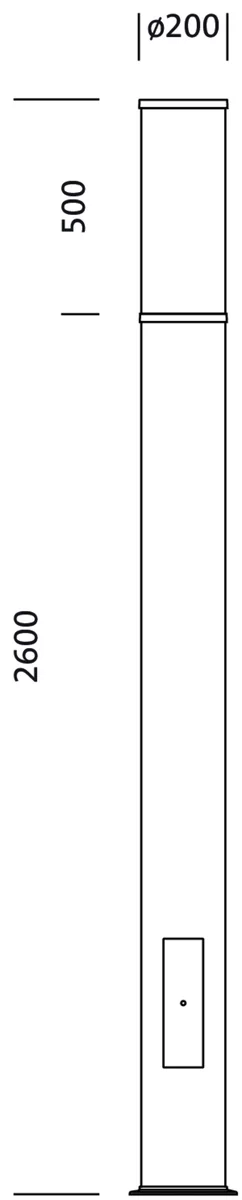

Dimensions, Weight

Length 2600mm
Diameter 200mm
Weight 21.0kg

Service life

Rated service life 100000h at AT = 25°C

Product type
light pillar

Product name
City-Light 260 iQ

Order No.
5XA5295MF14H

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent, partly coated

Light distribution
S120002

Beam angle
wide distribution

Symmetry
asymmetric distribution

Lamps
with LED

Rated values
1540lm | 11.8W | 130.5lm/W (begin service life);
end service life: 1540lm | 12.1W;
at 50% lumin. flux: 770lm | 6W | 128.3lm/W

Colour temperature
2700K

Colour rendering index
CRI > 70

Light colour
727

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 1540lm | 11.8W | 130.5lm/W | 2700K

end service life

LS 1: 12.1W


further light settings possible

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP65

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

luminaire housing
extruded aluminium section, coated, SITECO metallic grey (DB 702S), cylindrical

Module 540 iQ-SR
matt traffic white (RAL 9016)

Cover
cover of PMMA

Connection
terminal, 6-pole, max. 2.5mm², solid wire, fine wire

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Length
2600mm

Diameter
200mm

Weight
21.0kg

Rated service life
100000h at AT = 25°C
