: 5XA779110000BA

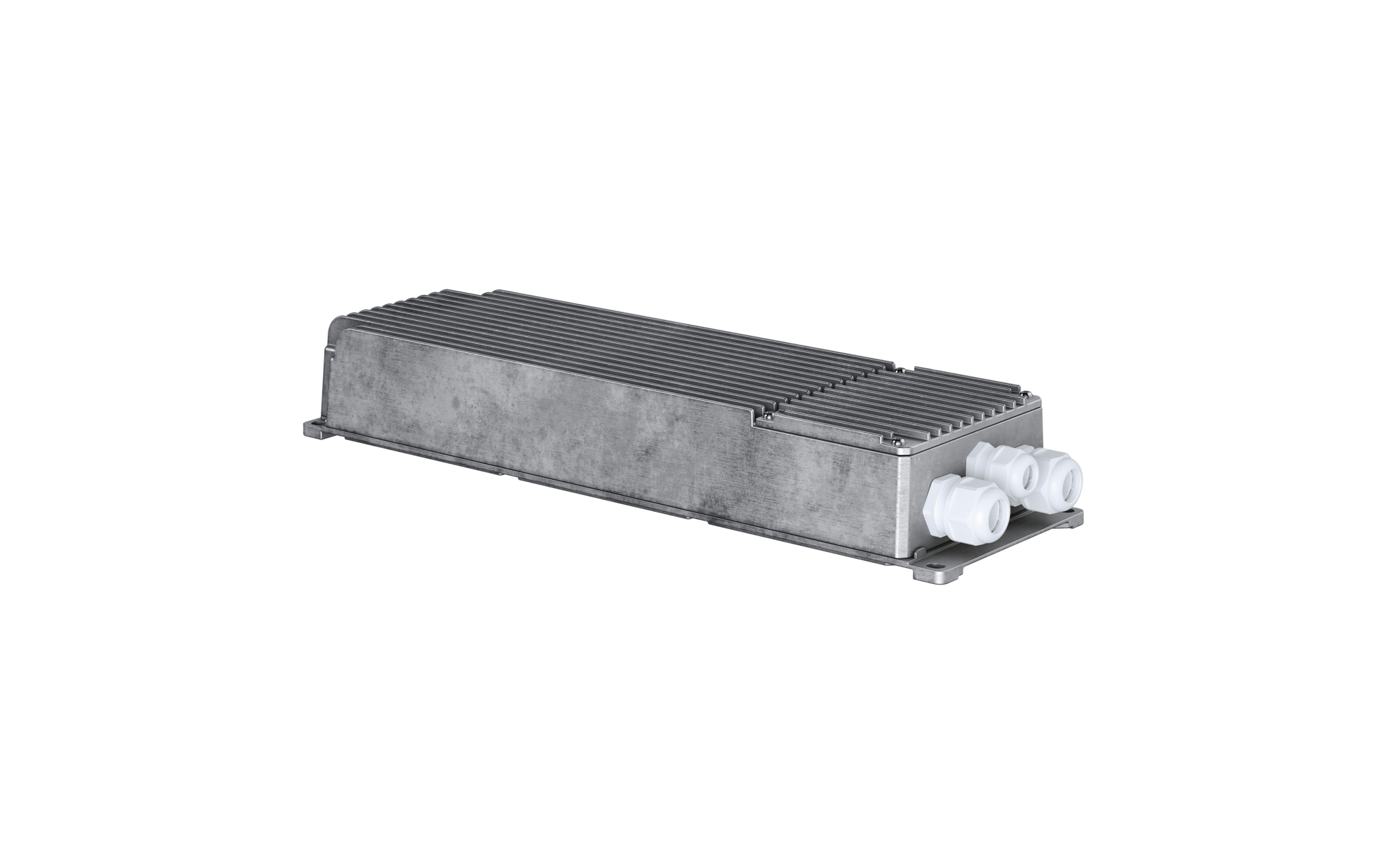

Article ECG unit
Product name Floodlight FL 11 maxi
Colour temperature 4000K
Service life 100000h (L96/B10) at AT = 10°C, 50000h (L95/B10) at AT = 25°C
Protection rating IP66
Weight 5.6kg

Floodlight FL 11 maxi ECG unit; colour temperature: 4000K, brightness control: DALI (with two DALI addresses); with terminal, 8-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, surge voltage resistance: line to ground: 10kV, dimming range 10..100%, LED unit replaceable on mast without ESD environment, LED unit replaceable, dustproof LED unit, LED unit replaceable without ESD environment, no afterglow with DALI off / DMX off command, ECG replaceable separately; ECG unit ECG unit of diecast aluminium, uncoated natural; length: 500mm / width: 152mm / height: 77mm; uncoated, natural, equipment: Longlife, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, only for outdoor installations, rated ambient temperature 10°C, permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece

Downloads


Key data

Product type ECG unit
Product name Floodlight FL 11 maxi
Order No. 5XA779110000BA


Lamps

Colour temperature 4000K


Operating device

Control DALI (2 addresses)


Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Temperature range (operation) -40..+30°C
Supplement only for outdoor installations, rated ambient temperature 10°C
Certification, designation CE, ENEC, VDE


Material, Colour

ECG unit diecast aluminium, uncoated, natural


Electrical connection

Connection terminal, 8-pole, max. 2.5mm²
Nominal voltage 220..240V/380..400V, AC
Surge voltage resistance line to ground: 10kV


Dimensions, Weight

Length 500mm
Width 152mm
Height 77mm
Weight 5.6kg


Light emission

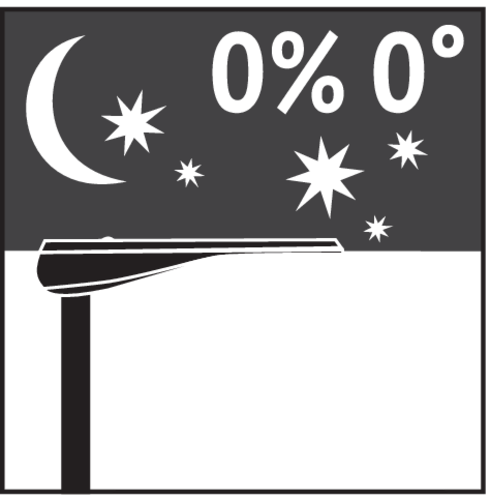

Light emission 0% at 0° inclination


Service life

Rated service life 50000h (L95/B10) at AT = 25°C, 100000h (L96/B10) at AT = 10°C

Product type
ECG unit

Product name
Floodlight FL 11 maxi

Order No.
5XA779110000BA

Colour temperature
4000K

Control
DALI (2 addresses)

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-40..+30°C

Supplement
only for outdoor installations, rated ambient temperature 10°C

Certification, designation
CE, ENEC, VDE

ECG unit
diecast aluminium, uncoated, natural

Connection
terminal, 8-pole, max. 2.5mm²

Nominal voltage
220..240V/380..400V, AC

Surge voltage resistance
line to ground: 10kV

Length
500mm

Width
152mm

Height
77mm

Weight
5.6kg

Light emission
0% at 0° inclination

Rated service life
50000h (L95/B10) at AT = 25°C, 100000h (L96/B10) at AT = 10°C
