5XA779119T01GB
Article floodlight

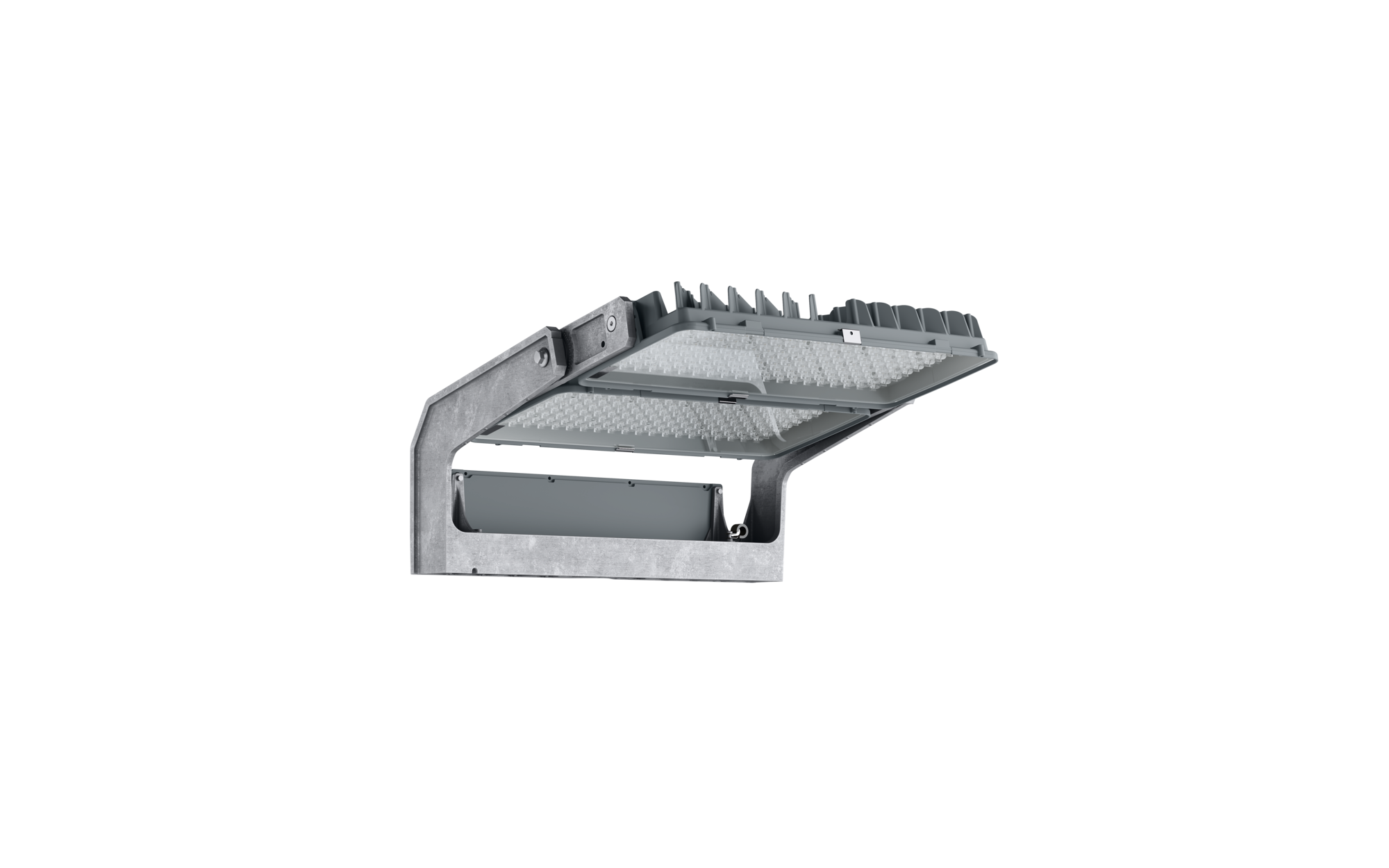

Product name Floodlight FL 11 maxi
Lamp LED
Rated luminous flux 155560lm
Luminous efficacy 131.6lm/W
Colour temperature 5700K
Colour rendering CRI > 70
Pnom 1182.1W
Protection rating IP66
Impact resistance IK07
Weight 24.4kg

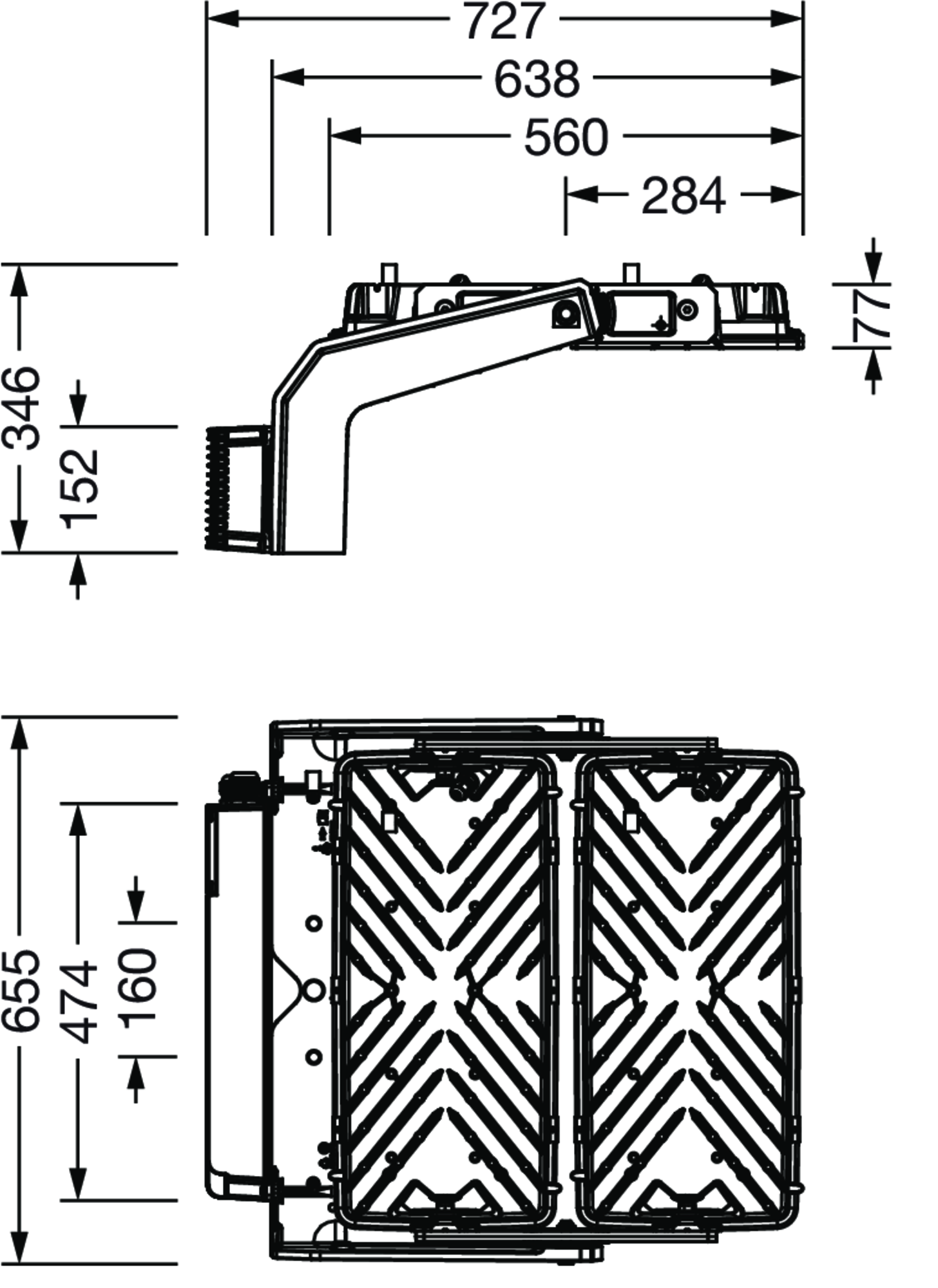

Floodlight FL 11 maxi floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: A330001, asymmetric direct distribution, rated values: 155.560lm | 1.182,1W | 131,6lm/W, colour temperature: 5700K, colour rendering: CRI > 70, light colour: 757, light setting 1 (further light settings possible): 100% | 155.560lm | 1.182,1W | 131,6lm/W | 5.700Kdimming curve linear; brightness control: DALI 2; mains connection: 200..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, electrical connection: terminal, 5-pole, max. 2.5mm², solid wire, fine wire, ECG replaceable separately, LED unit replaceable without ESD environment, dimming range 10..100%; floodlight with 2x LED unit of diecast aluminium, grey; length: 728mm / width: 655mm / height: 346mm; mounting bracket, of diecast aluminium, uncoated, ECG unit, of diecast aluminium, coated, grey, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE, UKCA; ball protection: ball impact resistant, impact resistance: IK07; only for outdoor installations in the designated locations, permissible operating ambient temperature: -45..+55°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
Downloads
Technical product information
Data for applications
