: 5XA779120000BA

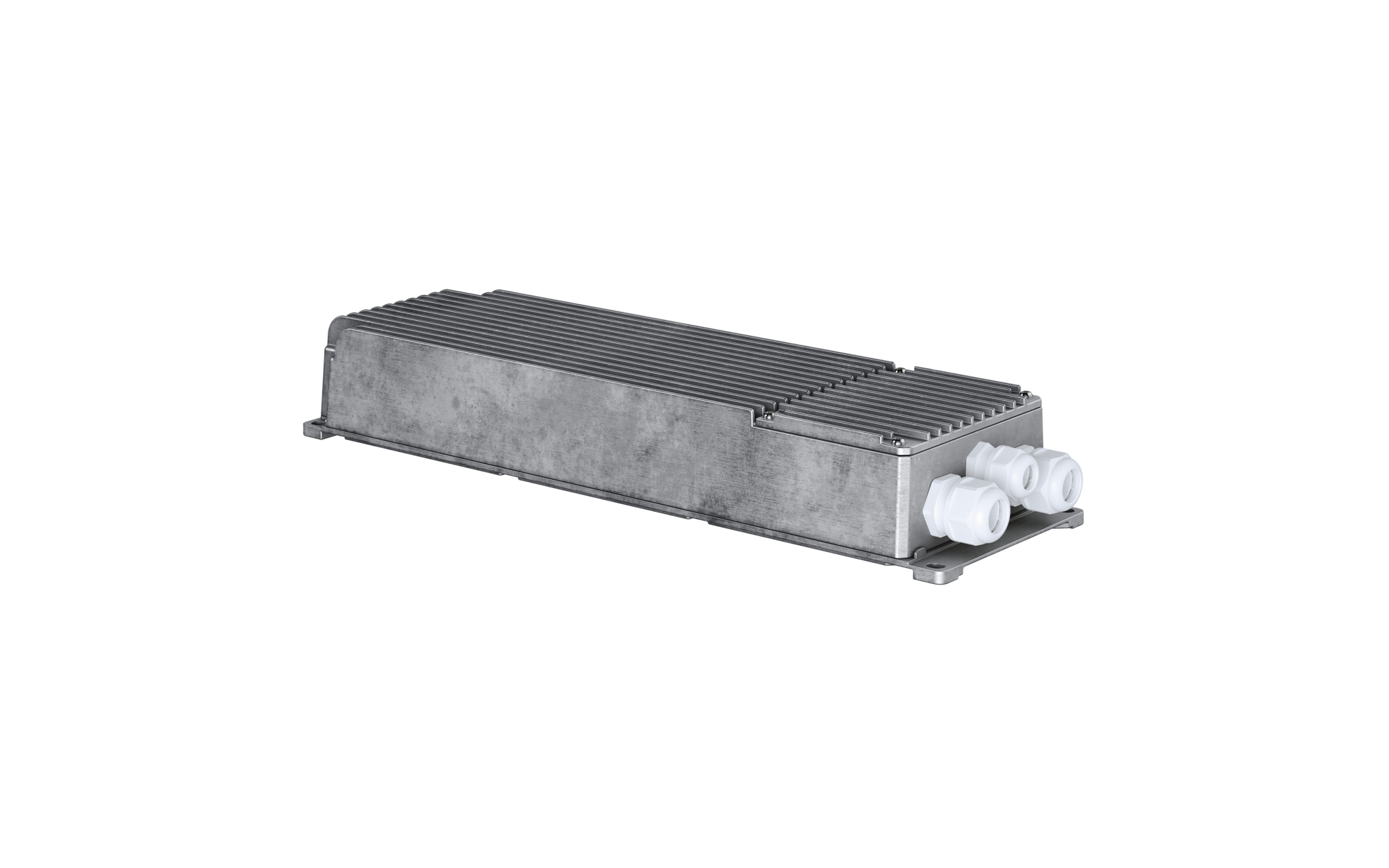

Article ECG unit
Product name Floodlight FL 11 maxi pro
Service life 100000h (L96/B10) at AT = 10°C, 50000h (L95/B10) at AT = 25°C
Weight 5.6kg

Floodlight FL 11 maxi pro ECG unit; brightness control: DALI (with two DALI addresses); with terminal, 8-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, surge voltage resistance: line to ground: 10kV, dimming range 10..100%, LED unit replaceable on mast without ESD environment, LED unit replaceable, dustproof LED unit, LED unit replaceable without ESD environment, no afterglow with DALI off / DMX off command, ECG replaceable separately; ECG unit ECG unit of diecast aluminium, uncoated natural; length: 500mm / width: 152mm / height: 77mm; uncoated, natural, equipment: Longlife, insulation class (complete): insulation class I (protective earthing); certification: CE; permissible storage temperature: -40..+85°Cpackaging unit: 1 piece

Downloads


Key data

Product type ECG unit
Product name Floodlight FL 11 maxi pro
Order No. 5XA779120000BA


Control


Certificates, Standards

Insulation class insulation class I (protective earthing)
Certification, designation CE


Material, Colour

ECG unit diecast aluminium, uncoated, natural


Electrical connection

Connection terminal, 8-pole, max. 2.5mm²
Nominal voltage 220..240V/380..400V, AC
Surge voltage resistance line to ground: 10kV


Dimensions, Weight

Length 500mm
Width 152mm
Height 77mm
Weight 5.6kg


Service life

Rated service life 50000h (L95/B10) at AT = 25°C, 100000h (L96/B10) at AT = 10°C

Product type
ECG unit

Product name
Floodlight FL 11 maxi pro

Order No.
5XA779120000BA

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

ECG unit
diecast aluminium, uncoated, natural

Connection
terminal, 8-pole, max. 2.5mm²

Nominal voltage
220..240V/380..400V, AC

Surge voltage resistance
line to ground: 10kV

Length
500mm

Width
152mm

Height
77mm

Weight
5.6kg

Rated service life
50000h (L95/B10) at AT = 25°C, 100000h (L96/B10) at AT = 10°C
