5XA779220000AA

: 5XA779220000AA

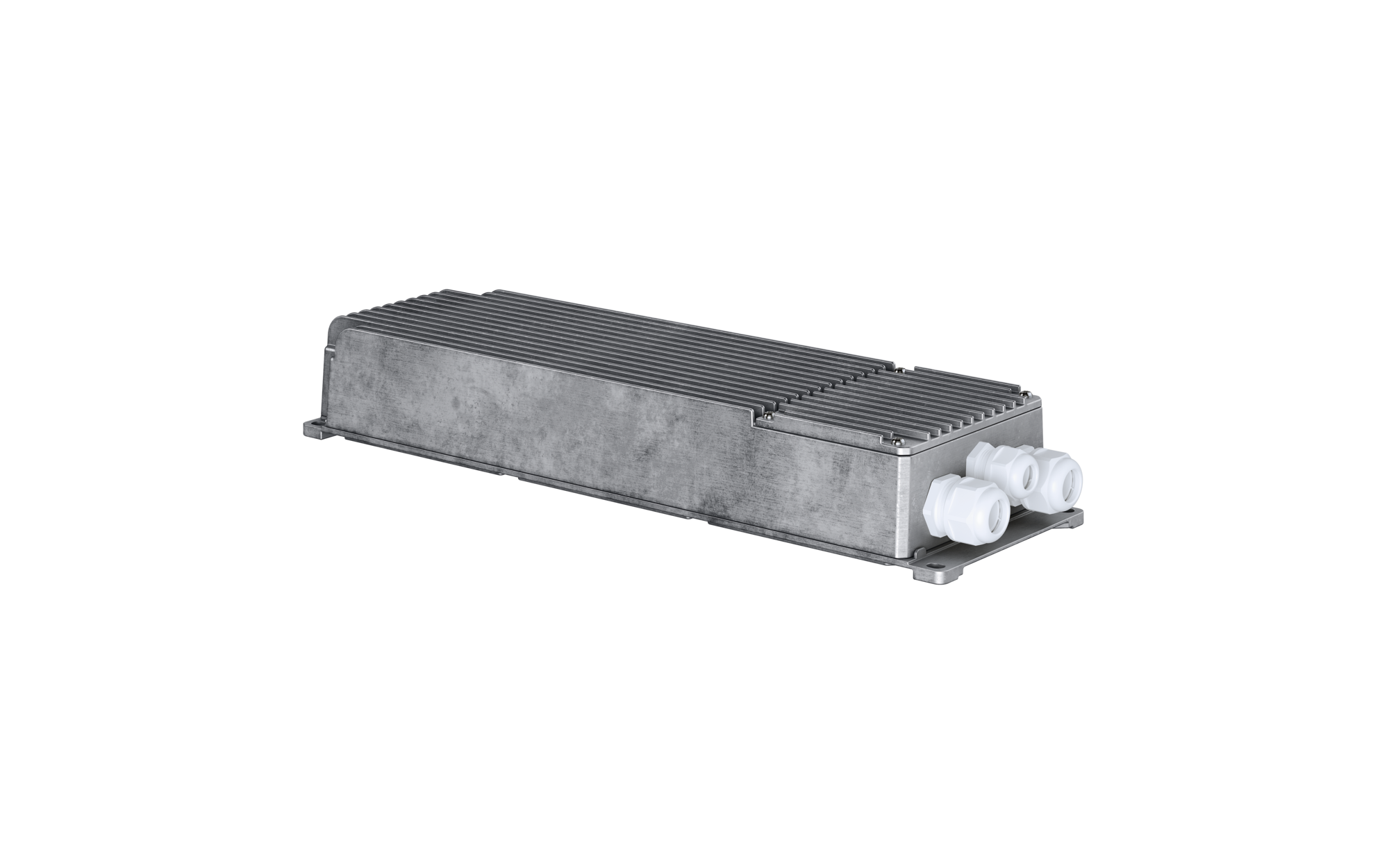

Article ECG unit
Product name Floodlight FL 11 maxi pro
Weight 5.6kg

Floodlight FL 11 maxi pro ECG unit; brightness control: DMX+RDM; with terminal, 8-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, ECG unit ECG unit of diecast aluminium, uncoated natural; length: 500mm / width: 152mm / height: 77mm; equipment: Power, insulation class (complete): insulation class I (protective earthing); certification: CE; permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece

Downloads

Key data

Product type ECG unit
Product name Floodlight FL 11 maxi pro
Order No. 5XA779220000AA

Control

Certificates, Standards

Insulation class insulation class I (protective earthing)
Temperature range (operation) -40..+30°C
Certification, designation CE

Material, Colour

ECG unit diecast aluminium, uncoated, natural

Electrical connection

Connection terminal, 8-pole, max. 2.5mm²
Nominal voltage 220..240V/380..400V, 50/60Hz, AC
Surge voltage resistance line to ground: 10kV

Dimensions, Weight

Length 500mm
Width 152mm
Height 77mm
Weight 5.6kg

Product type
ECG unit

Product name
Floodlight FL 11 maxi pro

Order No.
5XA779220000AA

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-40..+30°C

Certification, designation
CE

ECG unit
diecast aluminium, uncoated, natural

Connection
terminal, 8-pole, max. 2.5mm²

Nominal voltage
220..240V/380..400V, 50/60Hz, AC

Surge voltage resistance
line to ground: 10kV

Length
500mm

Width
152mm

Height
77mm

Weight
5.6kg
